Pramet C6-DRSNR-45065-12 7809794 Turning Toolholder Polygon Shank Coupling ISO D - External
MODEL 7809794
$335.26 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Clamping Type Code (MTP)
System D

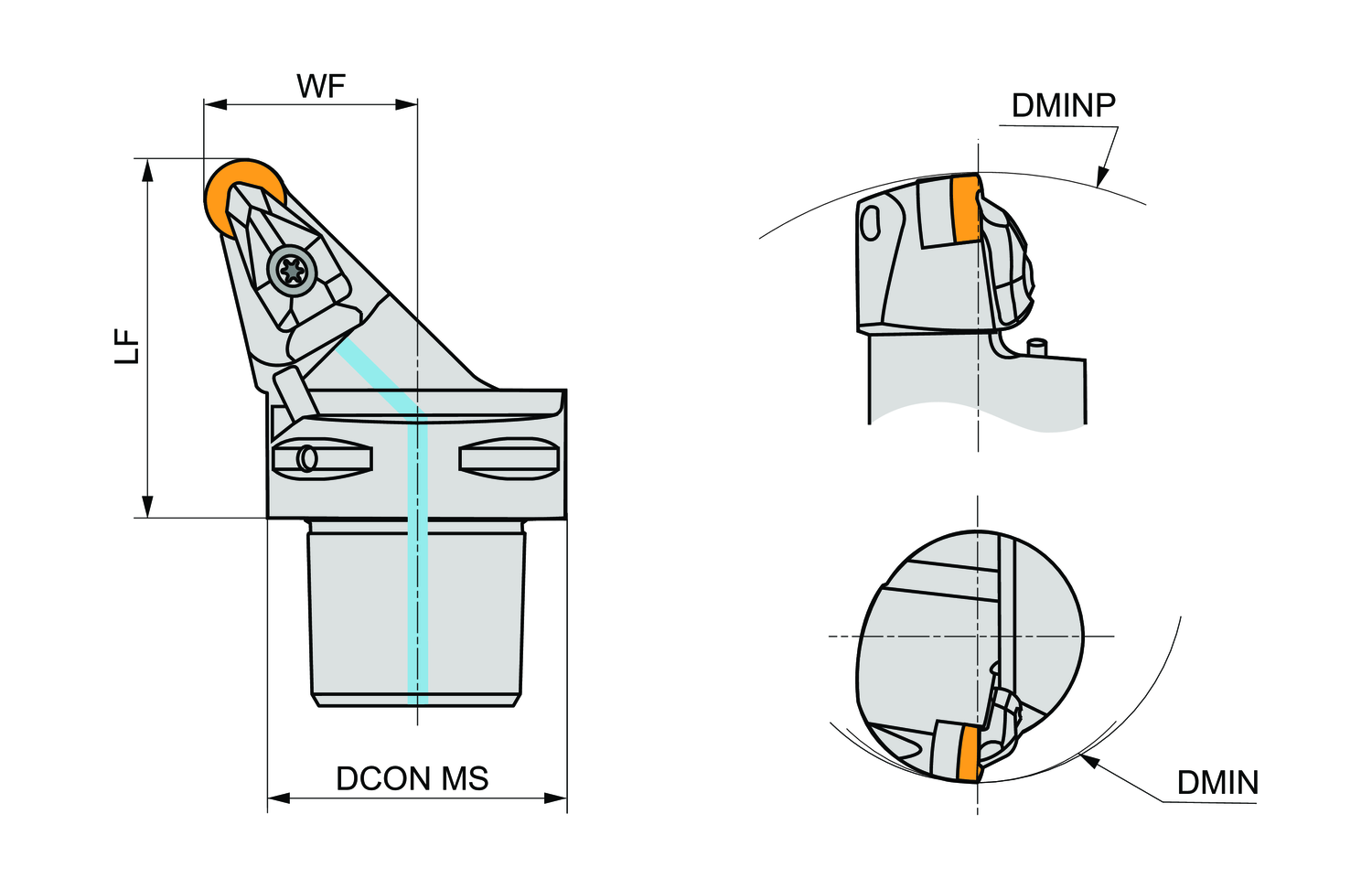

Connection diameter - inch (DCON MS)
2.48
Connection diameter - millimeter (DCON MS)
63
Coolant supply property (CSP)
1
Direction of tool
Right
Functional length - inch (LF)
2.559
Functional length - millimeter (LF)
65
Functional width - inch (WF)
1.772
Functional width - millimeter (WF)
45
Inclination angle (LAMS)
-6
Minimum bore diameter - inch (DMIN)
4.331
Minimum bore diameter - millimeter (DMIN)
110
Minimum bore diameter Perpendicular - millimeter (DMINP)
190
Ortogonal rake angle (GAMO)
-6
Double clamp turning tool for holding a round negative insert with a diameter of 12.7mm, 4.76mm thick (ISO designation RN.. 120400 ), right hand side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C6, with 45mm funtional width and 65mm protruding length for taper turning, face turning without shoulder and longitudinal turning without shoulder
