Pramet DCBNR 3232 P 19 7028409 Turning Toolholder ISO D
MODEL 7028409
$161.30 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Clamping Type Code (MTP)
System D
Direction of tool
Right

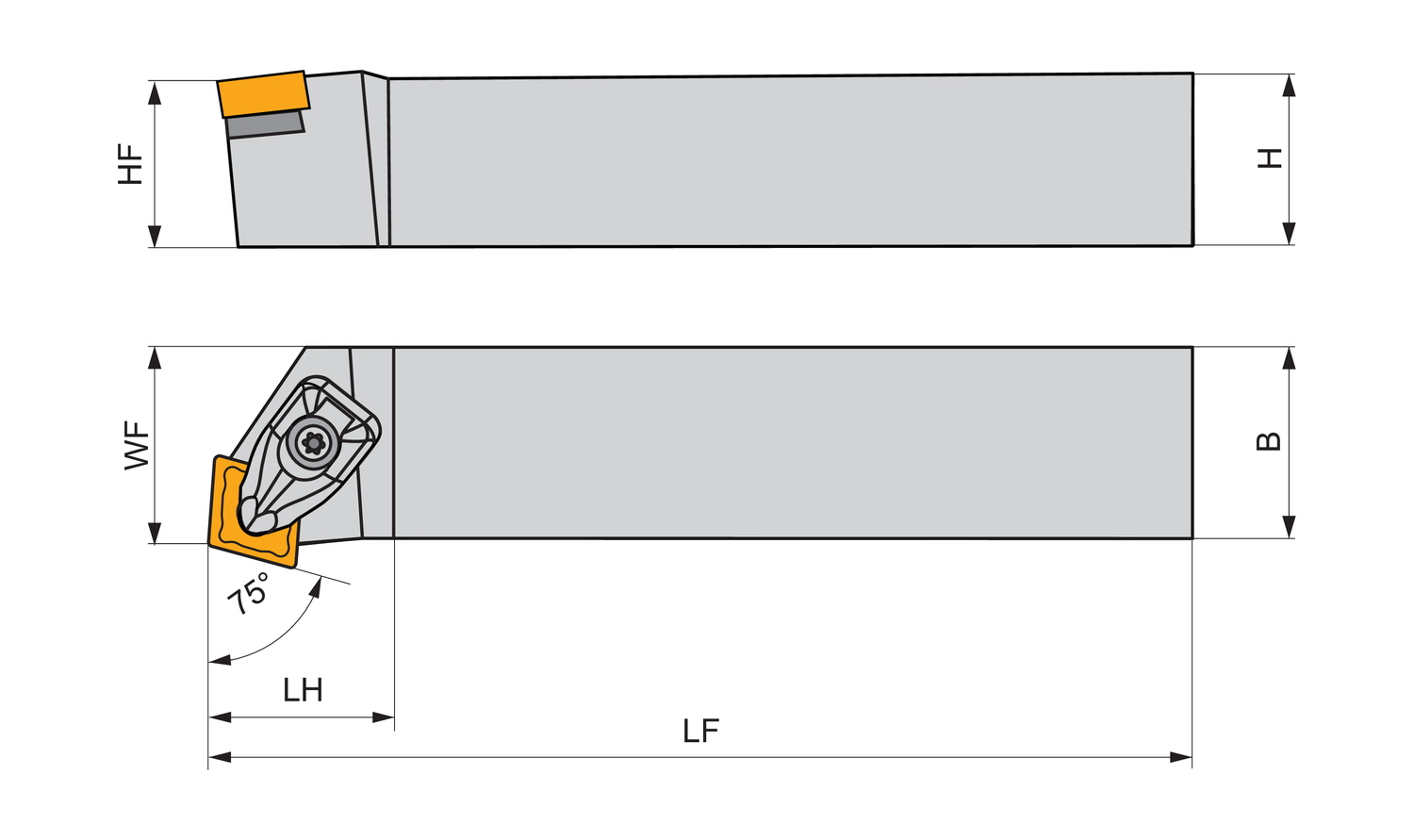

Functional height - inch (HF)
1.26
Functional height - millimeter (HF)
32
Functional length - inch (LF)
6.693
Functional length - millimeter (LF)
170
Functional width - inch (WF)
1.063
Functional width - millimeter (WF)
27
Hand (Cutting direction)
Right
Head length - inch (LH)
1.815
Head length - millimeter (LH)
46.1
Inclination angle (LAMS)
-6
Ortogonal rake angle (GAMO)
-6
Shank height - inch (H)
1.26
Shank height - millimeter (H)
32
Shank width - inch (B)
1.26
Shank width - millimeter (B)
32
Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 19.05mm, 6.35mm thick (ISO designation CN.. 1906.. ), right hand 75° side cutting with straight shank, 32mm tool height x 32mm width x 170mm long for chamfering, taper turning and longitudinal turning without shoulder
