Pramet DCKNR 16 4D turning toolholder, ISO D, right hand, 75° cutting edge angle, 1 in shank height, 1 in shank width, 6 in functional length. For CN.. 43. negative inserts, face turning without shoulder. Article 6788545.
MODEL 6788545
$120.57 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

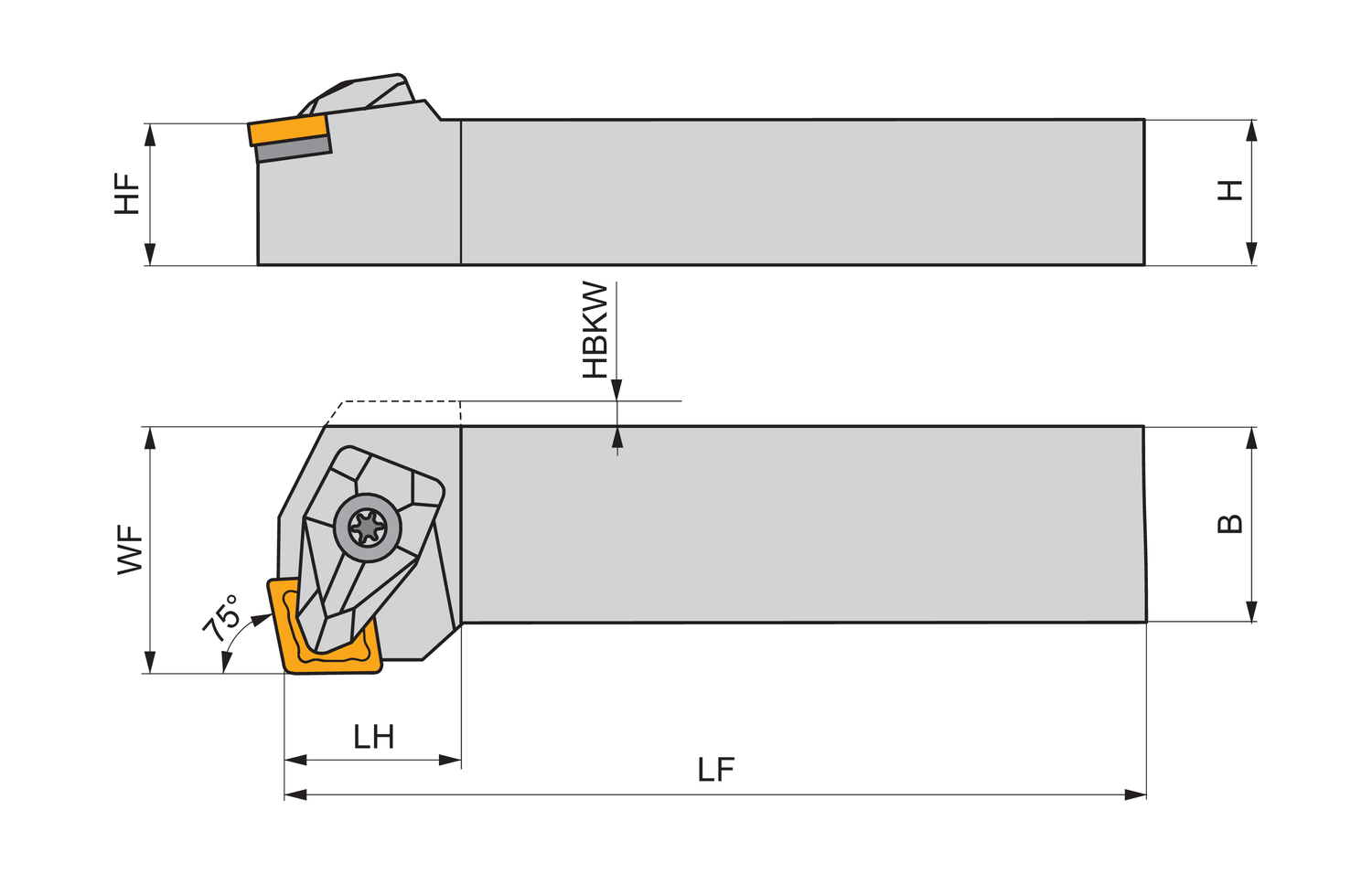

Clamping Type Code (MTP)
System D
Functional height - inch (HF)
1
Functional length - inch (LF)
0.236
Functional length - millimeter (LF)
6
Functional width - inch (WF)
1.25
Head length - inch (LH)
1.3
Inclination angle (LAMS)
-6
Ortogonal rake angle (GAMO)
-6
Shank width - inch (B)
1
Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 1/2'', 3/16'' thick (ANSI designation CN.. 43. ), right hand 75° end cutting with off-set shank, 1'' tool height x 1'' width x 6'' long for face turning without shoulder
