Pramet DCRNL 12 4B 6788532 Turning Toolholder ISO D
MODEL 6788532
$113.37 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

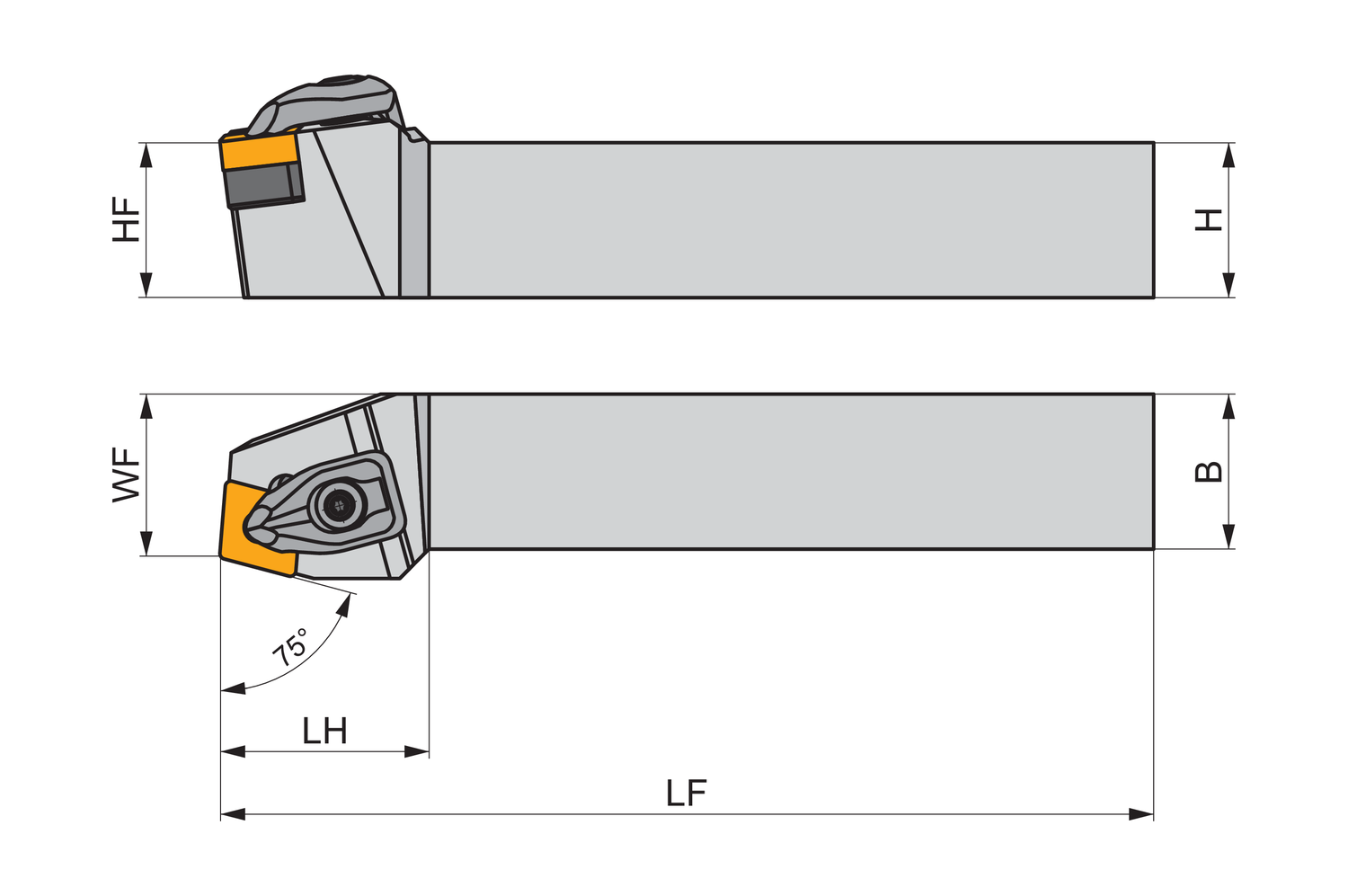

Functional height - inch (HF)
0.75
Functional length - inch (LF)
4.5
Functional width - inch (WF)
0.855
Head length - inch (LH)
1.35
Inclination angle (LAMS)
-6
Ortogonal rake angle (GAMO)
-6
Shank width - inch (B)
0.75
Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 1/2'', 3/16'' thick (ANSI designation CN.. 43. ), left hand 75° side cutting with off-set shank, 3/4'' tool height x 3/4'' width x 4.1/2'' long for chamfering, taper turning and longitudinal turning without shoulder
