Pramet DCRNL 20 4D Turning Toolholder, ISO D — 6 in functional length. Article 6788534. Genuine Pramet turning toolholder for Pramet indexable tooling, manufacturer article number 6788534.
MODEL 6788534
$162.87 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

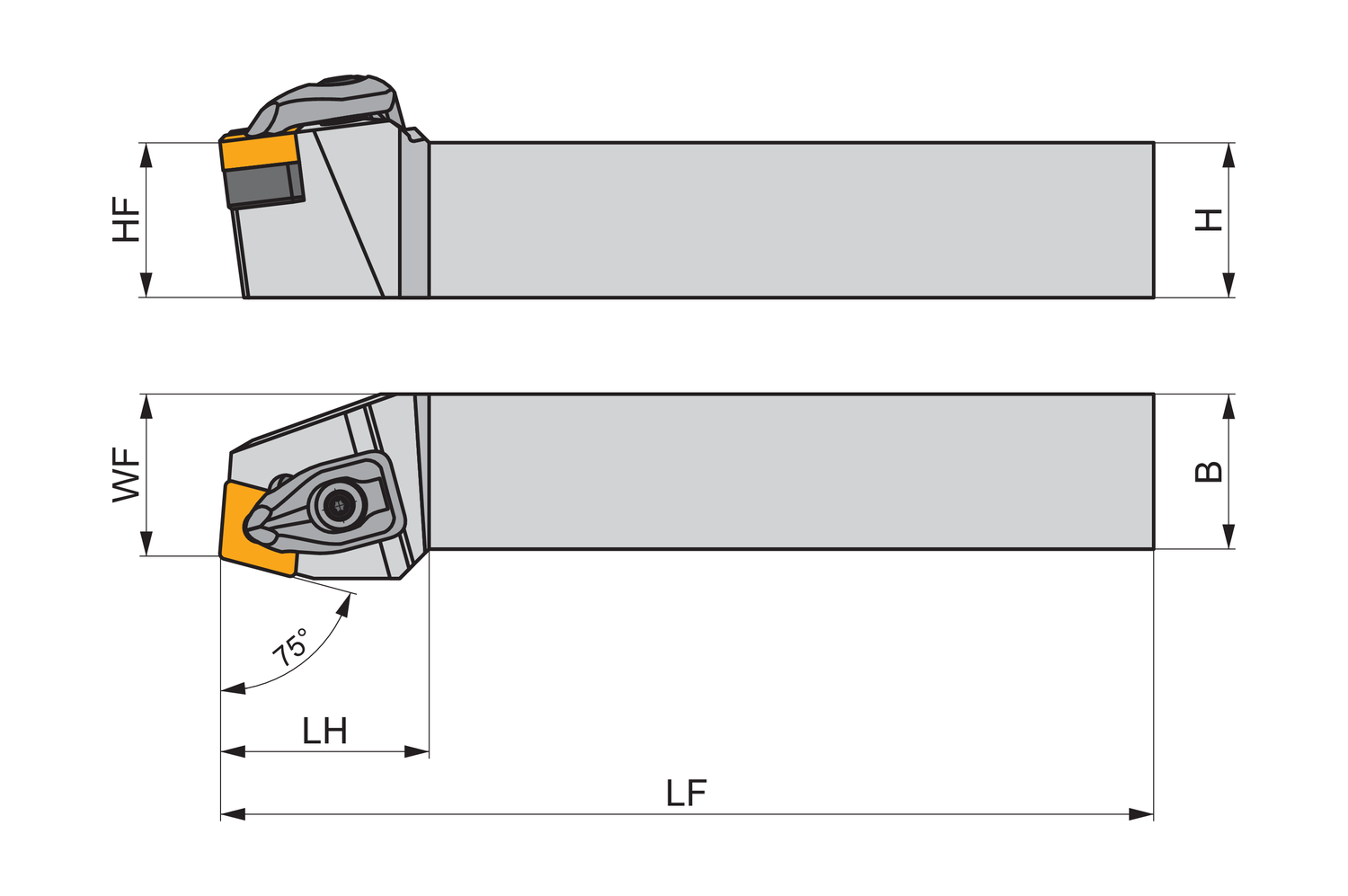

Functional height - inch (HF)
1.25
Functional length - inch (LF)
6
Functional width - inch (WF)
1.292
Head length - inch (LH)
1.35
Inclination angle (LAMS)
-6
Ortogonal rake angle (GAMO)
-6
Shank width - inch (B)
1.25
Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 1/2'', 3/16'' thick (ANSI designation CN.. 43. ), left hand 75° side cutting with off-set shank, 1.1/4'' tool height x 1.1/4'' width x 6'' long for chamfering, taper turning and longitudinal turning without shoulder
