Pramet PRSCR 3232 P 20 6757174 Turning Toolholder ISO P
MODEL 6757174
$143.83 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Clamping Type Code (MTP)
Hole clamping
Direction of tool
Right

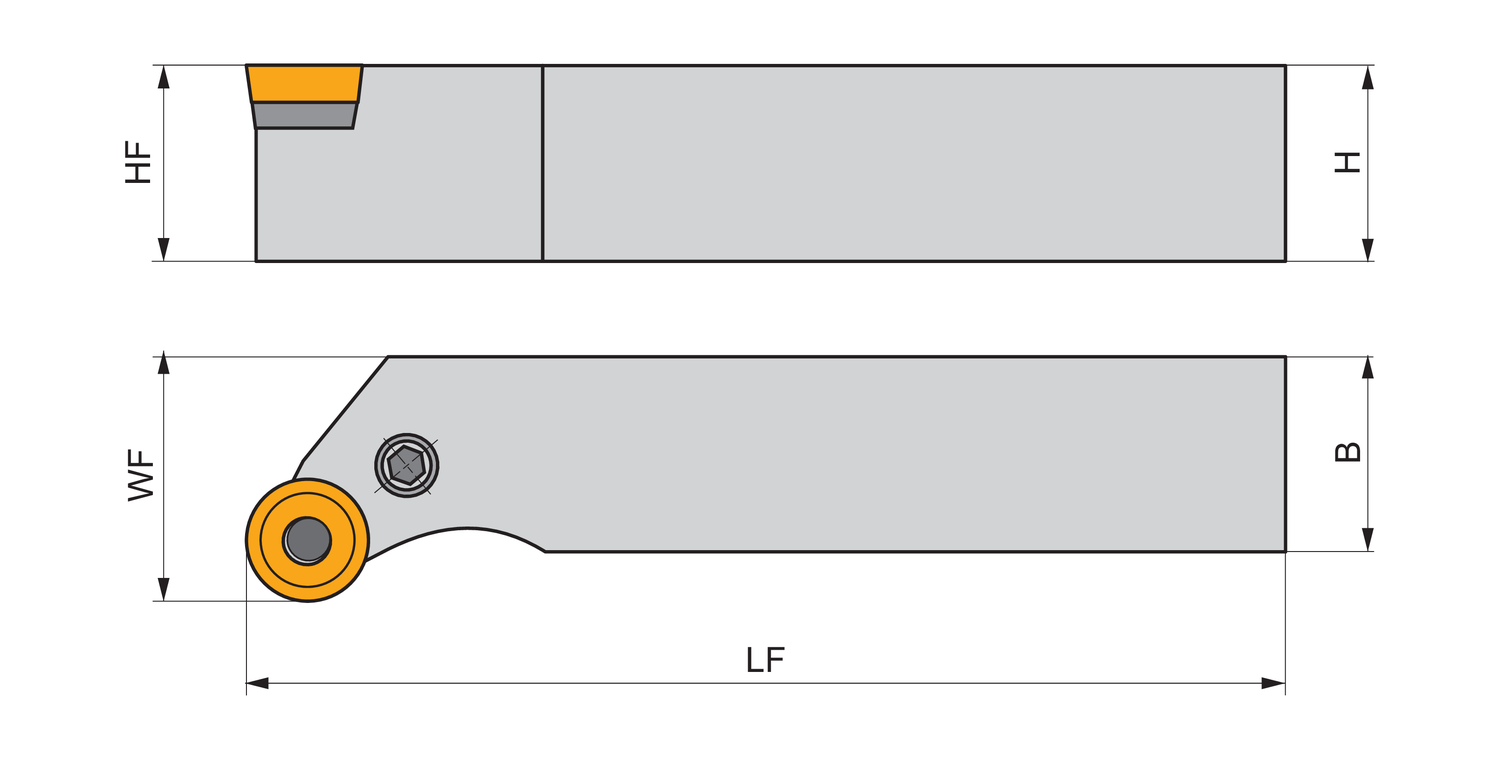

Functional height - inch (HF)
1.26
Functional height - millimeter (HF)
32
Functional length - inch (LF)
6.693
Functional length - millimeter (LF)
170
Functional width - inch (WF)
1.575
Functional width - millimeter (WF)
40
Ortogonal rake angle (GAMO)
0
Shank height - inch (H)
1.26
Shank height - millimeter (H)
32
Shank width - inch (B)
1.26
Shank width - millimeter (B)
32
Lever lock turning tool for holding a round positive insert with a diameter of 20mm, 6.35mm thick (ISO designation RCMX 2006MO ), right hand side cutting with off-set shank, 32mm tool height x 32mm width x 170mm long for taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder
