Pramet GL2-D200M02-PR:G8330 double-ended parting and grooving insert, 0.984 in (25 mm) long, 0.079 in (2 mm) cutting width, 0.008 in (0.2 mm) corner radius. PR geometry with negative T-land for difficult grooving and parting-off. G8330 PVD-coated fine-grained WC-Co carbide for steel and cast iron. Article 7802910.
MODEL 7802910
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$27.50 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
PR
Coating
G8330
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Very positive effect on tool life - cooling is recommended

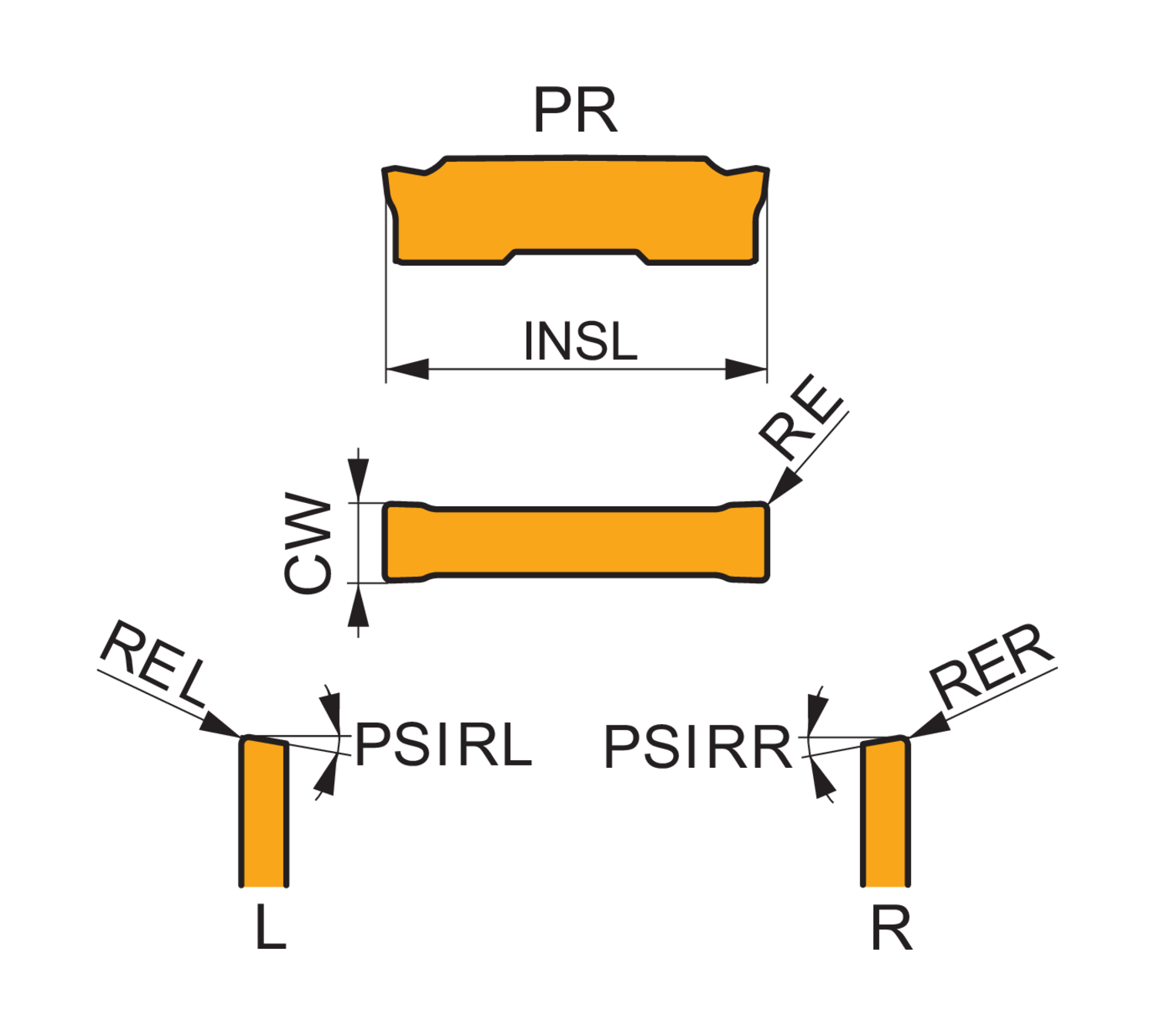

Corner radius - inch (RE)
0.008
Corner radius - millimeter (RE)
0.2
Cutting width - inch (CW)
0.079
Cutting width - millimeter (CW)
2
Cutting width lower tolerance - inch (CWTOLL)
-0.002
Cutting width lower tolerance - millimeter (CWTOLL)
-0.05
Cutting width upper tolerance - inch (CWTOLU)
0.002
Cutting width upper tolerance - millimeter (CWTOLU)
0.05
Insert length - inch (INSL)
0.984
Insert length - millimeter (INSL)
25
Double ended parting and grooving insert, 25mm long with a 2mm cutting width and 0.2mm corner radii, a cutting width tolerance of ± 0.05mm and chip-breaker PR with direct pressed edge design, grade G8330 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P40 for machining of steel in combination with PRAMET GL2..SF(RL) EXT and GL2-S.. B parting and grooving tools
