Pramet LCMF 031604-M:T8330 6754269 Turning Insert - Parting And Grooving
MODEL 6754269
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$27.84 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
M
Coating
T8330
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Very positive effect on tool life - cooling is recommended

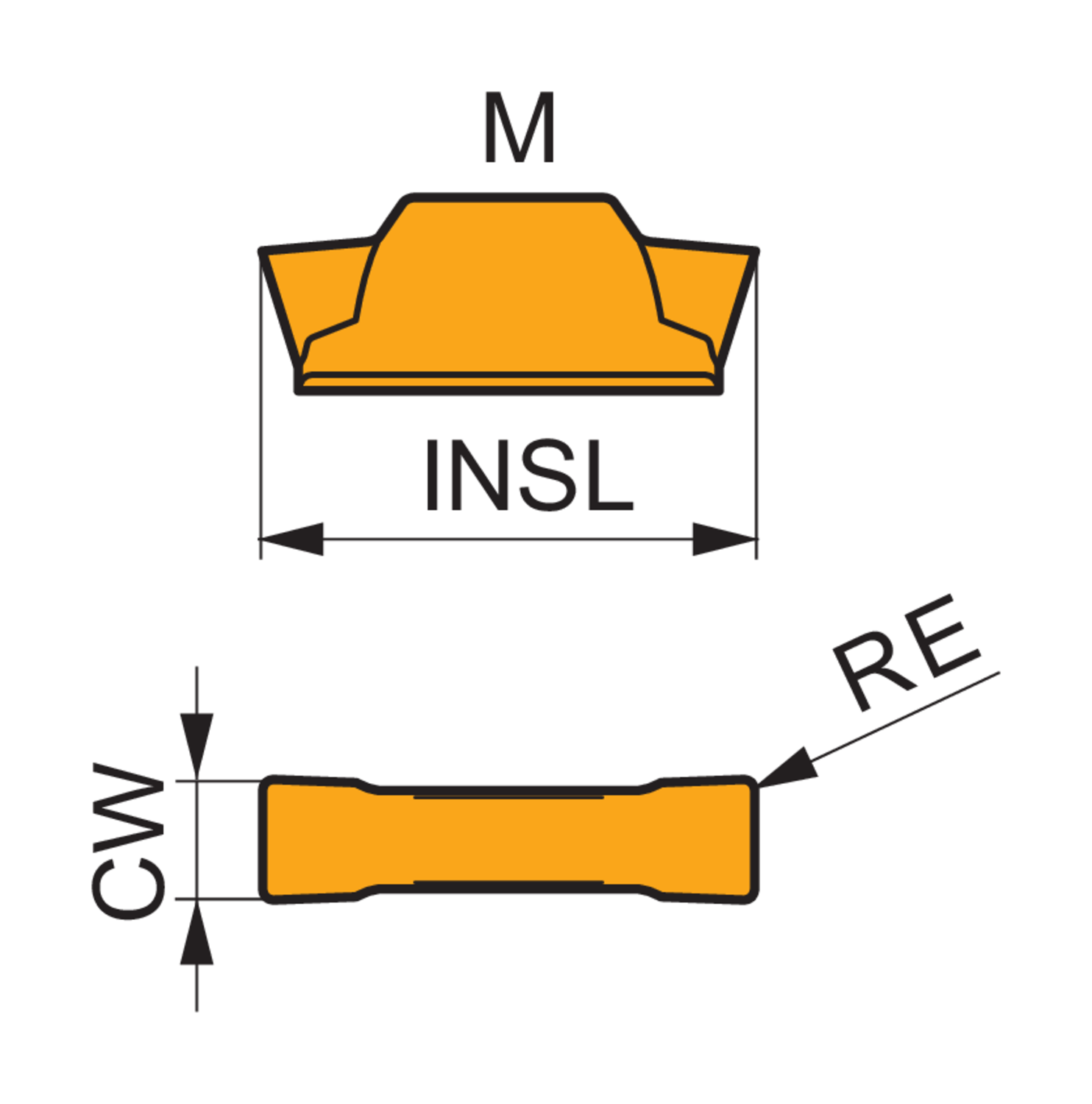

Corner radius - inch (RE)
0.016
Corner radius - millimeter (RE)
0.4
Cutting depth maximum - inch (CDX)
0.118
Cutting depth maximum - millimeter (CDX)
3
Cutting depth minimum - millimeter (CDN)
0.3
Cutting width - inch (CW)
0.118
Cutting width - millimeter (CW)
3
Cutting width lower tolerance - inch (CWTOLL)
-0.002
Cutting width lower tolerance - millimeter (CWTOLL)
-0.05
Cutting width upper tolerance - inch (CWTOLU)
0.002
Cutting width upper tolerance - millimeter (CWTOLU)
0.05
Feed maximal - millimeter
0.25
Feed minimal - millimeter
0.1
Feed_MAX_IMP_NUM
0.01
Feed_MIN_IMP_NUM
0.004
Insert length - inch (INSL)
0.646
Insert length - millimeter (INSL)
16.4
Insert shape code (SC)
L - rectangular
ISO_CuttingDepth_MIN_IMP_NUM
0.012
Double ended parting and grooving insert, 16.4mm long with a 3mm cutting width and 0.4mm corner radii, an accuracy according to tolerance class-M and chip-breaker M, grade T8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and K20-K40 for machining of steel and cast-iron in combination with PRAMET GF..(RL) 03, GG..(RL) 03 and XLCCN 0316 parting and grooving tools
