Image for Illustration purposes only. Actual product may vary
Pramet TN 16ERG55:T8030 6755522 Threading Insert External Partial Profile - 55° Whitworth Thread
MODEL 6755522
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$23.78 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(5 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
T8030
Coating property (CTP)
1
Cutting edge length - inch (L)
0.65
Cutting edge length - millimeter (L)
16.5
Inscribed circle diameter - inch (IC)
0.375
Inscribed circle diameter - millimeter (IC)
9.525
Insert shape code (SC)
T - triangular 60° included angle
Insert thickness - inch (S)
0.137
Insert thickness - millimeter (S)
3.47
Package Quantity
5
Profile distance ex - inch (PDX)
0.059
Profile distance ex - millimeter (PDX)
1.5
Profile distance ey - inch (PDY)
0.043
Profile distance ey - millimeter (PDY)
1.1
Thread pitch maximum - inch (TPX)
0.1181
Thread pitch maximum - millimeter (TPX)
3
Thread pitch minimum - inch (TPN)
0.0689
Thread pitch minimum - millimeter (TPN)
1.75
Thread type (TTP)
external
Threads per inch - maximum
14
Threads per inch - minimum
8

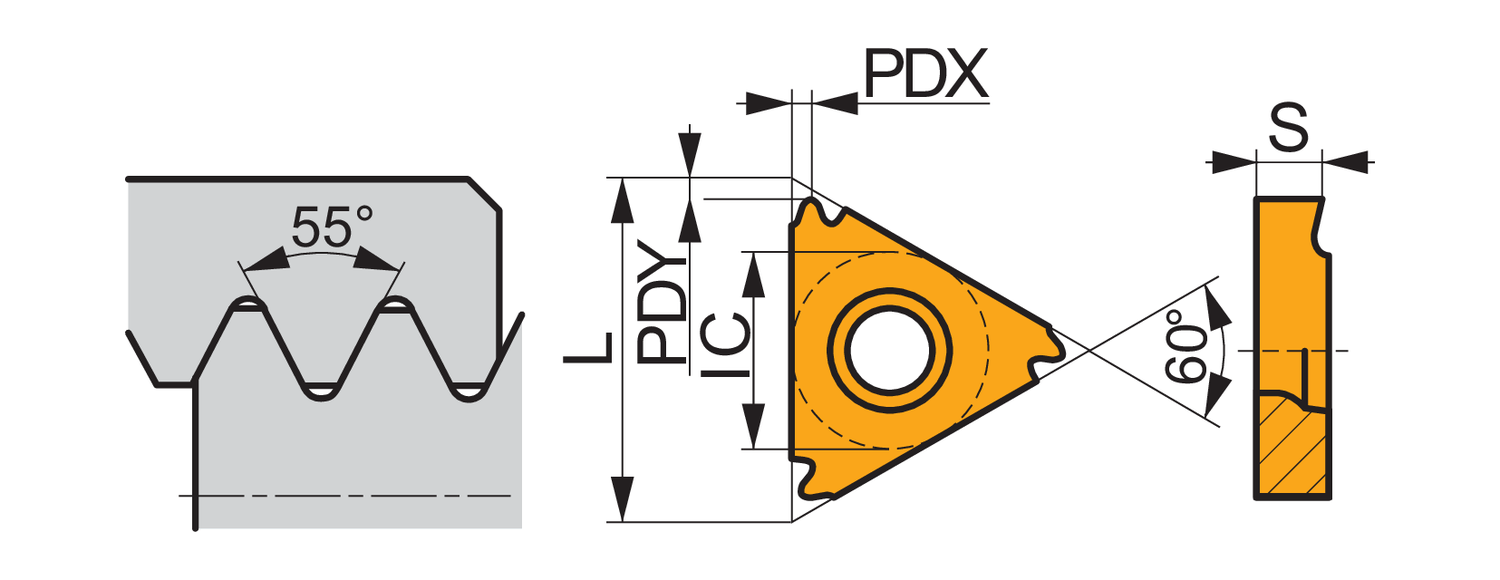

Single-sided threading insert, triangular with an inscribed circle diameter of 9.525mm, for right hand cutting partial profile of British Standard external threads with 14 to 8TPI, T8030 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron
