Pramet TN 16ERG60:T8030 external threading insert — TN 16ERG60, 60° partial profile, T8030 PVD-coated fine-grained WC-Co carbide grade, 0.375 in (9.525 mm) IC, 0.137 in (3.47 mm) thick, 1.75–3 mm pitch (14–8 TPI), right-hand cutting. Article 6755509.
MODEL 6755509
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$31.04 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(5 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
T8030
Coating property (CTP)
1
Cutting edge length - inch (L)
0.65
Cutting edge length - millimeter (L)
16.5
Inscribed circle diameter - inch (IC)
0.375
Inscribed circle diameter - millimeter (IC)
9.525
Insert shape code (SC)
T - triangular 60° included angle
Insert thickness - inch (S)
0.137
Insert thickness - millimeter (S)
3.47
Package Quantity
5

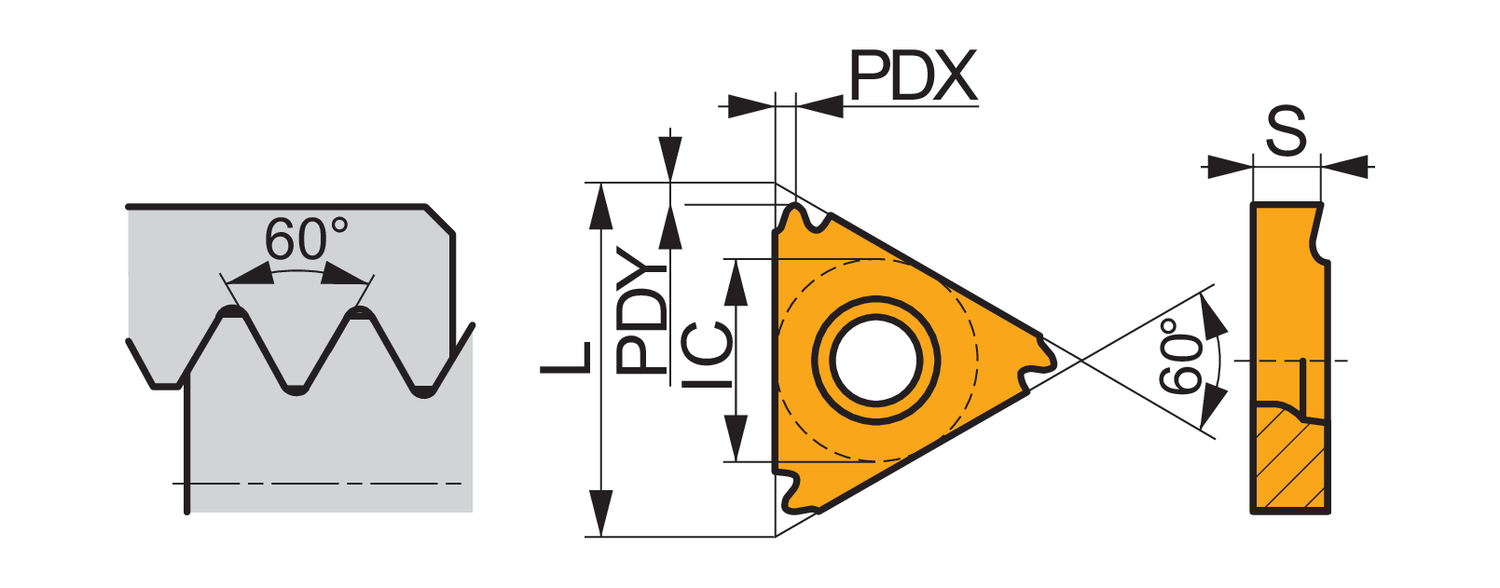

Profile distance ex - inch (PDX)
0.059
Profile distance ex - millimeter (PDX)
1.5
Profile distance ey - inch (PDY)
0.043
Profile distance ey - millimeter (PDY)
1.1
Thread pitch maximum - inch (TPX)
0.1181
Thread pitch maximum - millimeter (TPX)
3
Thread pitch minimum - inch (TPN)
0.0689
Thread pitch minimum - millimeter (TPN)
1.75
Thread type (TTP)
external
Threads per inch - maximum
14
Threads per inch - minimum
8
Single-sided threading insert, triangular with an inscribed circle diameter of 9.525mm, for right hand cutting partial profile of ISO-metric and UN external threads with 1.75 to 3mm pitch and 14 to 8TPI, T8030 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron
