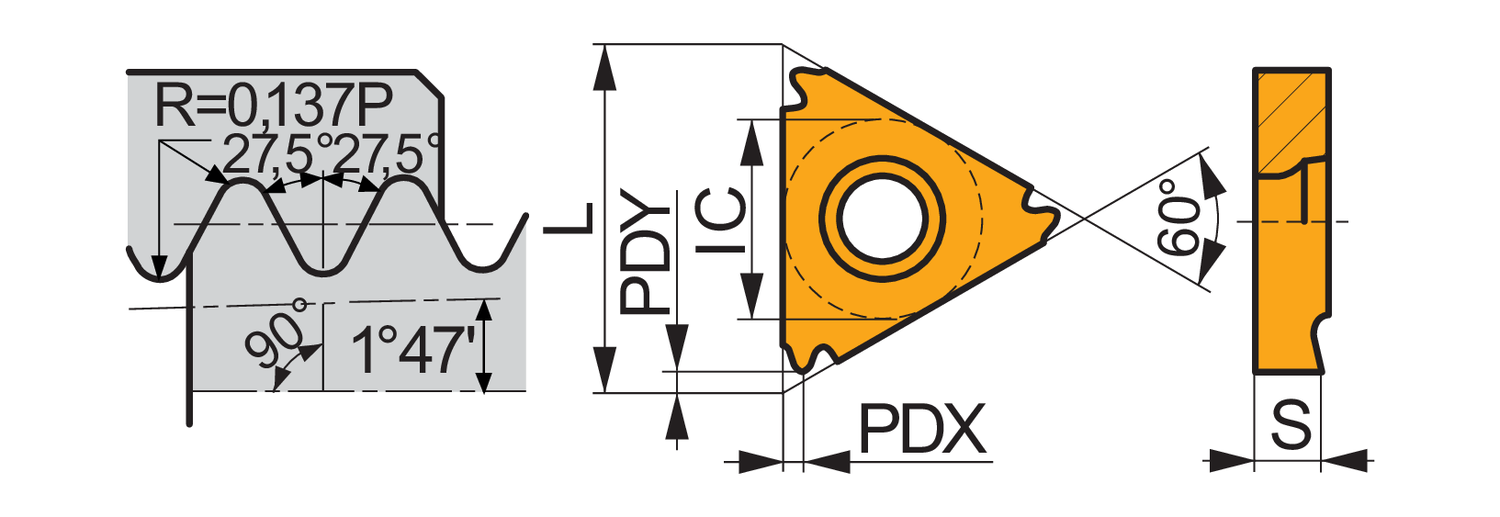

Pramet TN 16NR110BSPT:T8030 internal threading insert — TN 16NR110BSPT, BSPT full profile, 11 TPI, 0.375 in (9.525 mm) IC, 0.137 in (3.47 mm) thick, T8030 PVD grade for steel, stainless steel, and cast iron. Article 6755505.
MODEL 6755505
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$35.86 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(5 minimum)
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
T8030
Coating property (CTP)
1
Cutting edge length - inch (L)
0.65
Cutting edge length - millimeter (L)
16.5
Inscribed circle diameter - inch (IC)
0.375
Inscribed circle diameter - millimeter (IC)
9.525
Insert shape code (SC)
T - triangular 60° included angle
Insert thickness - inch (S)
0.137
Insert thickness - millimeter (S)
3.47
Package Quantity
5
Profile distance ex - inch (PDX)
0.059
Profile distance ex - millimeter (PDX)
1.5
Profile distance ey - inch (PDY)
0.047
Profile distance ey - millimeter (PDY)
1.2
Thread type (TTP)
internal
Threads per inch (TPI)
11
Single-sided threading insert, triangular with an inscribed circle diameter of 9.525mm, for right hand cutting of BSPT internal threads with 11TPI, T8030 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron
