Pramet GL2-S32MB 7803231 Double-Ended Parting-Off And Grooving Blade For GL Inserts
MODEL 7803231
$141.86 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

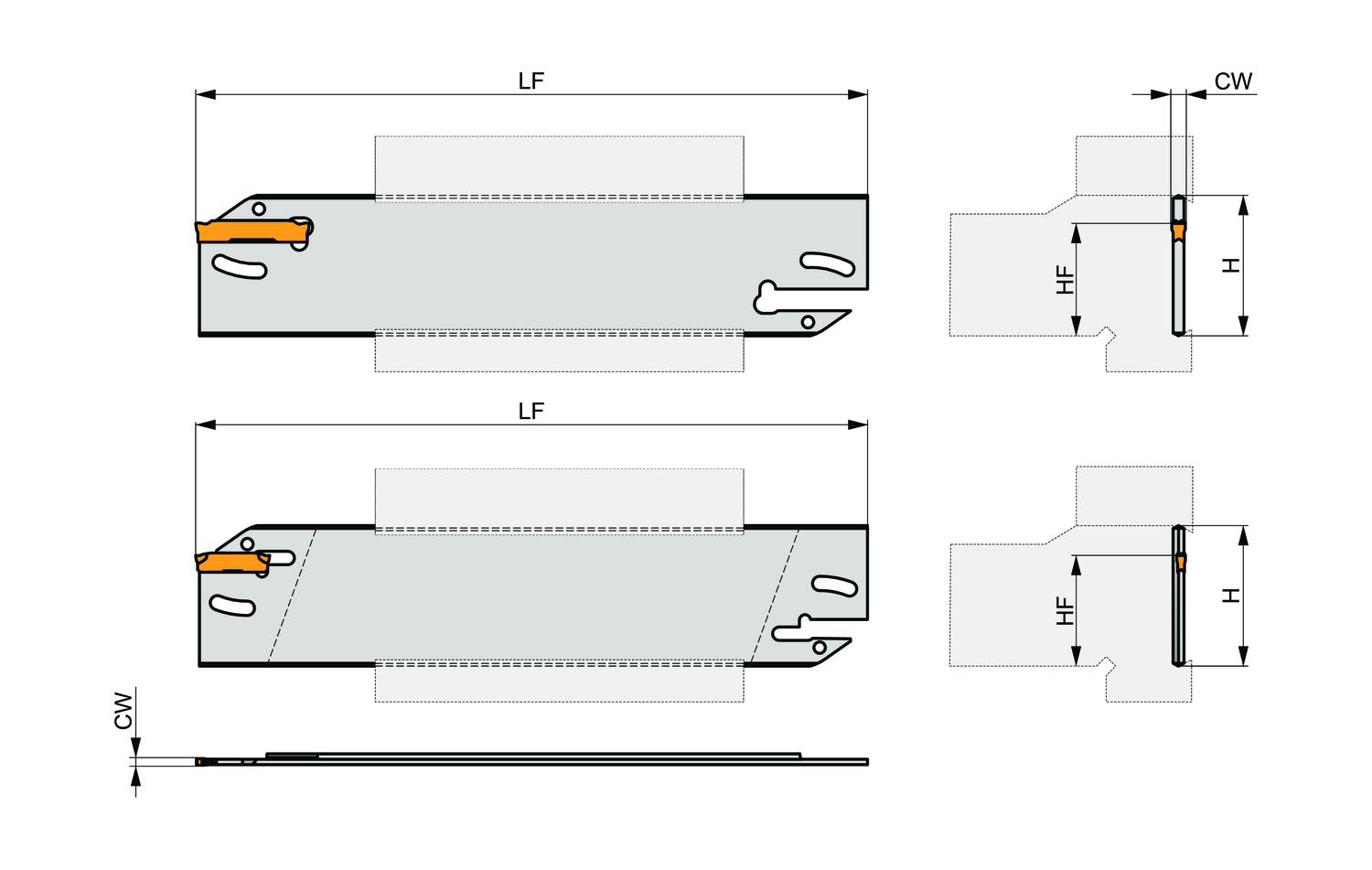

Clamping Type Code (MTP)
System X
Cutting depth maximum - inch (CDX)
1.969
Cutting depth maximum - millimeter (CDX)
50
Cutting width - inch (CW)
0.079
Cutting width - millimeter (CW)
2
Direction of tool
Neutral
Functional height - inch (HF)
0.984
Functional height - millimeter (HF)
25
Functional length - inch (LF)
5.906
Functional length - millimeter (LF)
150
Primary use
Finishing
Shank height - inch (H)
1.26
Shank height - millimeter (H)
32
Spring clamp parting and grooving tool blade for holding a 25mm double ended insert with 2-2.5mm cutting width (designation GL2-D… ), tool style assembly with 32-DU.. for a maximum grooving depth of 50mm, tool blade height 32mm and length 150mm for parting-off and tube parting-off
