Image for Illustration purposes only. Actual product may vary
Pramet P61.SFL-1616H-06 7725303 External Grooving Tool Holder For X61 Circlips And O-Ring Inserts
MODEL 7725303
$159.70 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

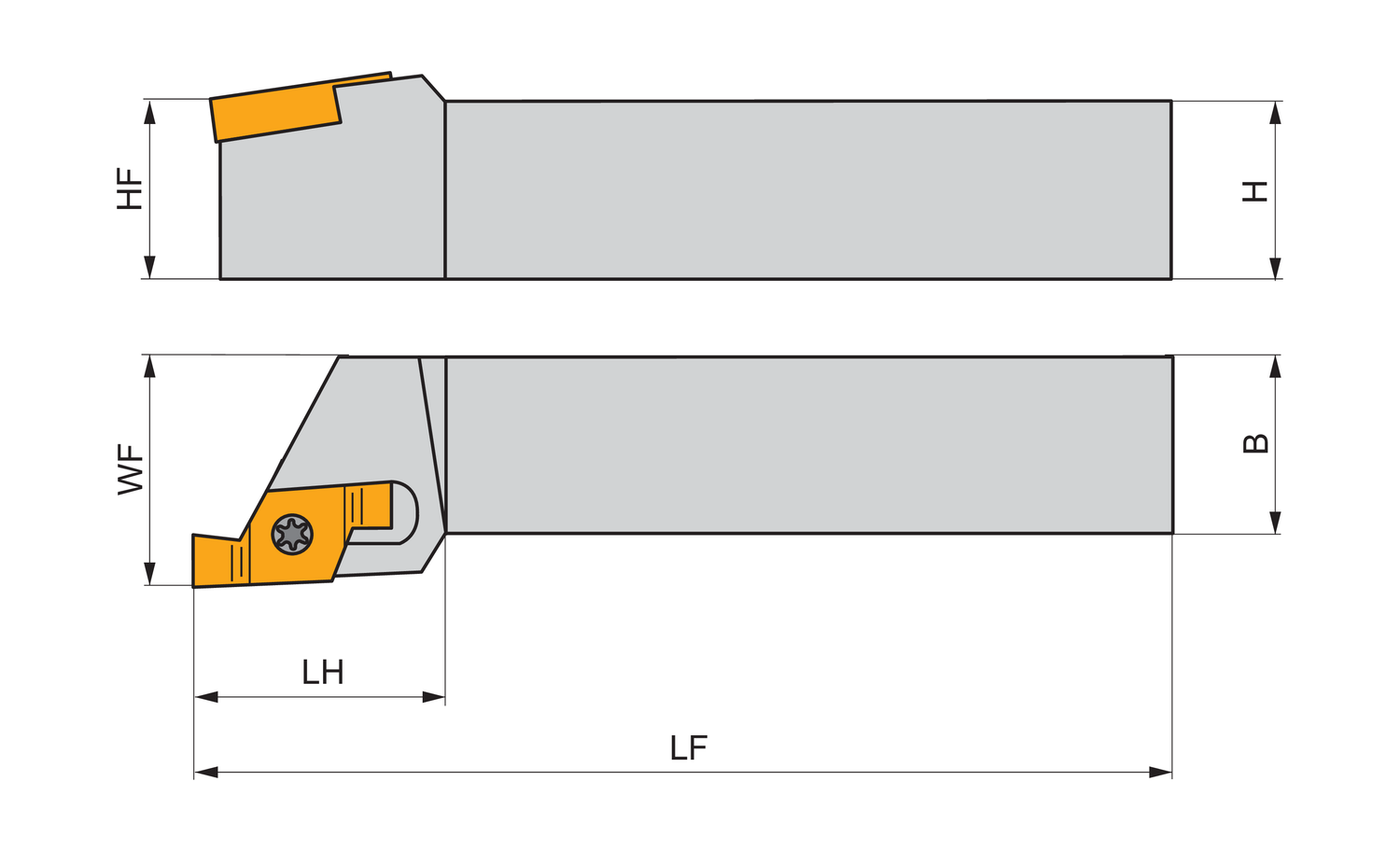

Clamping Type Code (MTP)
Screw clamping through hole
Direction of tool
Left
Functional height - inch (HF)
0.63
Functional height - millimeter (HF)
16
Functional length - inch (LF)
3.937
Functional length - millimeter (LF)
100
Functional width - inch (WF)
0.787
Functional width - millimeter (WF)
20
Head length - inch (LH)
0.827
Head length - millimeter (LH)
21
Insert group used in the tool
X61 0602..
Possible use
Medium machining
Primary use
Finishing
Shank height - inch (H)
0.63
Shank height - millimeter (H)
16
Shank width - inch (B)
0.63
Shank width - millimeter (B)
16
Tool cutting edge angle (KAPR)
0
Screw clamp grooving tool for holding a double ended insert with 0.85-3.20mm cutting width (designation X61 0602.. ), left handed with insert parallel to the shank, shank height 16mm, width 16mm and tool length 100mm for shallow radial grooving
