Pramet P61.SFL-2525M-06 7725305 External Grooving Tool Holder For X61 Circlips And O-Ring Inserts
MODEL 7725305
$174.50 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Clamping Type Code (MTP)
Screw clamping through hole
Direction of tool
Left

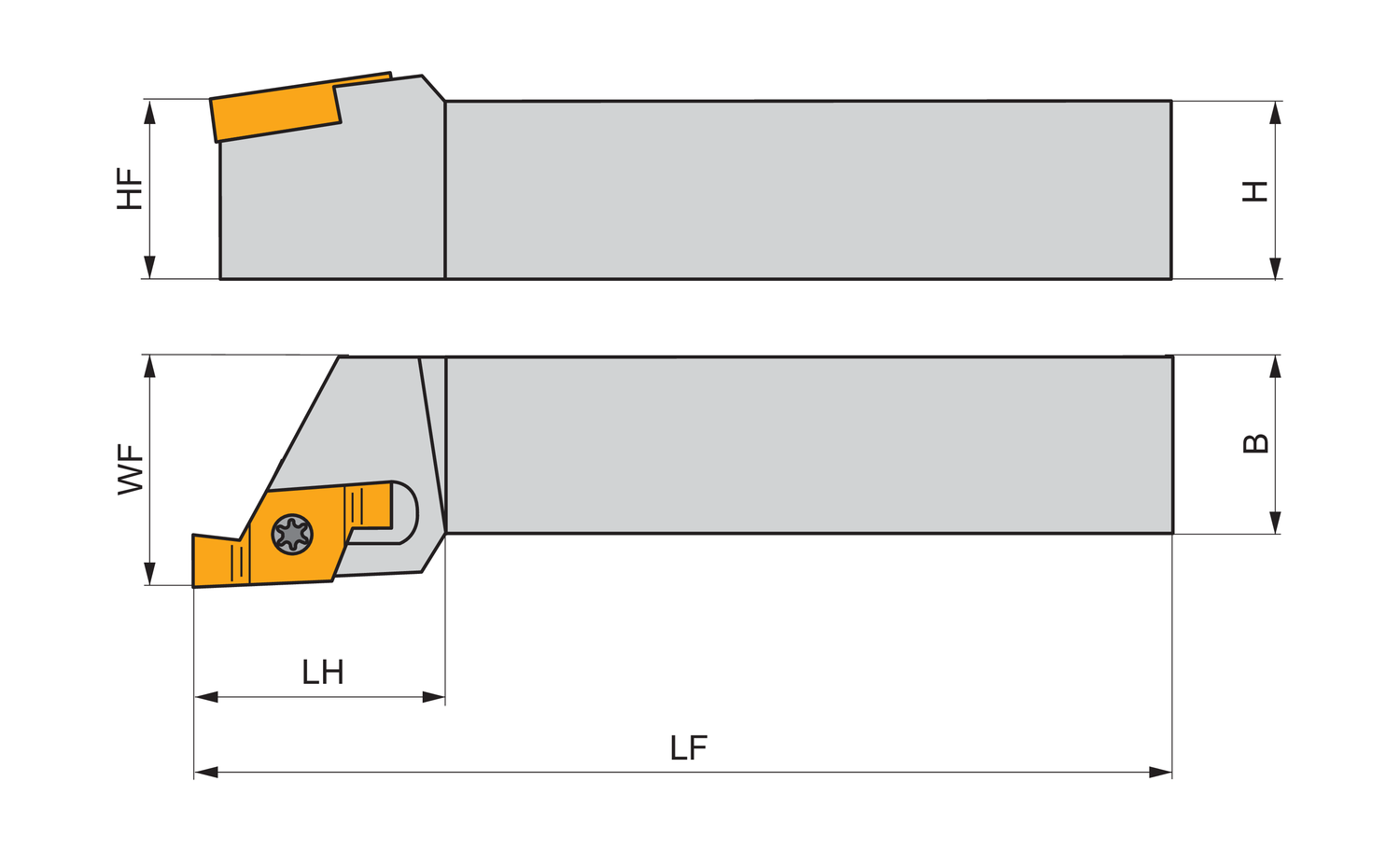

Functional height - inch (HF)
0.984
Functional height - millimeter (HF)
25
Functional length - inch (LF)
5.906
Functional length - millimeter (LF)
150
Functional width - inch (WF)
1.26
Functional width - millimeter (WF)
32
Head length - inch (LH)
1.26
Head length - millimeter (LH)
32
Insert group used in the tool
X61 0602..
Possible use
Medium machining
Primary use
Finishing
Shank height - inch (H)
0.984
Shank height - millimeter (H)
25
Shank width - inch (B)
0.984
Shank width - millimeter (B)
25
Tool cutting edge angle (KAPR)
0
Screw clamp grooving tool for holding a double ended insert with 0.85-3.20mm cutting width (designation X61 0602.. ), left handed with insert parallel to the shank, shank height 25mm, width 25mm and tool length 150mm for shallow radial grooving
