Pramet XLCFN 250325-4.00 6756323 Modular Blade - Parting And Grooving
MODEL 6756323
$101.85 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

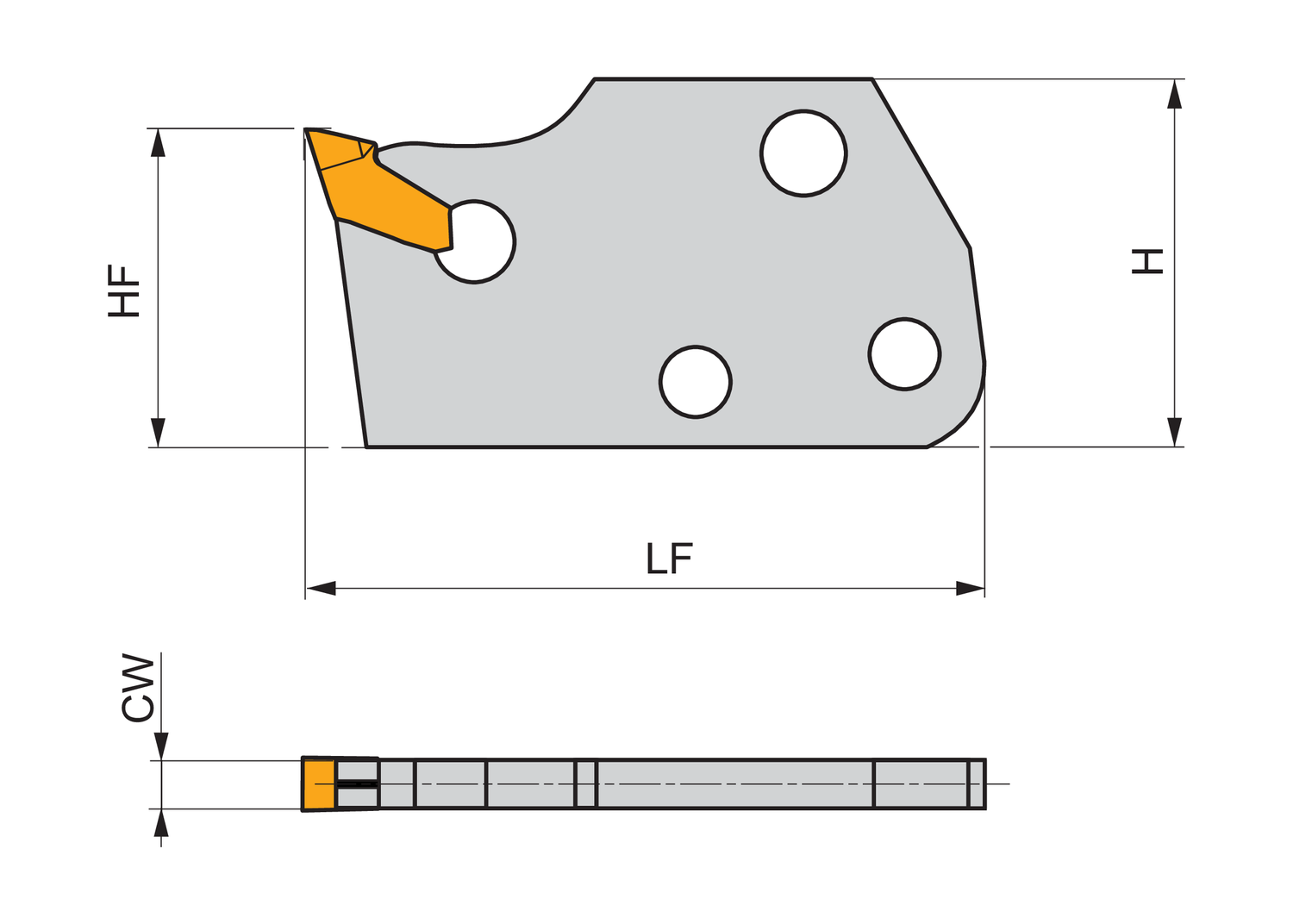

Clamping Type Code (MTP)
System X
Cutting depth maximum - inch (CDX)
0.984
Cutting depth maximum - millimeter (CDX)
25
Cutting width - inch (CW)
0.161
Cutting width - millimeter (CW)
4.1
Direction of tool
Neutral
Functional height - inch (HF)
0.945
Functional height - millimeter (HF)
24
Functional length - inch (LF)
1.969
Functional length - millimeter (LF)
50
Hand (Cutting direction)
Neutral
Insert group used in the tool
LFMX 4.1-
Primary use
Finishing
Shank height - inch (H)
1.142
Shank height - millimeter (H)
29
Spring clamp parting and grooving tool blade for holding a single ended insert with 4mm cutting width (designation LFMX 4.1-. ), tool style assembly with MS-EN.. (KMP)(S), right or left hand side, insert parallel to the shank for a maximum grooving depth of 25mm, for shallow and deep radial grooving, parting-off and tube parting-off
