Pramet SER-S 2525 M 22-A 6757114 Turning Toolholder - Threading
MODEL 6757114
$171.71 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable:No

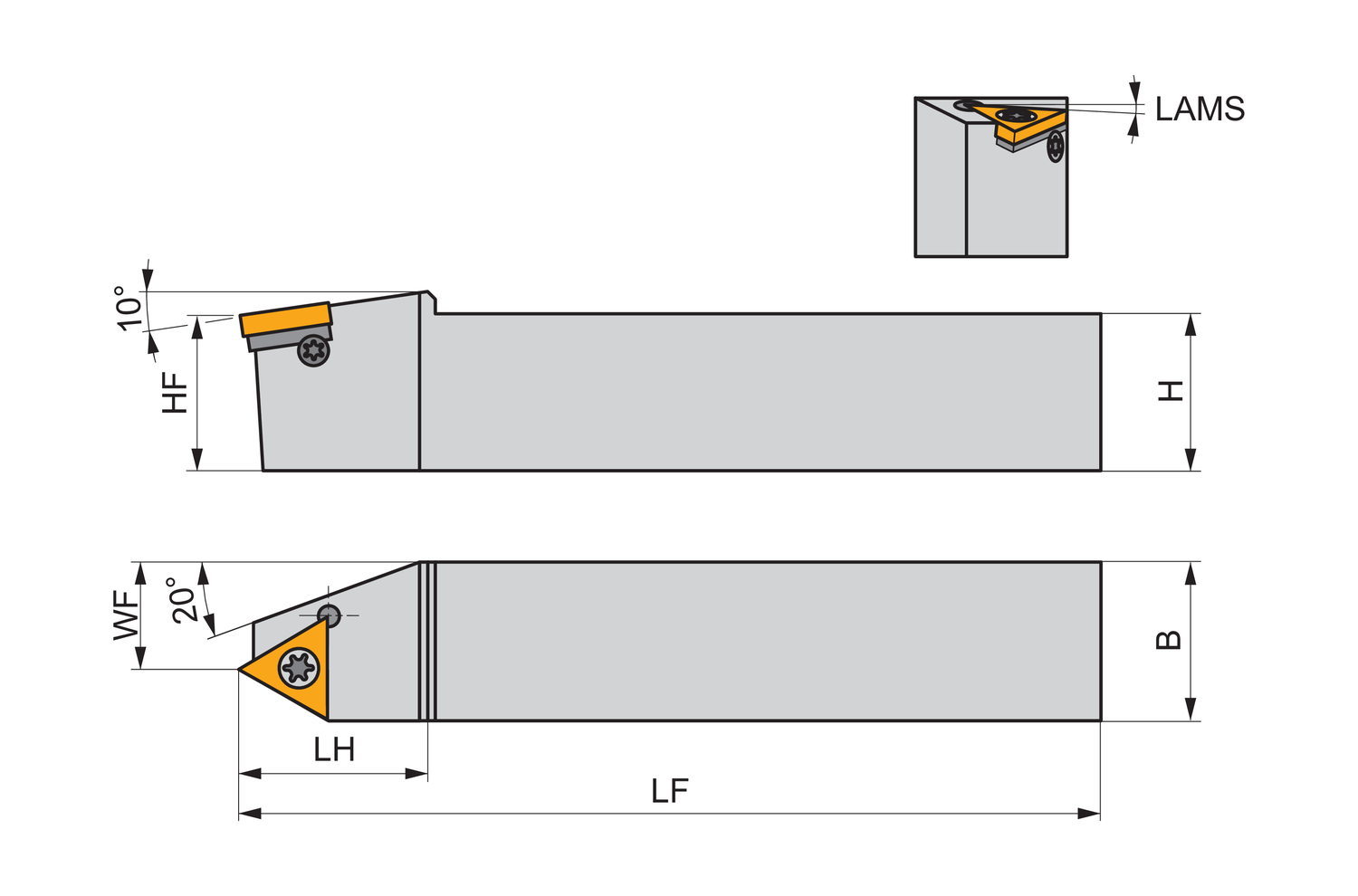

Clamping Type Code (MTP)
Screw clamping through hole
Direction of tool
Right
Functional height - inch (HF)
0.984
Functional height - millimeter (HF)
25
Functional length - inch (LF)
5.906
Functional length - millimeter (LF)
150
Functional width - inch (WF)
0.551
Functional width - millimeter (WF)
14
Hand (Cutting direction)
Right
Head length - inch (LH)
1.181
Head length - millimeter (LH)
30
Shank height - inch (H)
0.984
Shank height - millimeter (H)
25
Shank width - inch (B)
0.984
Shank width - millimeter (B)
25
Screw clamp thread turning tool with 1.5° helix angle for holding a triangle shaped insert with an inscribed circle diameter of 12.7mm (designation TN 22EN.. ), right hand special design with straight shank, 25mm tool height, 25mm width and 150mm overall length for external threading
