Pramet PHZ 90 1104-06 6760938 Broaching Tool Holder

Clamping Type Code (MTP)

Screw clamping through hole

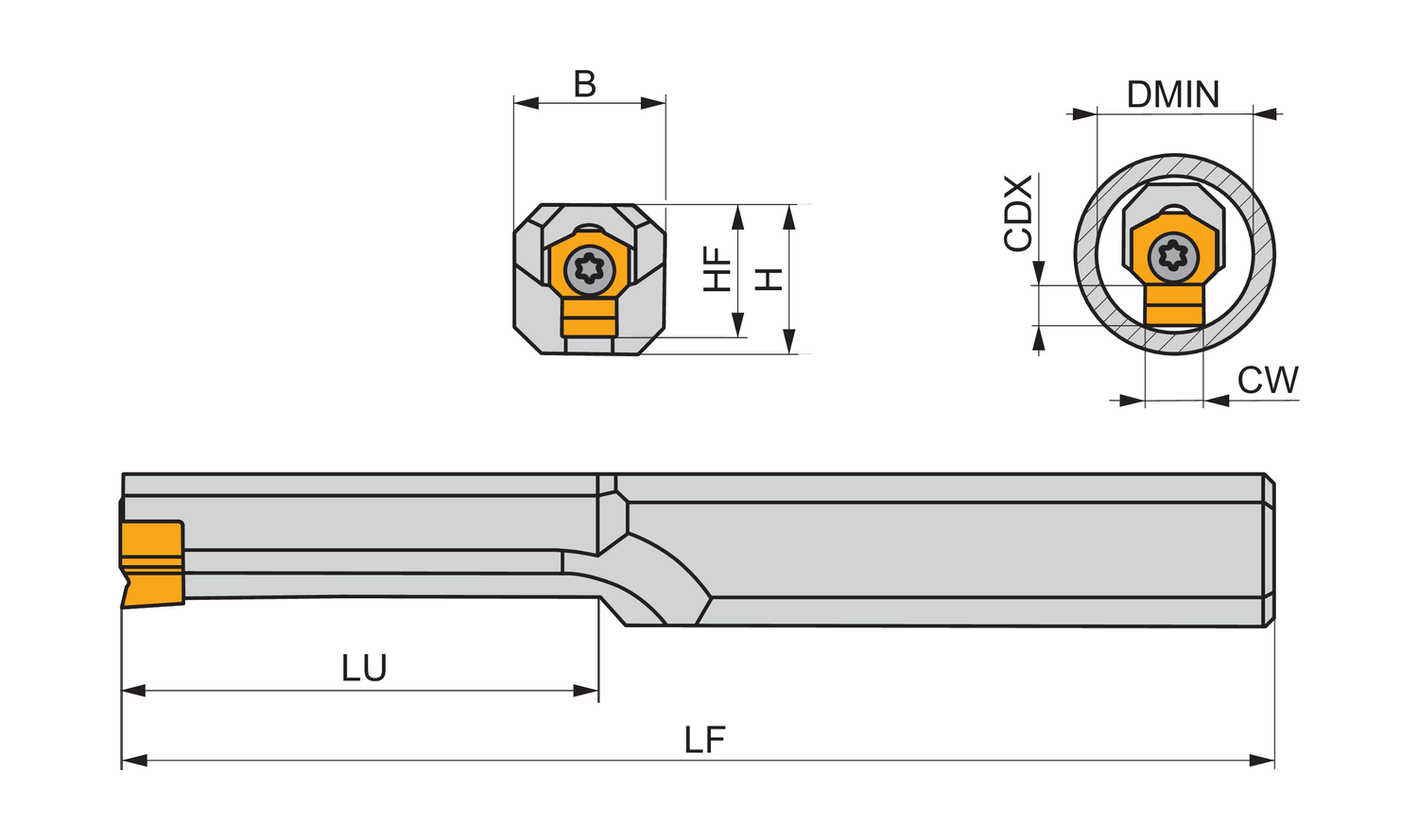

Cutting depth maximum - inch (CDX)

0.063

Cutting depth maximum - millimeter (CDX)

1.6

Cutting width - inch (CW)

0.1181

Cutting width - millimeter (CW)

3

Direction of tool

Neutral

Functional height - inch (HF)

0.354

Functional height - millimeter (HF)

9

Minimum bore diameter - inch (DMIN)

0.374

Minimum bore diameter - millimeter (DMIN)

9.5

Overall length - inch (OAL)

6.299

Overall length - millimeter (OAL)

160

Shank height - inch (H)

0.445

Shank height - millimeter (H)

11.3

Shank width - inch (B)

0.335

Shank width - millimeter (B)

8.5

Usable Length - inch (LU)

1.378

Usable Length - millimeter (LU)

35
