Pramet PPHF 080004-CE1:M8330 7447933 Milling Insert - Copy And Profile
MODEL 7447933
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$30.67 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
CE1
Coating
M8330
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life

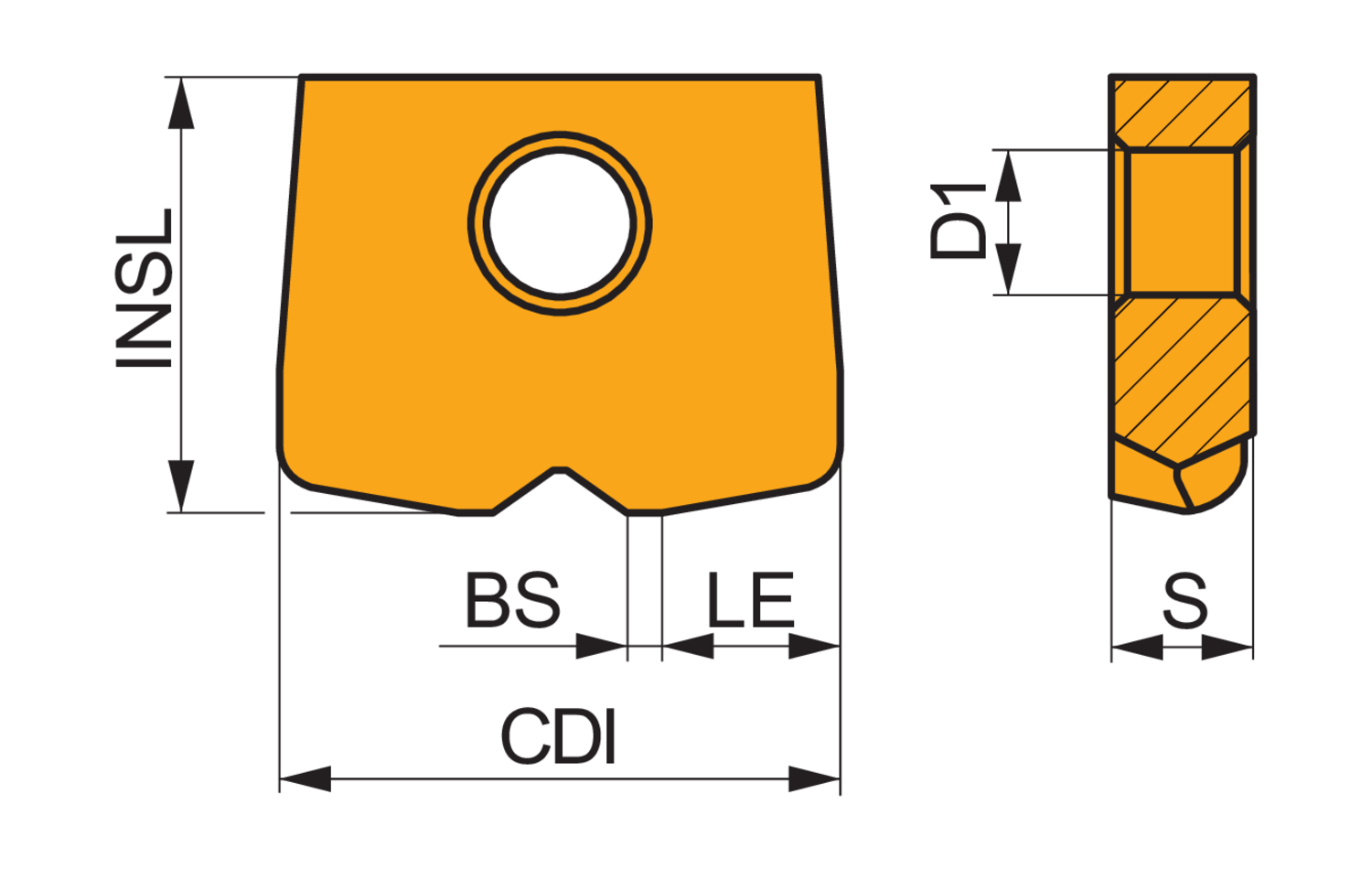

Cutting edge effective length - inch (LE)
0.102
Cutting edge effective length - millimeter (LE)
2.6
Depth of cut maximum - inch (APMX)
0.016
Depth of cut maximum - millimeter (APMX)
0.4
Depth of cut minimum - inch (APMN)
0.004
Depth of cut minimum - millimeter (APMN)
0.1
Feed maximal - millimeter
0.4
Feed minimal - millimeter
0.2
Feed_MAX_IMP_NUM
0.016
Feed_MIN_IMP_NUM
0.008
Fixing hole diameter - inch (D1)
0.098
Fixing hole diameter - millimeter (D1)
2.5
Insert cutting diameter - inch (CDI)
0.315
Insert cutting diameter - millimeter (CDI)
8
Insert length - inch (INSL)
0.276
Insert length - millimeter (INSL)
7
Insert shape code (SC)
P - pentagonal
Insert thickness - inch (S)
0.094
Insert thickness - millimeter (S)
2.4
Wiper edge length - inch (BS)
0.016
Wiper edge length - millimeter (BS)
0.4
High feed copy milling insert with a diameter of 8mm for a maximum depth of cut of 0.4mm, CE1 geometry and M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with copy end mills K2-PPH
