Image for Illustration purposes only. Actual product may vary
Pramet PPHF 120006-CE1:M8330 7447935 Milling Insert - Copy And Profile
MODEL 7447935
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$33.67 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
CE1
Coating
M8330
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life

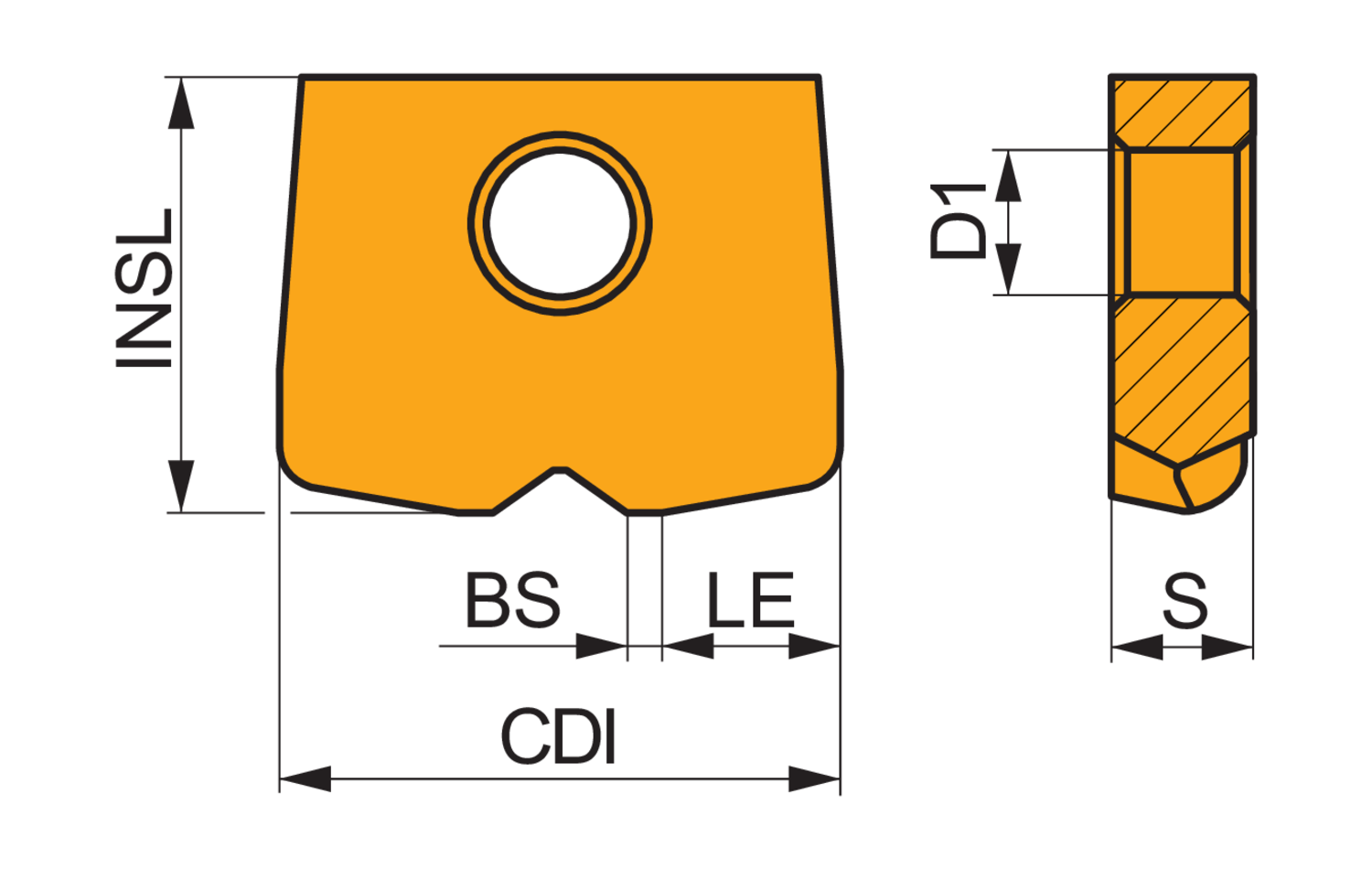

Cutting edge effective length - inch (LE)
0.154
Cutting edge effective length - millimeter (LE)
3.9
Depth of cut maximum - inch (APMX)
0.024
Depth of cut maximum - millimeter (APMX)
0.6
Depth of cut minimum - inch (APMN)
0.004
Depth of cut minimum - millimeter (APMN)
0.1
Feed maximal - millimeter
0.6
Feed minimal - millimeter
0.3
Feed_MAX_IMP_NUM
0.024
Feed_MIN_IMP_NUM
0.012
Fixing hole diameter - inch (D1)
0.138
Fixing hole diameter - millimeter (D1)
3.5
Insert cutting diameter - inch (CDI)
0.472
Insert cutting diameter - millimeter (CDI)
12
Insert length - inch (INSL)
0.394
Insert length - millimeter (INSL)
10
Insert shape code (SC)
P - pentagonal
Insert thickness - inch (S)
0.118
Insert thickness - millimeter (S)
3
Wiper edge length - inch (BS)
0.024
Wiper edge length - millimeter (BS)
0.6
High feed copy milling insert with a diameter of 12mm for a maximum depth of cut of 0.6mm, CE1 geometry and M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with copy end mills K2-PPH
