Pramet RCMT 2006MOSN-M:M9325 6756004 Milling Insert - Copy And Profile
MODEL 6756004
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$17.89 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
M
Coating
M9325
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Very negative effect on tool life - cooling is not recommended
Depth of cut maximum - inch (APMX)
0.394
Depth of cut maximum - millimeter (APMX)
10
Depth of cut minimum - inch (APMN)
0.012
Depth of cut minimum - millimeter (APMN)
0.3
Feed maximal - millimeter
0.38
Feed minimal - millimeter
0.15
Feed_MAX_IMP_NUM
0.015
Feed_MIN_IMP_NUM
0.006

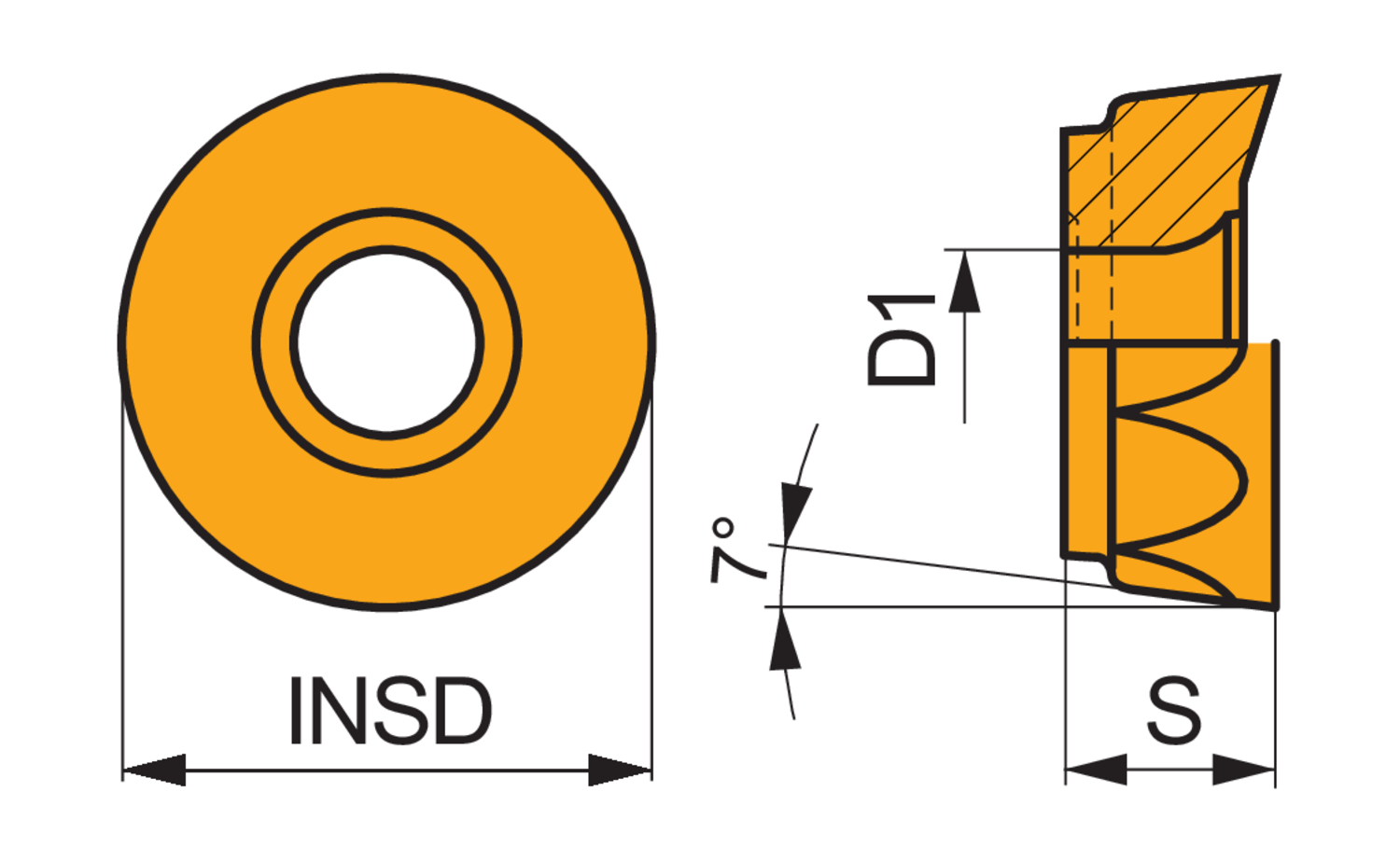

Fixing hole diameter - inch (D1)
0.256
Fixing hole diameter - millimeter (D1)
6.5
Insert diameter - inch (INSD)
0.787
Insert diameter - millimeter (INSD)
20
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.25
Insert thickness - millimeter (S)
6.35
Single-sided milling insert RCMT 2006 with chip-breakers, round for a maximum depth of cut of 10.0mm, with an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide for machining of steel and cast-iron with copy face mills SRC20
