Image for Illustration purposes only. Actual product may vary
Pramet RDGT 12T3MOT:M8310 6756279 Milling Insert - Copy And Profile
MODEL 6756279
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$11.94 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
With chipbreaker -no designation
Coating
M8310
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life
Depth of cut maximum - inch (APMX)
0.118
Depth of cut maximum - millimeter (APMX)
3
Depth of cut minimum - inch (APMN)
0.039
Depth of cut minimum - millimeter (APMN)
1
Feed maximal - millimeter
0.35
Feed minimal - millimeter
0.1
Feed_MAX_IMP_NUM
0.014
Feed_MIN_IMP_NUM
0.004

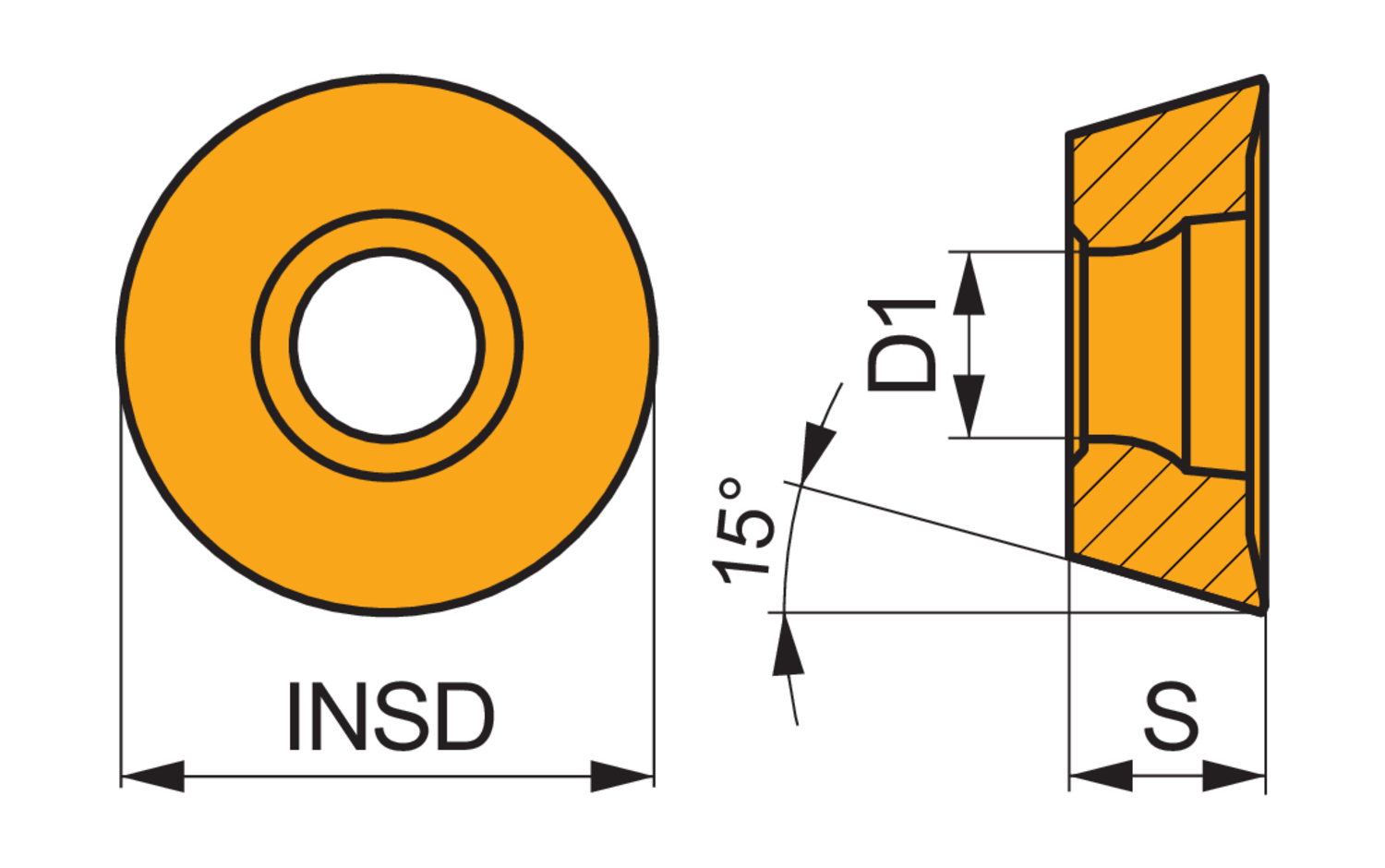

Fixing hole diameter - inch (D1)
0.154
Fixing hole diameter - millimeter (D1)
3.9
Insert diameter - inch (INSD)
0.472
Insert diameter - millimeter (INSD)
12
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.156
Insert thickness - millimeter (S)
3.97
Single-sided milling insert RDGT 12T3 with chip-breakers, round for a maximum depth of cut of 3.0mm, with an indexing accuracy according to ISO-tolerance class-G with cutting edges with facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade range P01-P10 for machining of steel with copy face mills SRD12
