Pramet RDMX 12T3MOT:M8325 copy and profile milling insert — round, 0.472 in (12 mm) diameter, 0.156 in (3.97 mm) thick, 0.154 in (3.9 mm) fixing hole, M8325 PVD coated carbide for copy roughing with SRD12 button cutters. Article 6801040.

Name: Pramet RDMX 12T3MOT:M8325 copy and profile milling insert — round, 0.472 in (12 mm) diameter, 0.156 in (3.97 mm) thick, 0.154 in (3.9 mm) fixing hole,
Brand: Pramet
Price: 14.76 USD
Availability: InStock

MODEL 6801040

BRAND

Pramet

SKU

6062595

WEIGHT

0.008 lb

UOM

each

This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.

$14.76 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity(10 minimum)

GET A QUOTE

Returnable: Yes

Chipbreaker

No chipbreaker

Coating

M8325

Coating process

PVD

Coating property (CTP)

Cooling effect

Slightly negative effect on tool life

Depth of cut maximum - inch (APMX)

0.118

Depth of cut maximum - millimeter (APMX)

Depth of cut minimum - inch (APMN)

0.039

Depth of cut minimum - millimeter (APMN)

Feed maximal - millimeter

0.35

Feed minimal - millimeter

0.1

Feed_MAX_IMP_NUM

0.014

Feed_MIN_IMP_NUM

0.004

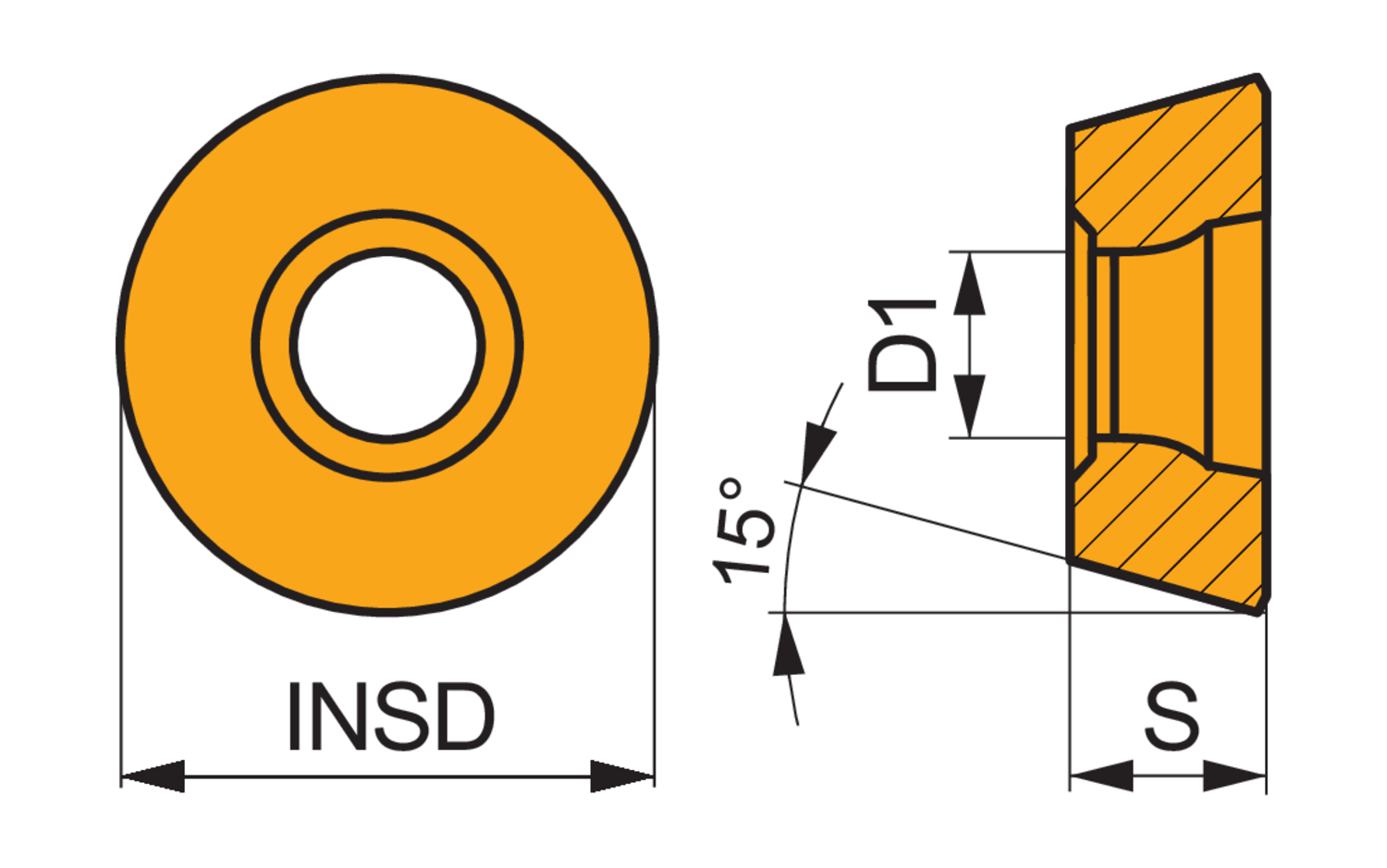

Fixing hole diameter - inch (D1)

0.154

Fixing hole diameter - millimeter (D1)

3.9

Insert diameter - inch (INSD)

0.472

Insert diameter - millimeter (INSD)

Insert shape code (SC)

R - round

Insert thickness - inch (S)

0.156

Insert thickness - millimeter (S)

3.97

Single-sided milling insert RDMX 12T3, round for a maximum depth of cut of 3.0mm, with an indexing accuracy according to ISO-tolerance class-M with cutting edges with facet, M8325 PVD coated WC-(Ti, Ta, Nb)C-Co carbide for machining with copy face mills SRD12
