Pramet RPEW 1204MOSN:M8340 6835886 Milling Insert - Copy And Profile
MODEL 6835886
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$11.94 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
M8340
Coating process
PVD
Coating property (CTP)
1
Depth of cut maximum - inch (APMX)
0.118
Depth of cut maximum - millimeter (APMX)
3
Depth of cut minimum - inch (APMN)
0.02
Depth of cut minimum - millimeter (APMN)
0.5
Feed maximal - millimeter
0.4
Feed minimal - millimeter
0.1
Feed_MAX_IMP_NUM
0.016
Feed_MIN_IMP_NUM
0.004

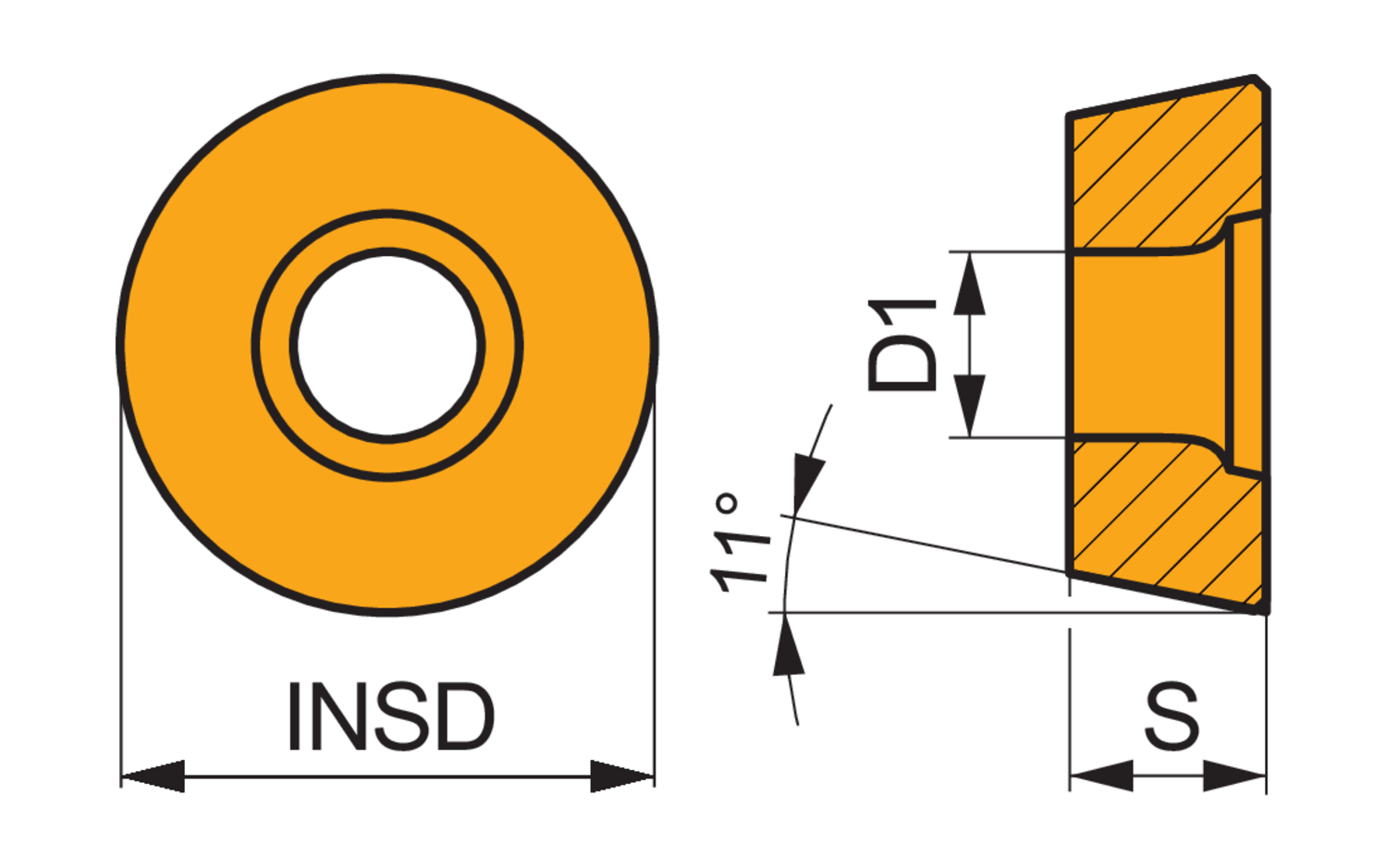

Fixing hole diameter - inch (D1)
0.173
Fixing hole diameter - millimeter (D1)
4.4
Insert diameter - inch (INSD)
0.472
Insert diameter - millimeter (INSD)
12
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.76
Single-sided milling insert RPEW 1204 with a plane rake surface, round for a maximum depth of cut of 3.0mm, with an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide
