Pramet ZP 20ER-M:M8345 6756126 Milling Insert - Copy And Profile
MODEL 6756126
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$32.04 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
M
Coating
M8345
Coating process
PVD
Coating property (CTP)
1
Depth of cut maximum - inch (APMX)
0.705
Depth of cut maximum - millimeter (APMX)
17.9
Depth of cut minimum - inch (APMN)
0.012
Depth of cut minimum - millimeter (APMN)
0.3
Feed maximal - millimeter
0.16
Feed minimal - millimeter
0.07
Feed_MAX_IMP_NUM
0.006
Feed_MIN_IMP_NUM
0.003

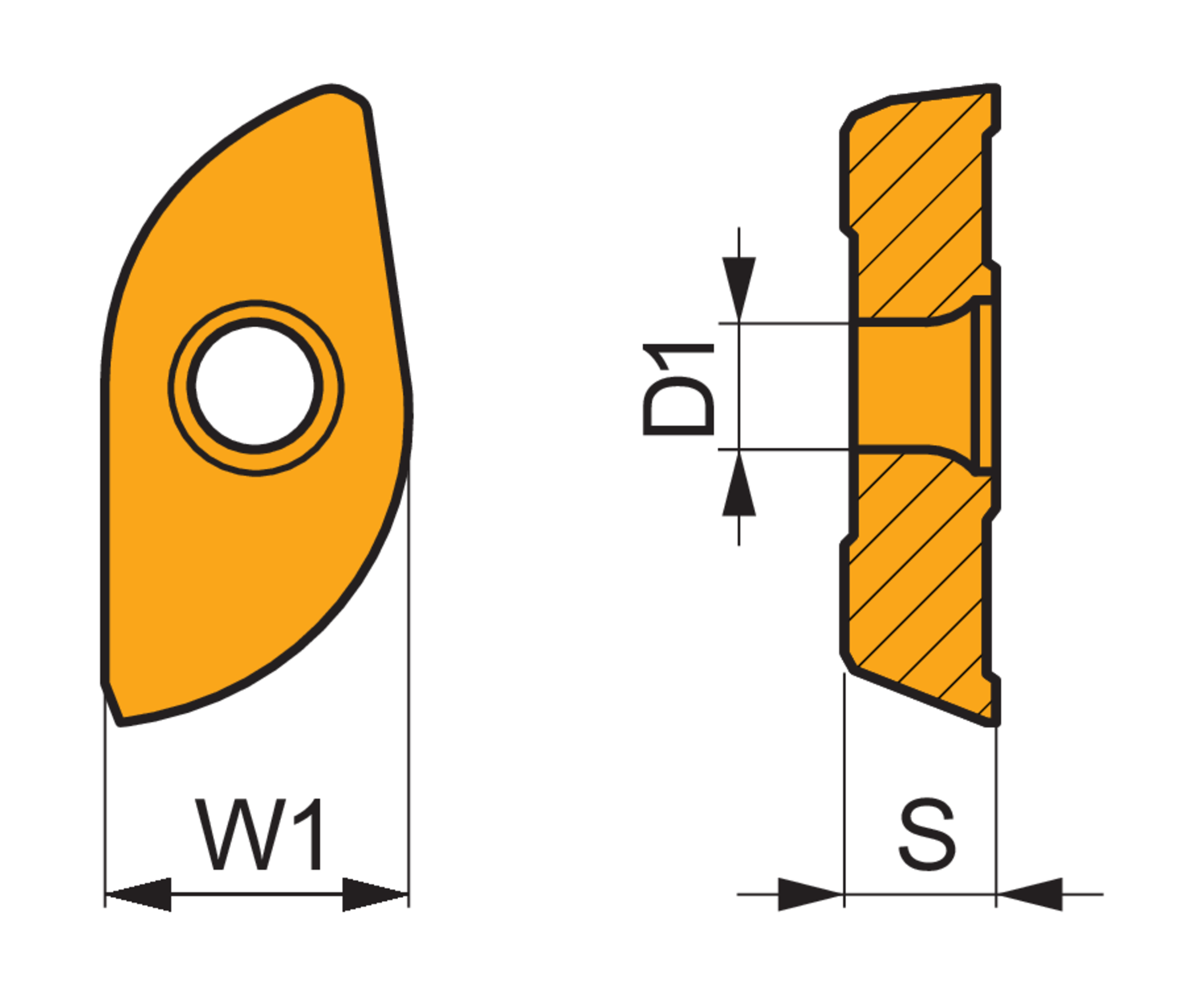

Fixing hole diameter - inch (D1)
0.157
Fixing hole diameter - millimeter (D1)
4
Insert shape code (SC)
X - Special design
Insert thickness - inch (S)
0.156
Insert thickness - millimeter (S)
3.97
Insert width - inch (W1)
0.787
Insert width - millimeter (W1)
20
Indexable ball nose segment copy milling insert for a diameter of 20mm for a maximum depth of cut of 17.9mm, M geometry and M8345 PVD coated WC-Co carbide within ISO-grade ranges P30-P50 and M30-M40 for machining of steel and stainless-steel with copy end mills L2-SZP
