Pramet RDHT 1003MO-FA:HF7 6751851 Milling Insert - Copy And Profile
MODEL 6751851
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$11.41 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
FA
Coating
HF7
Depth of cut maximum - inch (APMX)
0.098
Depth of cut maximum - millimeter (APMX)
2.5
Depth of cut minimum - inch (APMN)
0.012
Depth of cut minimum - millimeter (APMN)
0.3
Feed maximal - millimeter
0.3
Feed minimal - millimeter
0.1
Feed_MAX_IMP_NUM
0.012
Feed_MIN_IMP_NUM
0.004

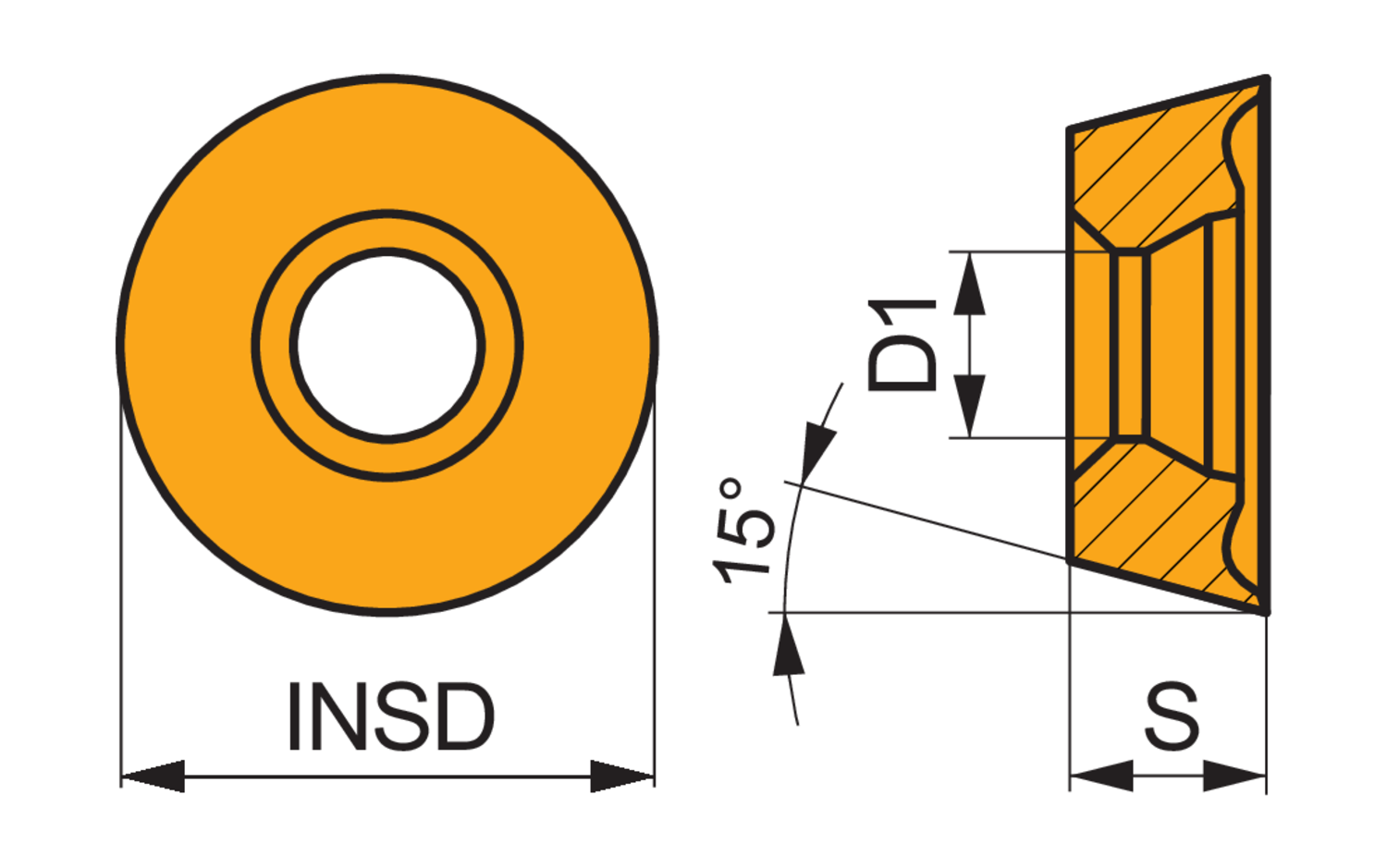

Fixing hole diameter - inch (D1)
0.154
Fixing hole diameter - millimeter (D1)
3.9
Insert diameter - inch (INSD)
0.394
Insert diameter - millimeter (INSD)
10
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.125
Insert thickness - millimeter (S)
3.18
Single-sided milling insert RDHT 1003 with chip-breakers, round for a maximum depth of cut of 2.5mm, with an indexing accuracy according to ISO-tolerance class-H and FA geometry, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with copy face mills SRD10
