Pramet VCGT 220520F-FA:HF7 6751855 Milling Insert - Copy And Profile
MODEL 6751855
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$22.87 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
FA
Coating
HF7

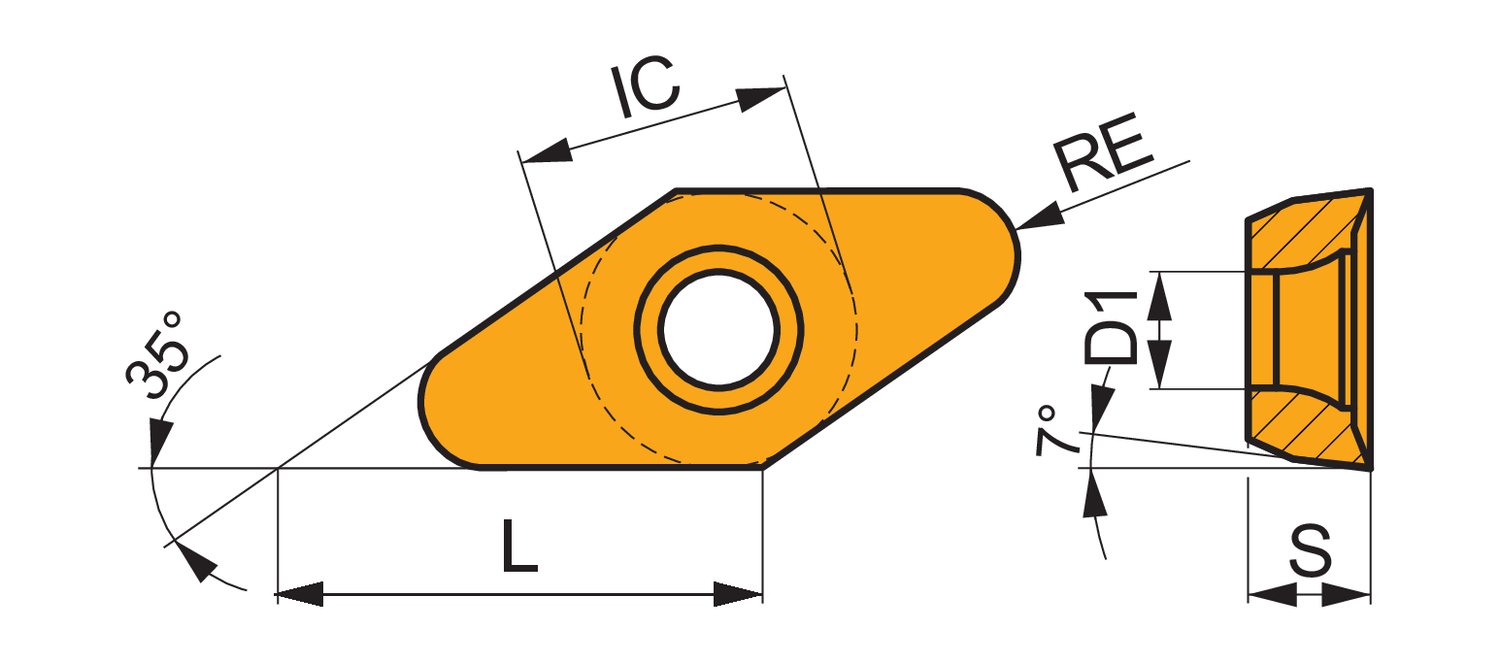

Corner radius - inch (RE)
0.079
Corner radius - millimeter (RE)
2
Cutting edge length - inch (L)
0.866
Cutting edge length - millimeter (L)
22
Depth of cut maximum - inch (APMX)
0.709
Depth of cut maximum - millimeter (APMX)
18
Depth of cut minimum - inch (APMN)
0.02
Depth of cut minimum - millimeter (APMN)
0.5
Feed maximal - millimeter
1.5
Feed minimal - millimeter
0.05
Feed_MAX_IMP_NUM
0.059
Feed_MIN_IMP_NUM
0.002
Fixing hole diameter - inch (D1)
0.205
Fixing hole diameter - millimeter (D1)
5.2
Inscribed circle diameter - inch (IC)
0.5
Inscribed circle diameter - millimeter (IC)
12.7
Insert shape code (SC)
V - rhombic 35° included angle
Insert thickness - inch (S)
0.217
Insert thickness - millimeter (S)
5.5
Single-sided milling insert VCGT 2205 with chip-breakers, 35° rhomboid for a maximum depth of cut of 18.0mm, with 2.0mm corner radius, an indexing accuracy according to ISO-tolerance class-G and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with end mills SVC22C
