Image for Illustration purposes only. Actual product may vary

View in markdown

Pramet XPHT 160408F-FA:HF7 positive chamfering milling insert — XPHT 160408F, FA sharp-edge chipbreaker, HF7 uncoated fine-grained WC-Co carbide grade for non-ferrous metals, 0.591 in max depth of cut, 0.031 in corner radius. Article 6752075.

MODEL 6752075

BRAND

SKU

6062698

WEIGHT

0.015 lb

UOM

each

This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.

$26.40 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity(10 minimum)

GET A QUOTE

Returnable: Yes

Chipbreaker

FA

Coating

HF7

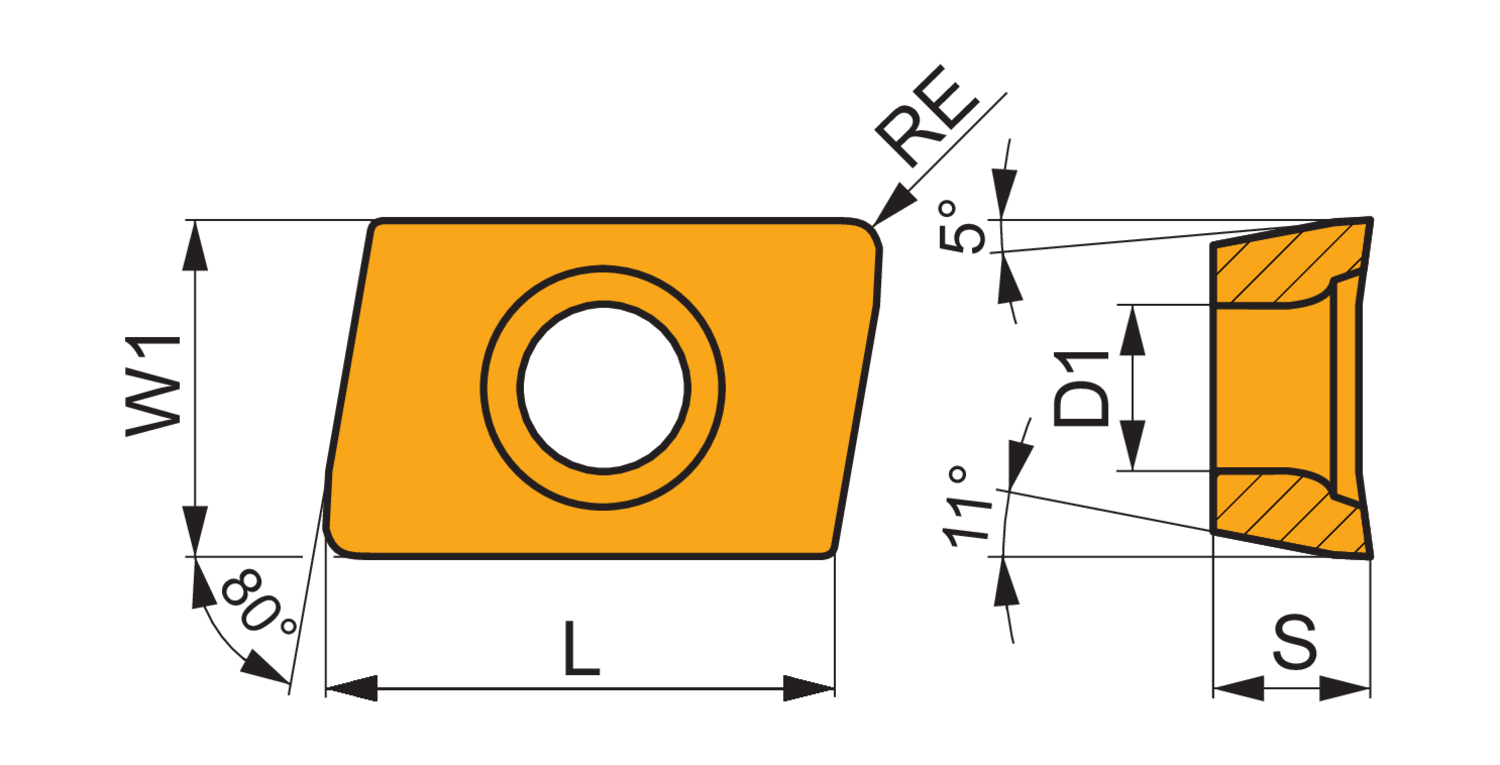

Corner radius - inch (RE)

0.031

Corner radius - millimeter (RE)

0.8

Cutting edge length - inch (L)

0.625

Cutting edge length - millimeter (L)

15.88

Depth of cut maximum - inch (APMX)

0.591

Depth of cut maximum - millimeter (APMX)

15

Depth of cut minimum - inch (APMN)

0.031

Depth of cut minimum - millimeter (APMN)

0.8

Feed maximal - millimeter

0.3

Feed minimal - millimeter

0.05

Feed_MAX_IMP_NUM

0.012

Feed_MIN_IMP_NUM

0.002

Fixing hole diameter - inch (D1)

0.173

Fixing hole diameter - millimeter (D1)

4.4

Insert shape code (SC)

X - Special design

Insert thickness - inch (S)

0.187

Insert thickness - millimeter (S)

4.76

Insert width - inch (W1)

0.375

Insert width - millimeter (W1)

9.525

Single-sided milling insert XPHT 1604 with chip-breakers, special shape for a maximum depth of cut of 15.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-H and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal
