Image for Illustration purposes only. Actual product may vary
Pramet ADEX 160608SR-FM:M8340 6800797 Milling Insert - Square Shoulder
MODEL 6800797
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$18.90 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Coating
0.01
Coating process
0.004
Coating property (CTP)
1
Cooling effect
FM

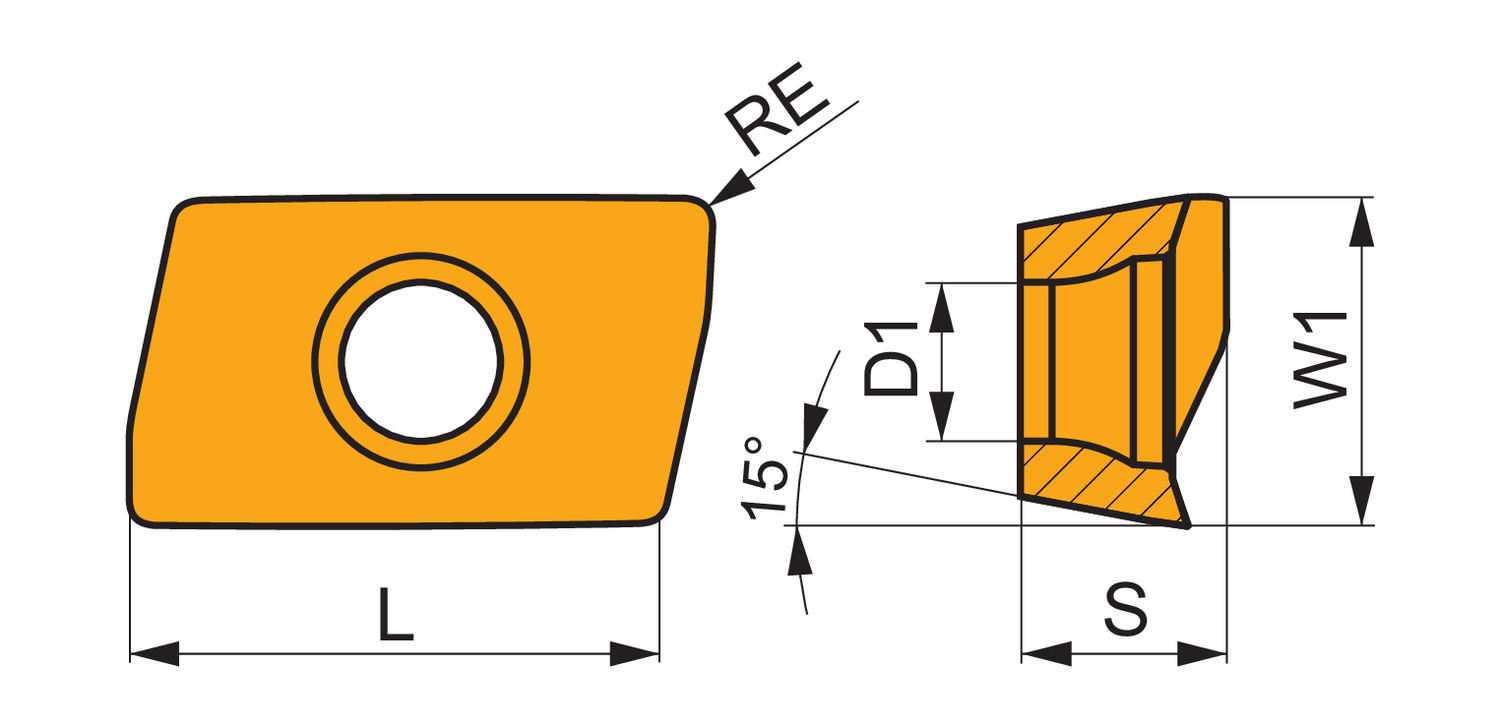

Corner radius - inch (RE)
M8340
Corner radius - millimeter (RE)
PVD
Cutting edge length - inch (L)
0.63
Cutting edge length - millimeter (L)
16
Depth of cut maximum - inch (APMX)
0.512
Depth of cut maximum - millimeter (APMX)
13
Feed maximal - millimeter
0.25
Feed minimal - millimeter
0.1
Feed_MAX_IMP_NUM
0.012
Feed_MIN_IMP_NUM
0.3
Fixing hole diameter - inch (D1)
0.177
Fixing hole diameter - millimeter (D1)
4.5
Insert cutting diameter - millimeter (CDI)
6.25
Insert diameter - inch (INSD)
0.392
Insert diameter - millimeter (INSD)
9.95
Insert shape code (SC)
A - parallelogram 85° included angle
Insert thickness - inch (S)
0.8
Insert thickness - millimeter (S)
6.25
Insert width - inch (W1)
0.392
Insert width - millimeter (W1)
9.95
Major cutting edge angle (KRINS)
0.031
Single-sided milling insert ADEX 1606, 85° parallelogram for a maximum depth of cut of 13.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-E and FM geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel with shoulder mills SAD16E or shoulder mills with extended flute J(T)-SAD16E
