Pramet ADEX 160612SR-HF2:M9325 positive high feed milling insert — ADEX 160612SR, 85° parallelogram, HF2 chipbreaker, M9325 MT-CVD grade, 0.63 in cutting edge length, 0.047 in corner radius, 0.051 in max depth of cut. Article 7056748.
MODEL 7056748
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$24.72 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
HF2
Coating
M9325
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Very negative effect on tool life - cooling is not recommended

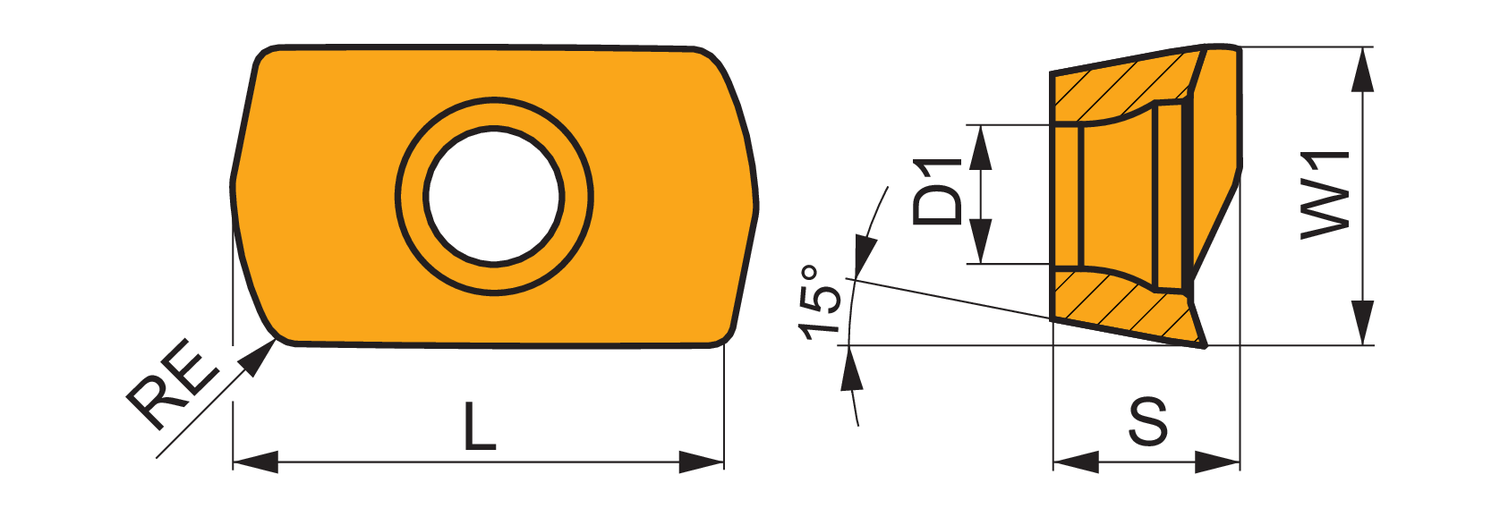

Corner radius - inch (RE)
0.047
Corner radius - millimeter (RE)
1.2
Cutting edge length - inch (L)
0.63
Cutting edge length - millimeter (L)
16
Depth of cut maximum - inch (APMX)
0.051
Depth of cut maximum - millimeter (APMX)
1.3
Feed maximal - millimeter
1.17
Feed minimal - millimeter
0.6
Feed_MAX_IMP_NUM
0.046
Feed_MIN_IMP_NUM
0.024
Fixing hole diameter - inch (D1)
0.177
Fixing hole diameter - millimeter (D1)
4.5
Insert shape code (SC)
A - parallelogram 85° included angle
Insert thickness - inch (S)
0.231
Insert thickness - millimeter (S)
5.88
Insert width - inch (W1)
0.392
Insert width - millimeter (W1)
9.95
Single-sided milling insert ADEX 1606, 85° parallelogram and high-feed design for a maximum depth of cut of 1.3mm, with 1.2mm corner radius, an indexing accuracy according to ISO-tolerance class-E and HF2 geometry with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide for machining of steel with shoulder mills SAD16E
