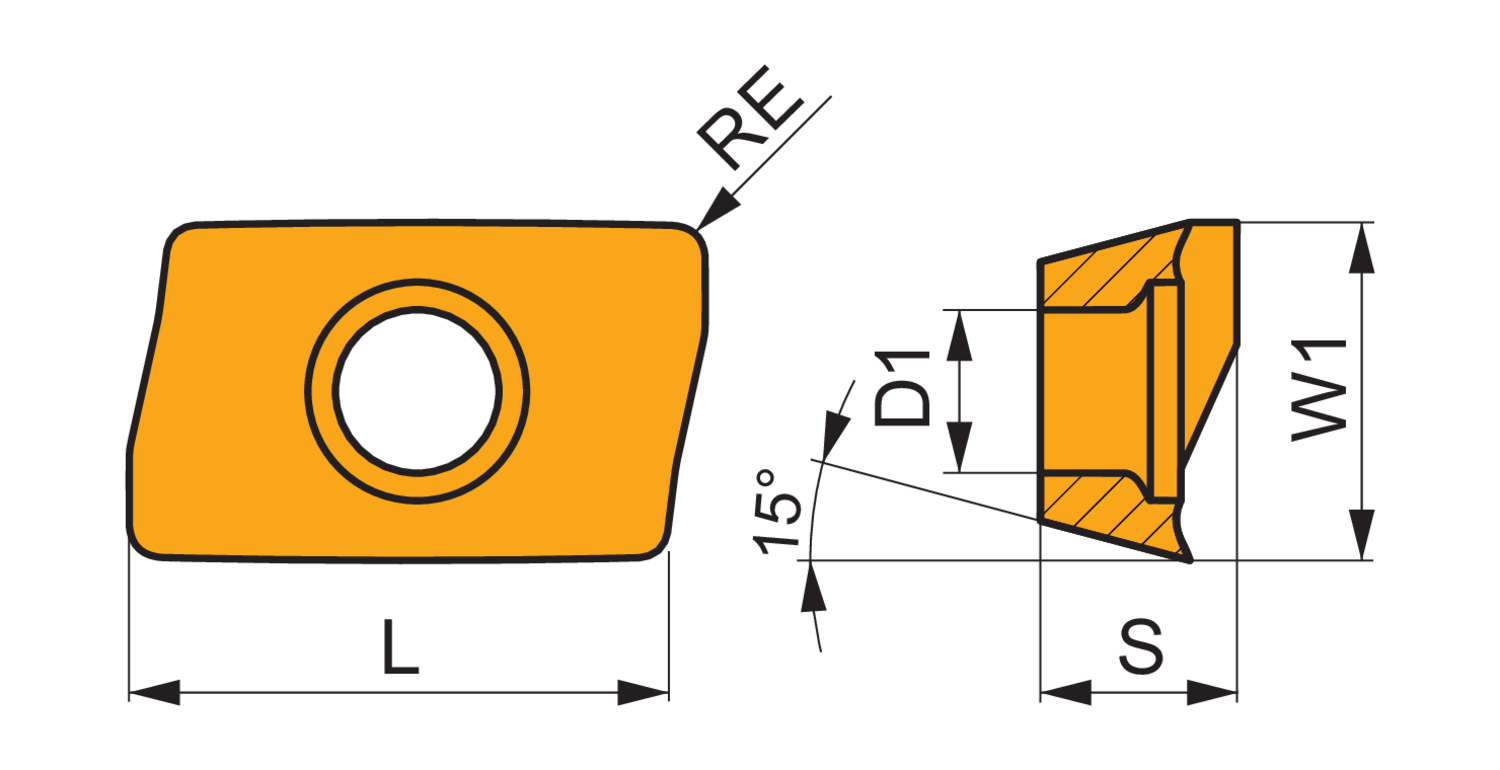

Pramet ADMX 070208SR-M:M8330 positive square shoulder milling insert — ADMX 070208SR, 85° parallelogram, 0.031 in corner radius, 0.098 in thick, M medium chipbreaker, M8330 PVD grade. Article 7447800.

Coating

0.005

Coating process

0.001

Coating property (CTP)

1

Cooling effect

M

Corner radius - inch (RE)

M8330

Corner radius - millimeter (RE)

PVD

Cutting edge length - inch (L)

0.274

Cutting edge length - millimeter (L)

6.95

Depth of cut maximum - inch (APMX)

0.197

Depth of cut maximum - millimeter (APMX)

5

Feed maximal - millimeter

0.12

Feed minimal - millimeter

0.03

Feed_MAX_IMP_NUM

0.004

Feed_MIN_IMP_NUM

0.1

Fixing hole diameter - inch (D1)

0.087

Fixing hole diameter - millimeter (D1)

2.2

Insert cutting diameter - millimeter (CDI)

2.48

Insert diameter - inch (INSD)

0.176

Insert diameter - millimeter (INSD)

4.482

Insert shape code (SC)

A - parallelogram 85° included angle

Insert thickness - inch (S)

0.8

Insert thickness - millimeter (S)

2.48

Insert width - inch (W1)

0.176

Insert width - millimeter (W1)

4.482

Major cutting edge angle (KRINS)

0.031

Wiper edge length - inch (BS)

Slightly negative effect on tool life
