Image for Illustration purposes only. Actual product may vary
Pramet APET 150412SN:M8330 7447827 Milling Insert - Square Shoulder
MODEL 7447827
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$20.62 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Coating
0.014
Coating process
0.008
Coating property (CTP)
1
Cooling effect
With chipbreaker -no designation

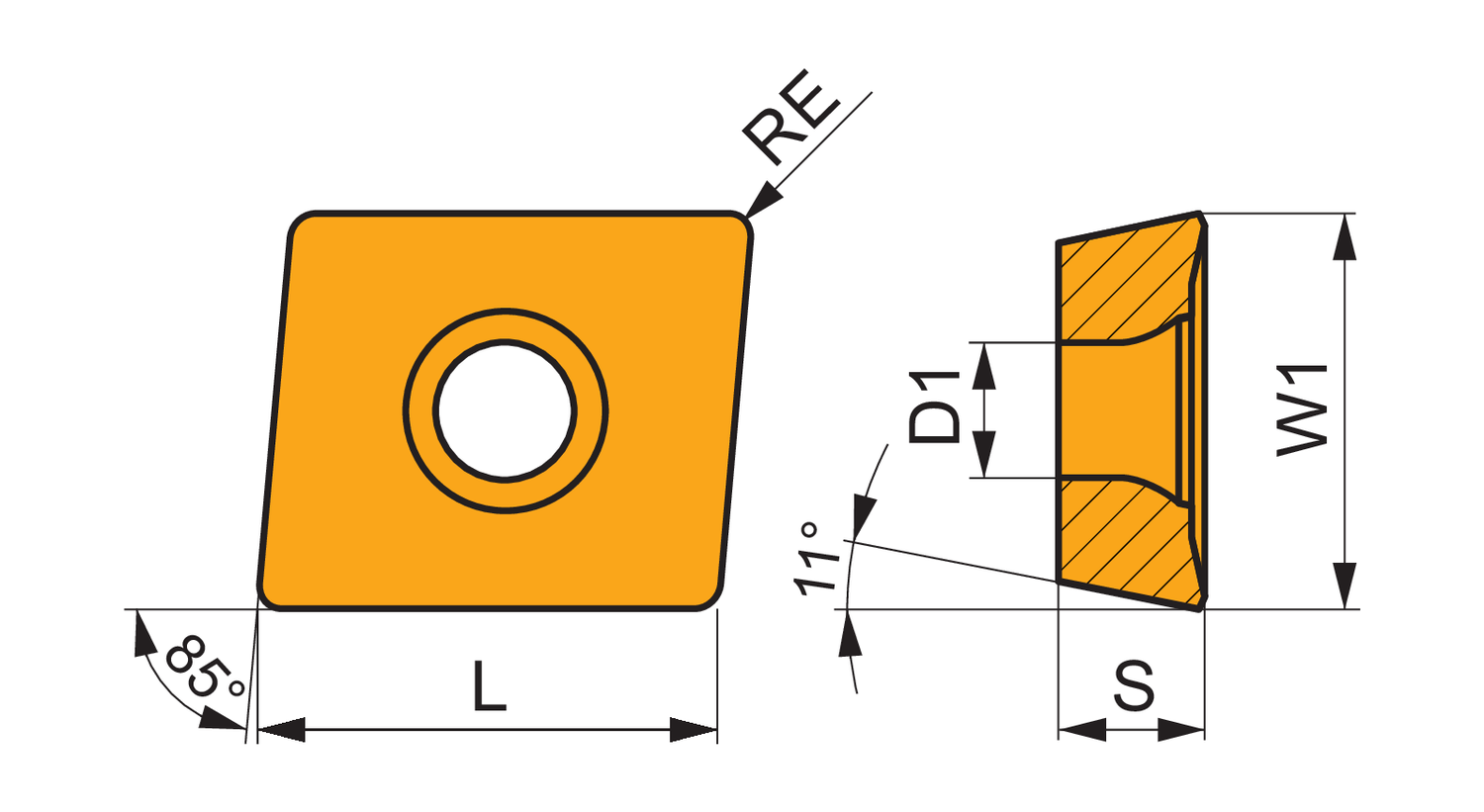

Corner radius - inch (RE)
M8330
Corner radius - millimeter (RE)
PVD
Cutting edge length - inch (L)
0.626
Cutting edge length - millimeter (L)
15.9
Depth of cut maximum - inch (APMX)
0.472
Depth of cut maximum - millimeter (APMX)
12
Feed maximal - millimeter
0.35
Feed minimal - millimeter
0.2
Feed_MAX_IMP_NUM
0.059
Feed_MIN_IMP_NUM
1.5
Fixing hole diameter - inch (D1)
0.217
Fixing hole diameter - millimeter (D1)
5.5
Insert cutting diameter - millimeter (CDI)
4.76
Insert diameter - inch (INSD)
0.5
Insert diameter - millimeter (INSD)
12.7
Insert shape code (SC)
A - parallelogram 85° included angle
Insert thickness - inch (S)
1.2
Insert thickness - millimeter (S)
4.76
Insert width - inch (W1)
0.5
Insert width - millimeter (W1)
12.7
Major cutting edge angle (KRINS)
0.047
Wiper edge length - inch (BS)
Slightly negative effect on tool life
Single-sided milling insert APET 1504 with chip-breakers, 85° parallelogram for a maximum depth of cut of 12.0mm, with 1.2mm corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with shoulder mills with extended flute J(T)-SSAP
