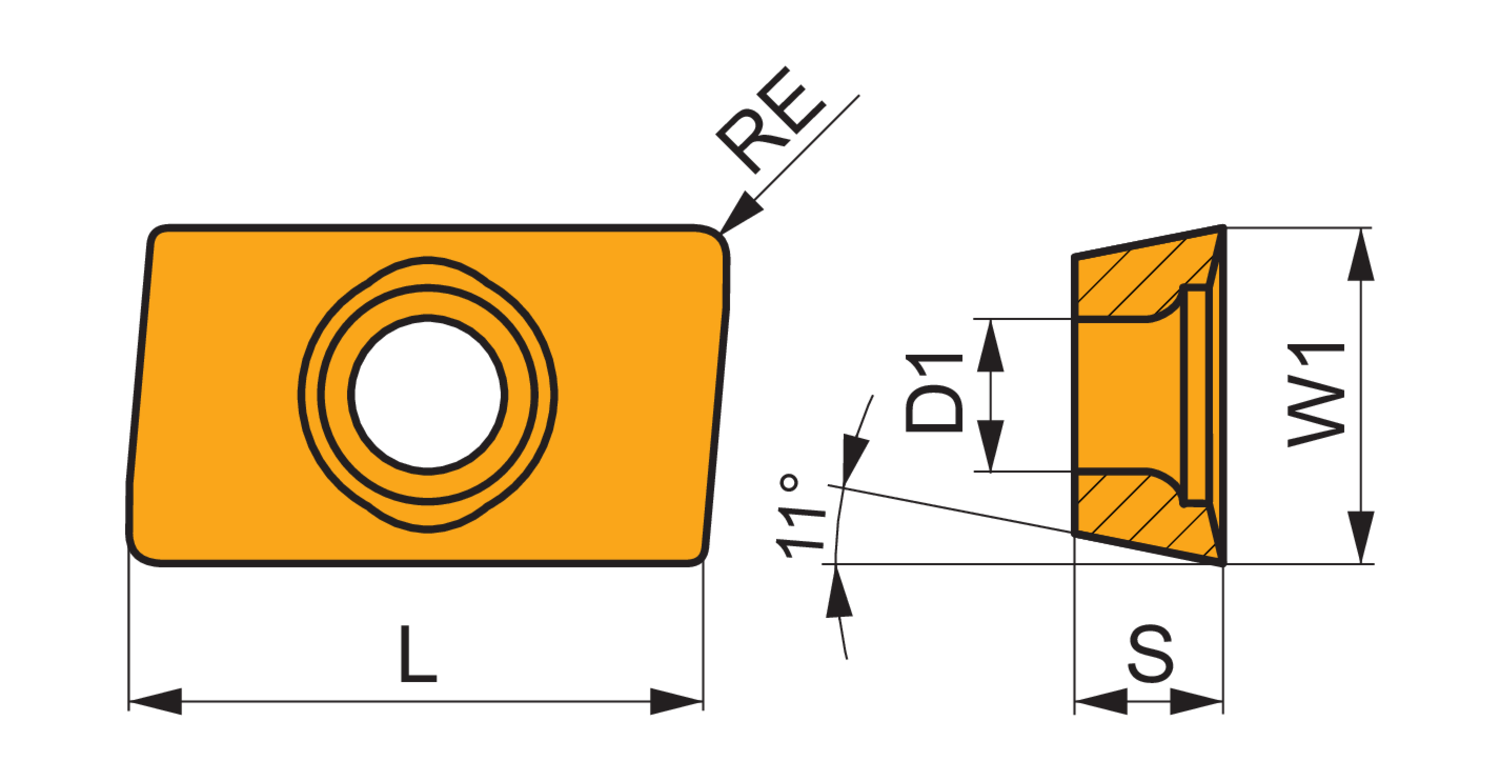

Pramet APMT 1604PDSR-R:M8330 positive square shoulder milling insert — APMT 1604PDSR, 85° parallelogram, 11° clearance, R roughing chipbreaker, M8330 PVD grade, 0.669 in cutting edge length, 0.187 in thick. Article 7447836.

Coating

0.016

Coating process

0.007

Coating property (CTP)

1

Cooling effect

R

Corner radius - inch (RE)

M8330

Corner radius - millimeter (RE)

PVD

Cutting edge length - inch (L)

0.669

Cutting edge length - millimeter (L)

17

Depth of cut maximum - inch (APMX)

0.512

Depth of cut maximum - millimeter (APMX)

13

Feed maximal - millimeter

0.4

Feed minimal - millimeter

0.17

Feed_MAX_IMP_NUM

0.031

Feed_MIN_IMP_NUM

0.8

Fixing hole diameter - inch (D1)

0.177

Fixing hole diameter - millimeter (D1)

4.5

Insert cutting diameter - millimeter (CDI)

4.76

Insert diameter - inch (INSD)

0.378

Insert diameter - millimeter (INSD)

9.6

Insert shape code (SC)

A - parallelogram 85° included angle

Insert thickness - inch (S)

0.187

Insert thickness - millimeter (S)

4.76

Insert width - inch (W1)

0.378

Insert width - millimeter (W1)

9.6

Wiper edge length - inch (BS)

Slightly negative effect on tool life
