Pramet CNM 563:M8330 negative plunging milling insert — CNM 563, M8330 grade. Article 7447876. Pramet indexable negative plunging milling insert, manufacturer article number 7447876.
MODEL 7447876
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$35.52 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Returnable: Yes
Chipbreaker
With chipbreaker -no designation
Coating
M8330
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life

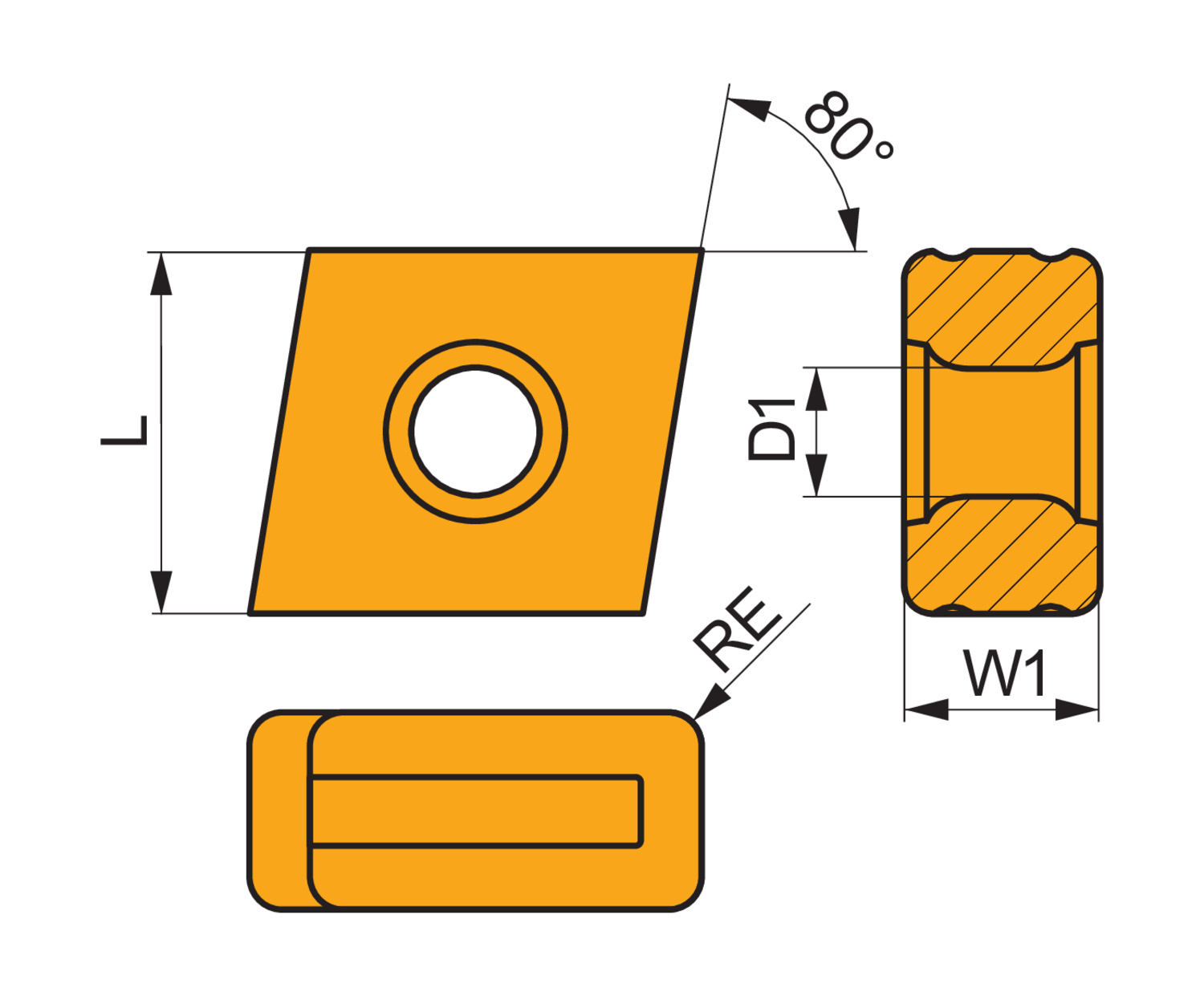

Corner radius - inch (RE)
0.047
Corner radius - millimeter (RE)
1.2
Cutting edge length - inch (L)
0.591
Cutting edge length - millimeter (L)
15
Depth of cut maximum - inch (APMX)
0.551
Depth of cut maximum - millimeter (APMX)
14
Depth of cut minimum - inch (APMN)
0.079
Depth of cut minimum - millimeter (APMN)
2
Feed maximal - millimeter
0.4
Feed minimal - millimeter
0.2
Feed_MAX_IMP_NUM
0.016
Feed_MIN_IMP_NUM
0.008
Fixing hole diameter - inch (D1)
0.217
Fixing hole diameter - millimeter (D1)
5.5
Insert shape code (SC)
C - rhombic 80° included angle
Insert thickness - inch (S)
0.315
Insert thickness - millimeter (S)
8
Double-sided milling insert CNM 563, 80° rhomboid for a maximum depth of cut of 14.0mm, with 1.2mm corner radius, an indexing accuracy according to ISO-tolerance class-M, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron
