Pramet LNGU 160708SR-M:M8340 6800835 Milling Insert - Square Shoulder
MODEL 6800835
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$19.57 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Coating
0.012
Coating process
0.004
Coating property (CTP)
1
Cooling effect
M

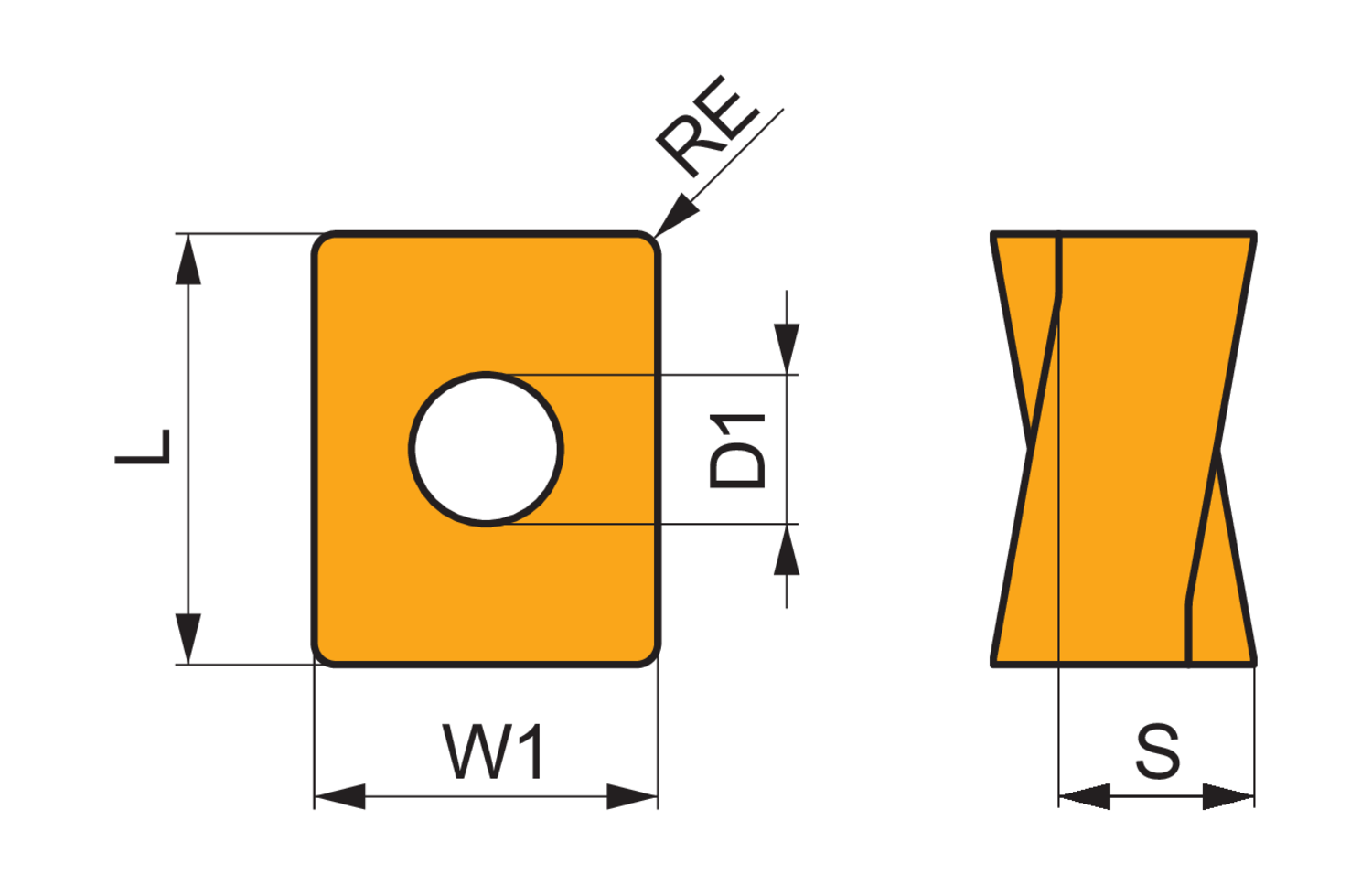

Corner radius - inch (RE)
M8340
Corner radius - millimeter (RE)
PVD
Cutting edge length - inch (L)
0.654
Cutting edge length - millimeter (L)
16.6
Depth of cut maximum - inch (APMX)
0.512
Depth of cut maximum - millimeter (APMX)
13
Feed maximal - millimeter
0.3
Feed minimal - millimeter
0.1
Feed_MAX_IMP_NUM
0.039
Feed_MIN_IMP_NUM
1
Fixing hole diameter - inch (D1)
0.224
Fixing hole diameter - millimeter (D1)
5.7
Insert cutting diameter - millimeter (CDI)
7.5
Insert diameter - inch (INSD)
0.52
Insert diameter - millimeter (INSD)
13.2
Insert shape code (SC)
L - rectangular
Insert thickness - inch (S)
0.8
Insert thickness - millimeter (S)
7.5
Insert width - inch (W1)
0.52
Insert width - millimeter (W1)
13.2
Major cutting edge angle (KRINS)
0.031
Double-sided milling insert LNGU 1607 with chip-breakers, rectangular for a maximum depth of cut of 13.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with shoulder mills SLN16
