Pramet RDMT 120500SN-R:M8330 7447959 Milling Insert - Copy And Profile
MODEL 7447959
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$10.75 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
R
Coating
M8330
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life
Depth of cut maximum - inch (APMX)
0.236
Depth of cut maximum - millimeter (APMX)
6
Depth of cut minimum - inch (APMN)
0.012
Depth of cut minimum - millimeter (APMN)
0.3
Feed maximal - millimeter
0.45
Feed minimal - millimeter
0.17
Feed_MAX_IMP_NUM
0.018
Feed_MIN_IMP_NUM
0.007

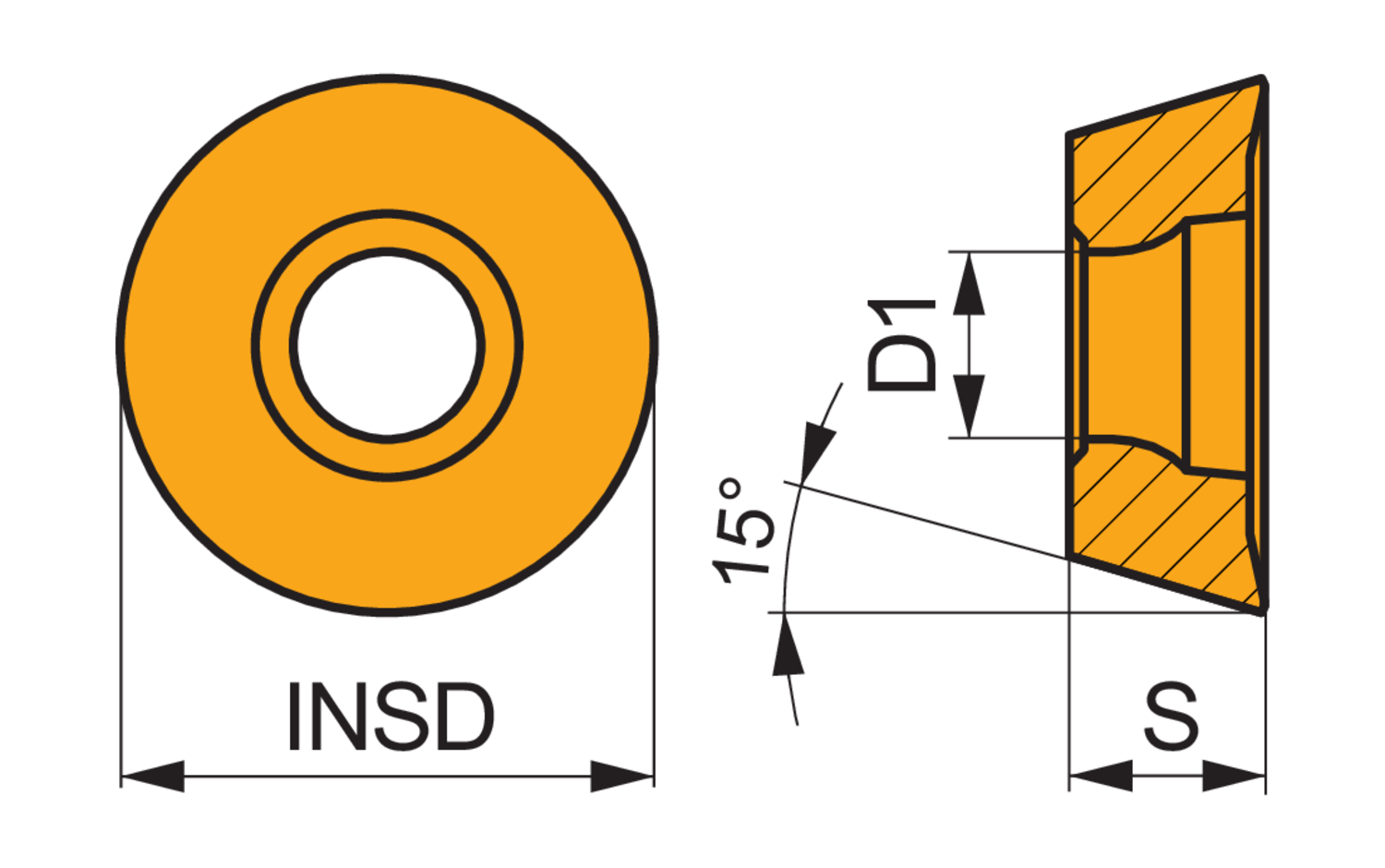

Fixing hole diameter - inch (D1)
0.217
Fixing hole diameter - millimeter (D1)
5.5
Insert diameter - inch (INSD)
0.5
Insert diameter - millimeter (INSD)
12.7
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.219
Insert thickness - millimeter (S)
5.56
Single-sided milling insert RDMT 1205 with chip-breakers, round for a maximum depth of cut of 6.0mm, with an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with copy face mills SOD05
