Pramet SDKT 1205PDSR-FM:M8330 7447976 Milling Insert - Square Shoulder
MODEL 7447976
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$17.32 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Coating
0.014
Coating process
0.006
Coating property (CTP)
1
Cooling effect
FM

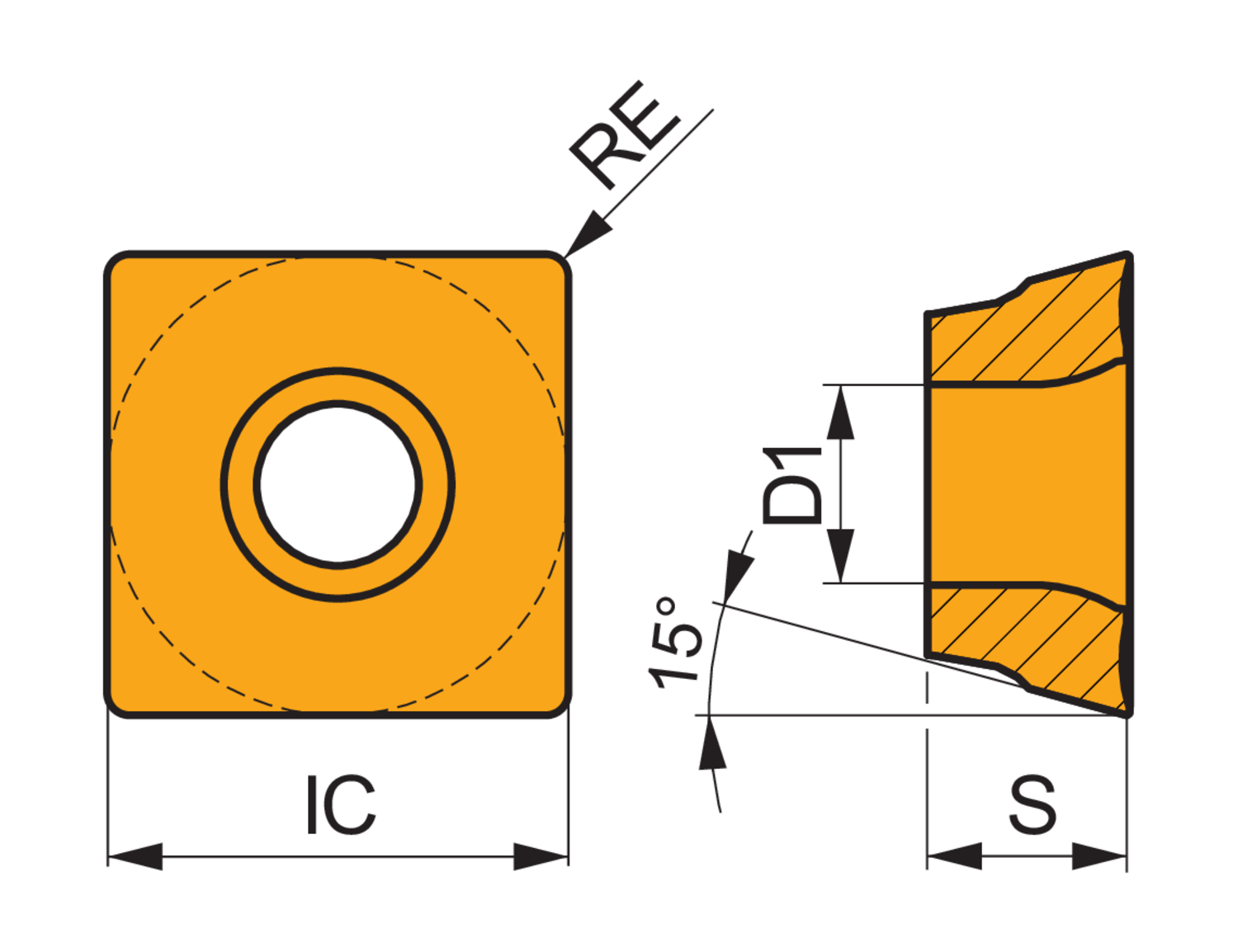

Corner radius - inch (RE)
M8330
Corner radius - millimeter (RE)
PVD
Cutting edge effective length - inch (LE)
0.5
Cutting edge effective length - millimeter (LE)
12.7
Cutting edge length - inch (L)
0.5
Cutting edge length - millimeter (L)
12.7
Depth of cut maximum - inch (APMX)
0.394
Depth of cut maximum - millimeter (APMX)
10
Feed maximal - millimeter
0.35
Feed minimal - millimeter
0.15
Feed_MAX_IMP_NUM
0.008
Feed_MIN_IMP_NUM
0.2
Fixing hole diameter - inch (D1)
0.217
Fixing hole diameter - millimeter (D1)
5.5
Inscribed circle diameter - inch (IC)
0.5
Inscribed circle diameter - millimeter (IC)
12.7
Insert cutting diameter - millimeter (CDI)
5.56
Insert shape code (SC)
S - square
Insert thickness - inch (S)
0.8
Insert thickness - millimeter (S)
5.56
Major cutting edge angle (KRINS)
0.031
Wiper edge length - inch (BS)
Slightly negative effect on tool life
Single-sided milling insert SDKT 1205 with chip-breakers, square for a maximum depth of cut of 10.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-K and FM geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with copy face mills SOD05
