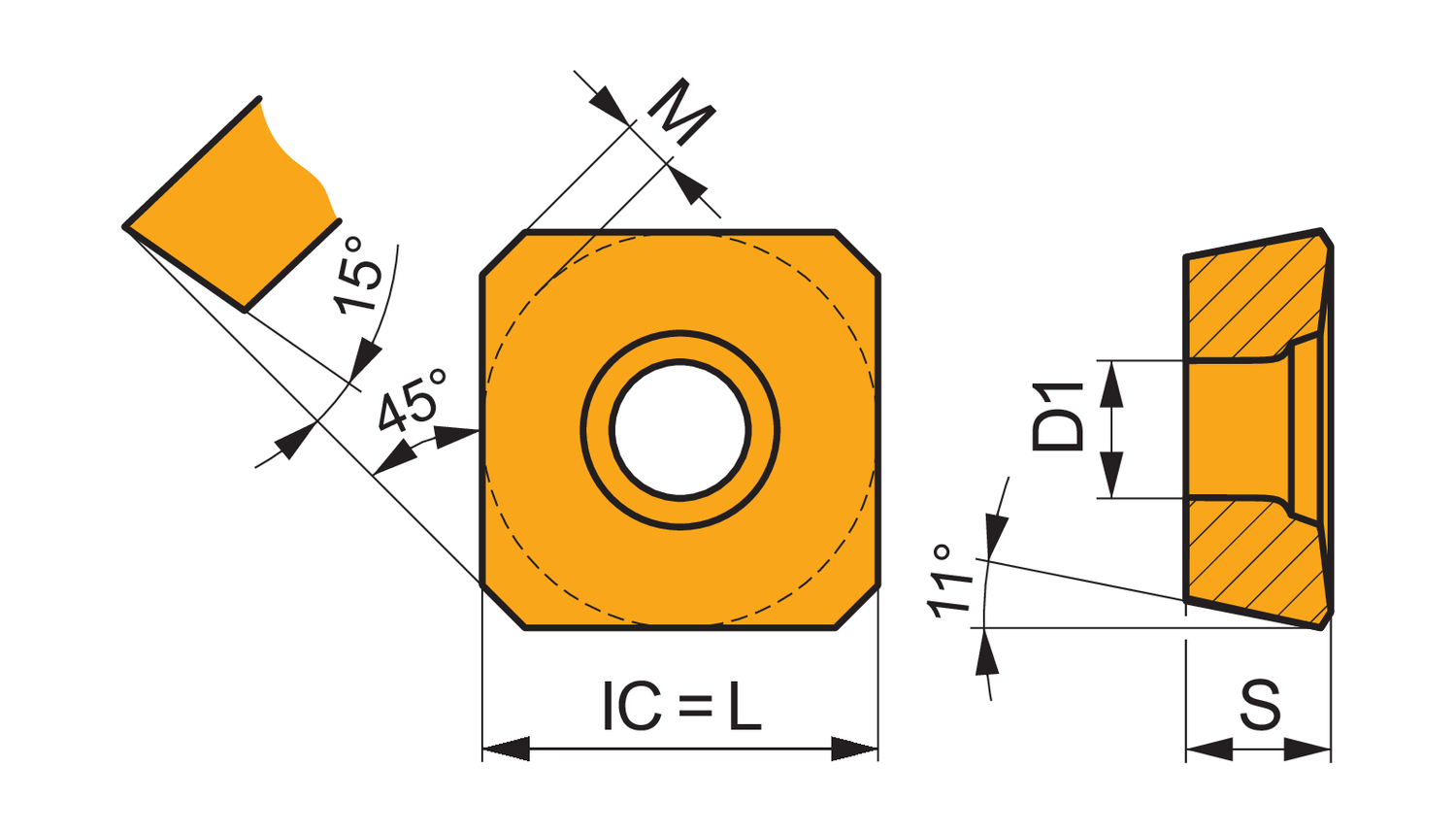

Image for Illustration purposes only. Actual product may vary

Pramet SPET 1204ADEN:M8340 6800891 Milling Insert - Square Shoulder

Name: Pramet SPET 1204ADEN:M8340 6800891 Milling Insert - Square Shoulder
Brand: Pramet
Price: 15.64 USD
Availability: InStock

MODEL 6800891

BRAND

Pramet

SKU

6063329

WEIGHT

0.015 lb

UOM

each

This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.

$15.64 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity(10 minimum)

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Coating

0.016

Coating process

0.005

Coating property (CTP)

Cooling effect

With chipbreaker -no designation

Corner radius - inch (RE)

M8340

Corner radius - millimeter (RE)

PVD

Cutting edge effective length - inch (LE)

0.5

Cutting edge effective length - millimeter (LE)

12.7

Cutting edge length - inch (L)

0.5

Cutting edge length - millimeter (L)

12.7

Depth of cut maximum - inch (APMX)

0.472

Depth of cut maximum - millimeter (APMX)

Feed maximal - millimeter

0.4

Feed minimal - millimeter

0.12

Feed_MAX_IMP_NUM

0.039

Feed_MIN_IMP_NUM

Fixing hole diameter - inch (D1)

0.217

Fixing hole diameter - millimeter (D1)

5.5

Inscribed circle diameter - inch (IC)

0.075

Inscribed circle diameter - millimeter (IC)

1.9

Insert cutting diameter - millimeter (CDI)

4.76

Insert shape code (SC)

S - square

Insert thickness - inch (S)

0.187

Insert thickness - millimeter (S)

4.76

m-dimension - inch (M)

0.075

m-dimension - millimeter (M)

1.9

Single-sided milling insert SPET 1204 with chip-breakers, square for a maximum depth of cut of 12.0mm, with an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel with shoulder mills with extended flute J(T)-SSAP
