Pramet XEHT 0604AESR:M8310 positive face milling insert — XEHT 0604AESR, wiper design, M8310 PVD coated fine-grained WC-Co carbide grade for steel (P01-P10), 0.632 in (16.05 mm) IC, 0.187 in (4.76 mm) thick, 0.13 in max depth of cut. Article 6931670.
MODEL 6931670
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$24.06 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
Wiper insert with chipbreaker - no designation
Coating
M8310
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Slightly negative effect on tool life
Depth of cut maximum - inch (APMX)
0.13
Depth of cut maximum - millimeter (APMX)
3.3
Depth of cut minimum - inch (APMN)
0.004
Depth of cut minimum - millimeter (APMN)
0.1
Feed maximal - millimeter
0.35
Feed minimal - millimeter
0.08
Feed_MAX_IMP_NUM
0.014
Feed_MIN_IMP_NUM
0.003

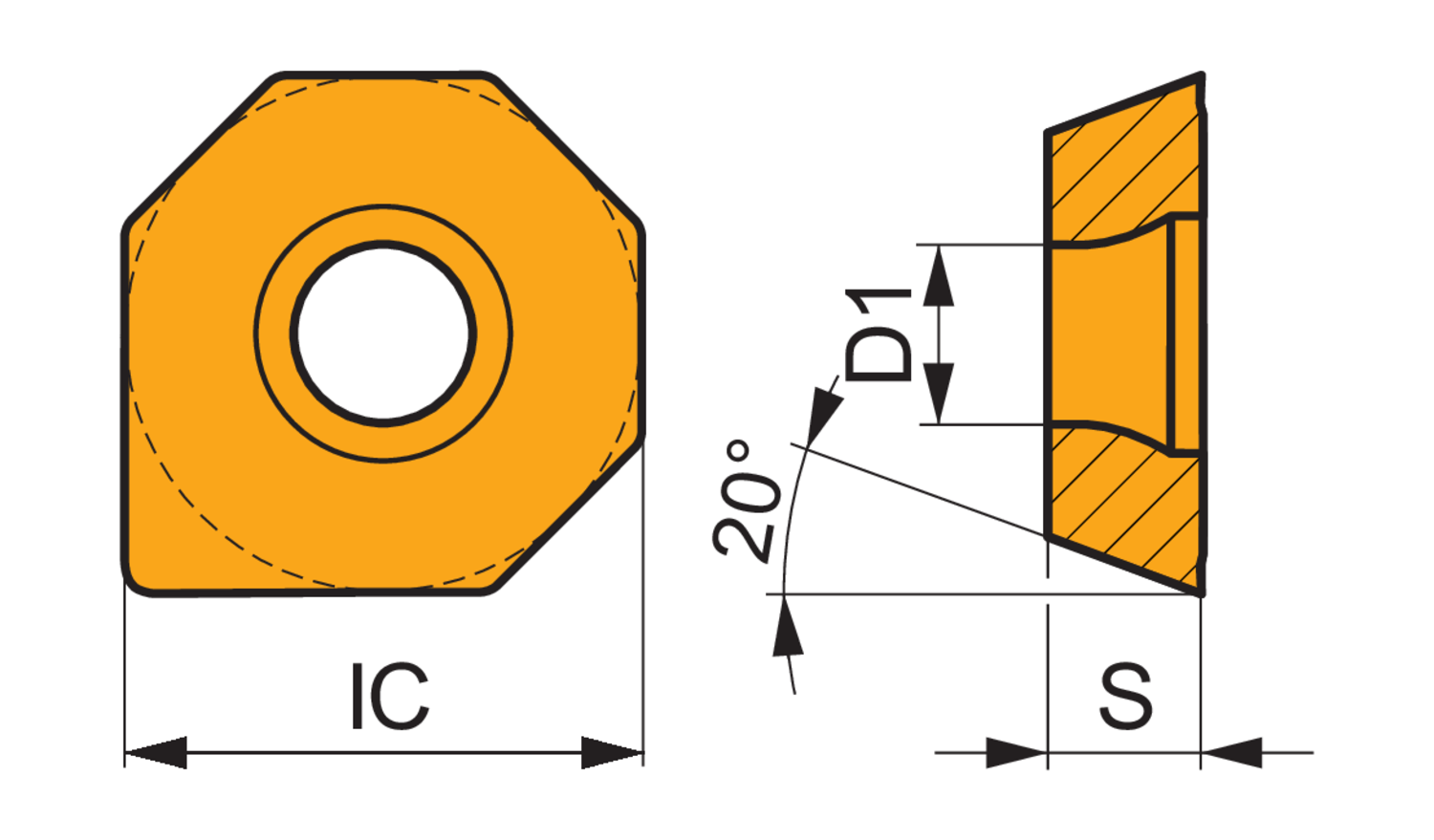

Fixing hole diameter - inch (D1)
0.217
Fixing hole diameter - millimeter (D1)
5.5
Inscribed circle diameter - inch (IC)
0.632
Inscribed circle diameter - millimeter (IC)
16.05
Insert shape code (SC)
X - Special design
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.76
Single-sided milling insert XEHT 0604 with chip-breakers, special shape and wiper design for a maximum depth of cut of 3.3mm, with an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges and facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade range P01-P10 for machining of steel with face mills SOE06Z
