Pramet XNGX 0604ANSN:8215 negative face milling insert — XNGX 0604ANSN, wiper insert with chipbreaker, 8215 PVD coated fine grained WC-Co carbide grade for steel and cast iron, 0.413 in (10.5 mm) IC, 0.187 in (4.76 mm) thick, 0.118 in max depth of cut. Article 6753708.

Chipbreaker

Wiper insert with chipbreaker - no designation

Coating

8215

Coating process

PVD

Coating property (CTP)

1

Cooling effect

Slightly negative effect on tool life

Depth of cut maximum - inch (APMX)

0.118

Depth of cut maximum - millimeter (APMX)

3

Depth of cut minimum - inch (APMN)

0.028

Depth of cut minimum - millimeter (APMN)

0.7

Feed maximal - millimeter

0.25

Feed minimal - millimeter

0.13

Feed_MAX_IMP_NUM

0.01

Feed_MIN_IMP_NUM

0.005

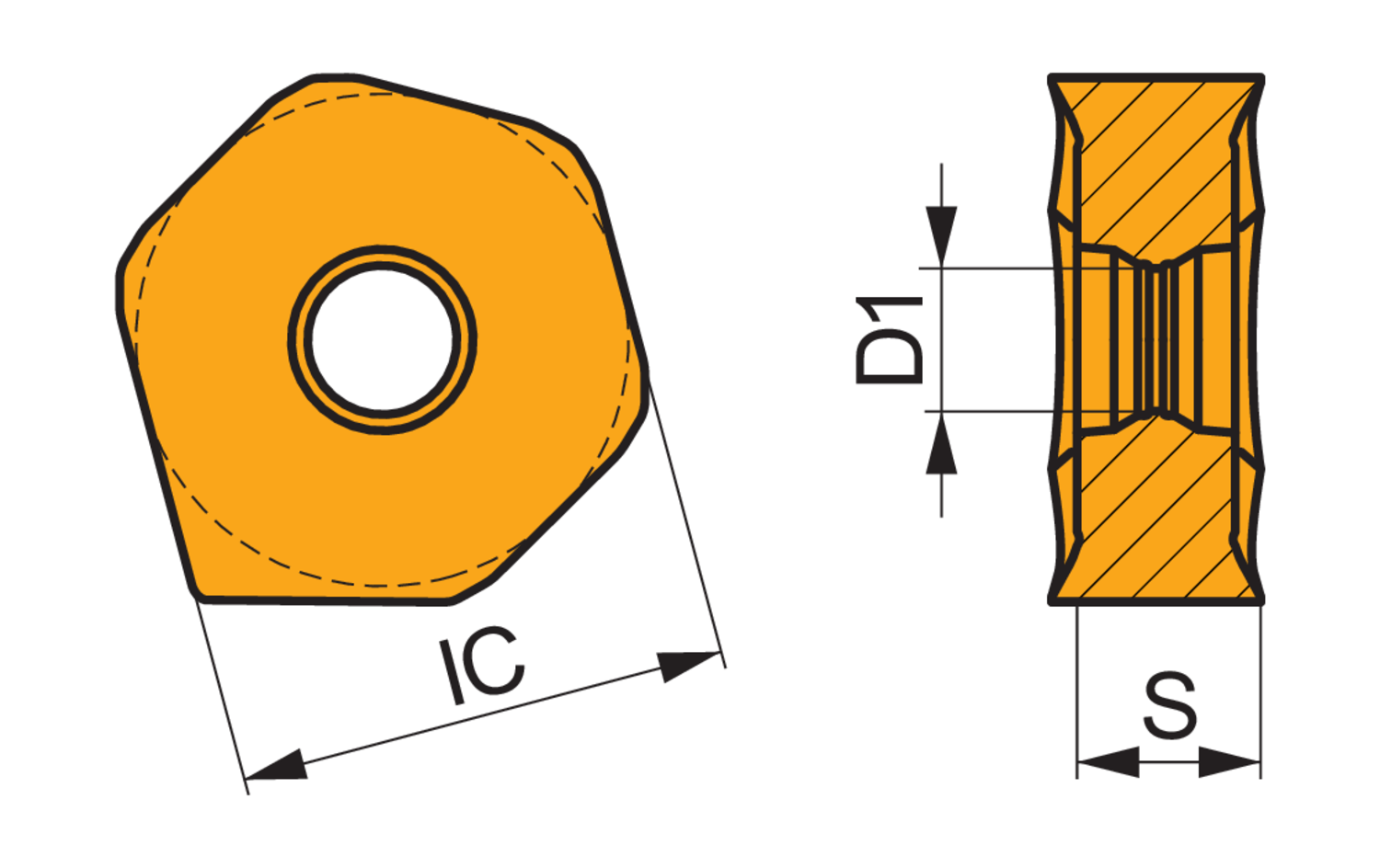

Fixing hole diameter - inch (D1)

0.146

Fixing hole diameter - millimeter (D1)

3.7

Inscribed circle diameter - inch (IC)

0.413

Inscribed circle diameter - millimeter (IC)

10.5

Insert shape code (SC)

X - Special design

Insert thickness - inch (S)

0.187

Insert thickness - millimeter (S)

4.76
