Pramet XPHT 160412S:M8340 positive chamfering milling insert — XPHT 160412S, 11° clearance, 4.76 mm thick, 1.2 mm corner radius, M8340 PVD grade for steel and stainless steel. Article 6803614.

Chipbreaker

With chipbreaker -no designation

Coating

M8340

Coating process

PVD

Coating property (CTP)

1

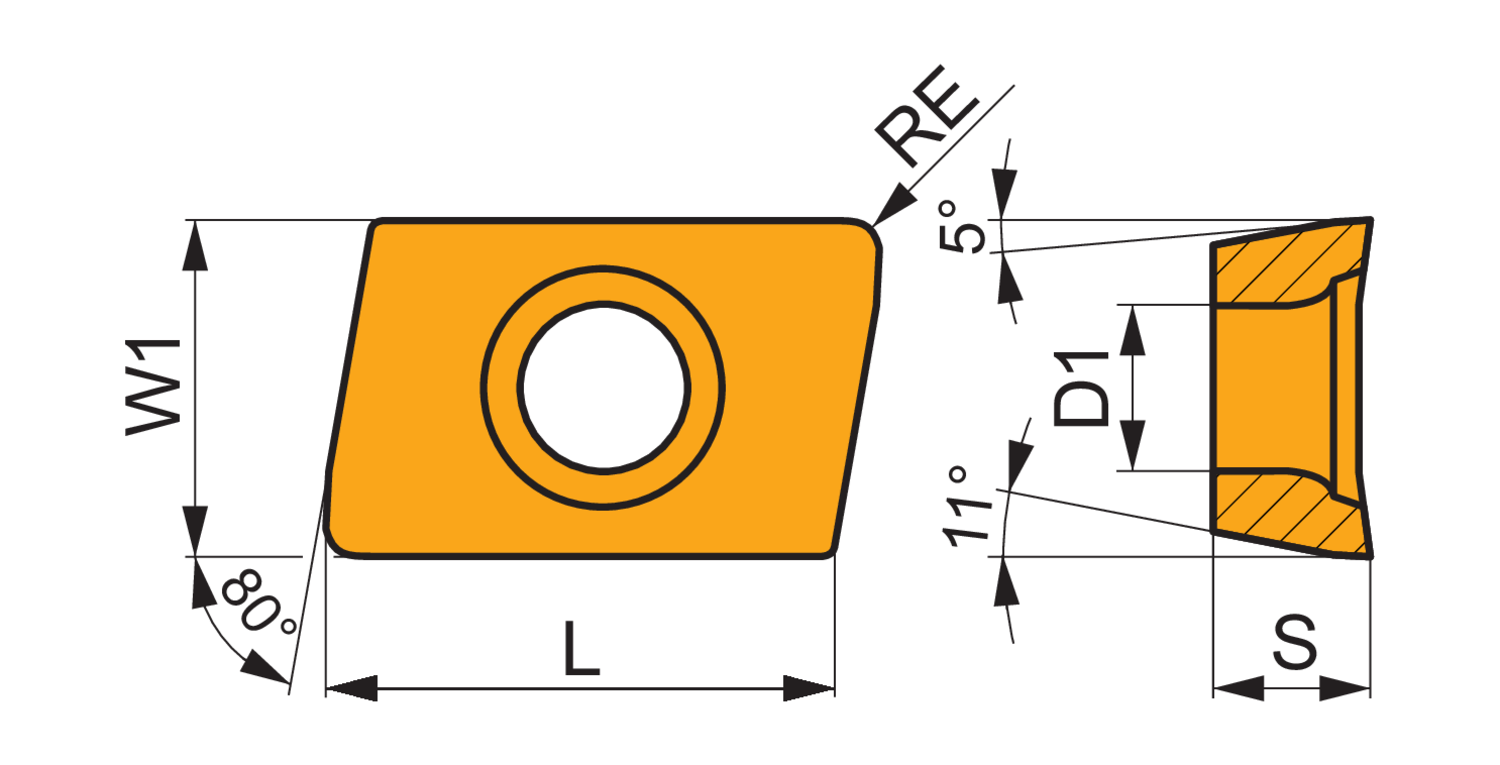

Corner radius - inch (RE)

0.047

Corner radius - millimeter (RE)

1.2

Cutting edge length - inch (L)

0.625

Cutting edge length - millimeter (L)

15.88

Depth of cut maximum - inch (APMX)

0.591

Depth of cut maximum - millimeter (APMX)

15

Depth of cut minimum - inch (APMN)

0.047

Depth of cut minimum - millimeter (APMN)

1.2

Feed maximal - millimeter

0.3

Feed minimal - millimeter

0.1

Feed_MAX_IMP_NUM

0.012

Feed_MIN_IMP_NUM

0.004

Fixing hole diameter - inch (D1)

0.173

Fixing hole diameter - millimeter (D1)

4.4

Insert shape code (SC)

X - Special design

Insert thickness - inch (S)

0.187

Insert thickness - millimeter (S)

4.76

Insert width - inch (W1)

0.375

Insert width - millimeter (W1)

9.525
