Pramet ANHX 10T320SR-F:M8330 negative high feed milling insert — 85° parallelogram, 0.079 in corner radius, 0.118 in max depth of cut, F chipbreaker, M8330 PVD coated fine grained WC-Co carbide for steel high feed milling. Article 7452020.

Chipbreaker

F

Coating

M8330

Coating process

PVD

Coating property (CTP)

1

Cooling effect

Slightly negative effect on tool life

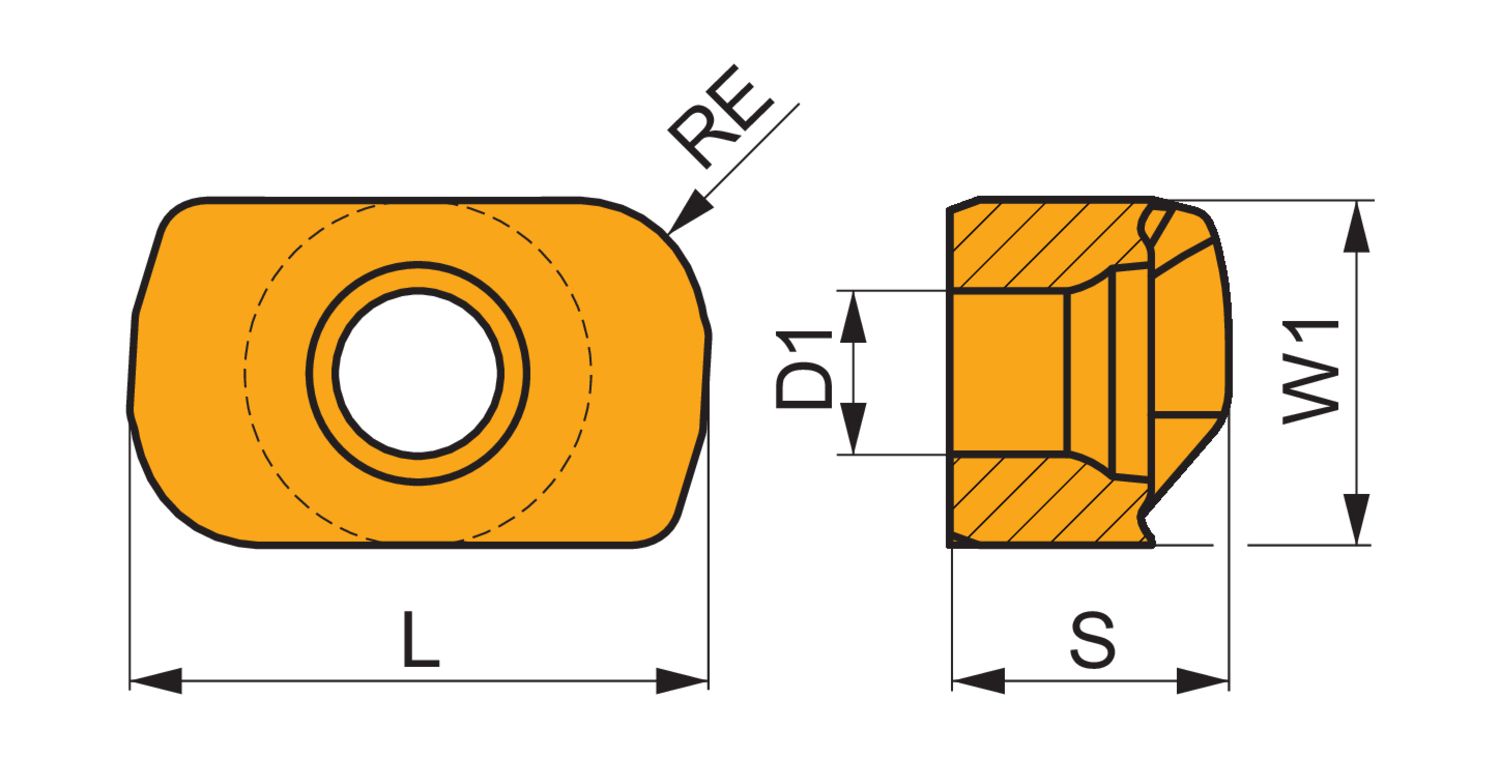

Corner radius - inch (RE)

0.079

Corner radius - millimeter (RE)

2

Cutting edge length - inch (L)

0.383

Cutting edge length - millimeter (L)

9.72

Depth of cut maximum - inch (APMX)

0.118

Depth of cut maximum - millimeter (APMX)

3

Feed maximal - millimeter

0.15

Feed minimal - millimeter

0.05

Feed_MAX_IMP_NUM

0.006

Feed_MIN_IMP_NUM

0.002

Fixing hole diameter - inch (D1)

0.109

Fixing hole diameter - millimeter (D1)

2.76

Insert shape code (SC)

A - parallelogram 85° included angle

Insert thickness - inch (S)

0.185

Insert thickness - millimeter (S)

4.7

Insert width - inch (W1)

0.228

Insert width - millimeter (W1)

5.8
