Pramet PDKX 0905ZEER-FM:M8345 positive high feed milling insert — PDKX 0905ZEER, FM finishing-medium chipbreaker, M8345 PVD grade, 0.531 in (13.5 mm) IC, 0.215 in (5.47 mm) thick, 0.079 in (2 mm) max depth of cut. Article 6756072.
MODEL 6756072
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$24.55 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
FM
Coating
M8345
Coating process
PVD
Coating property (CTP)
1

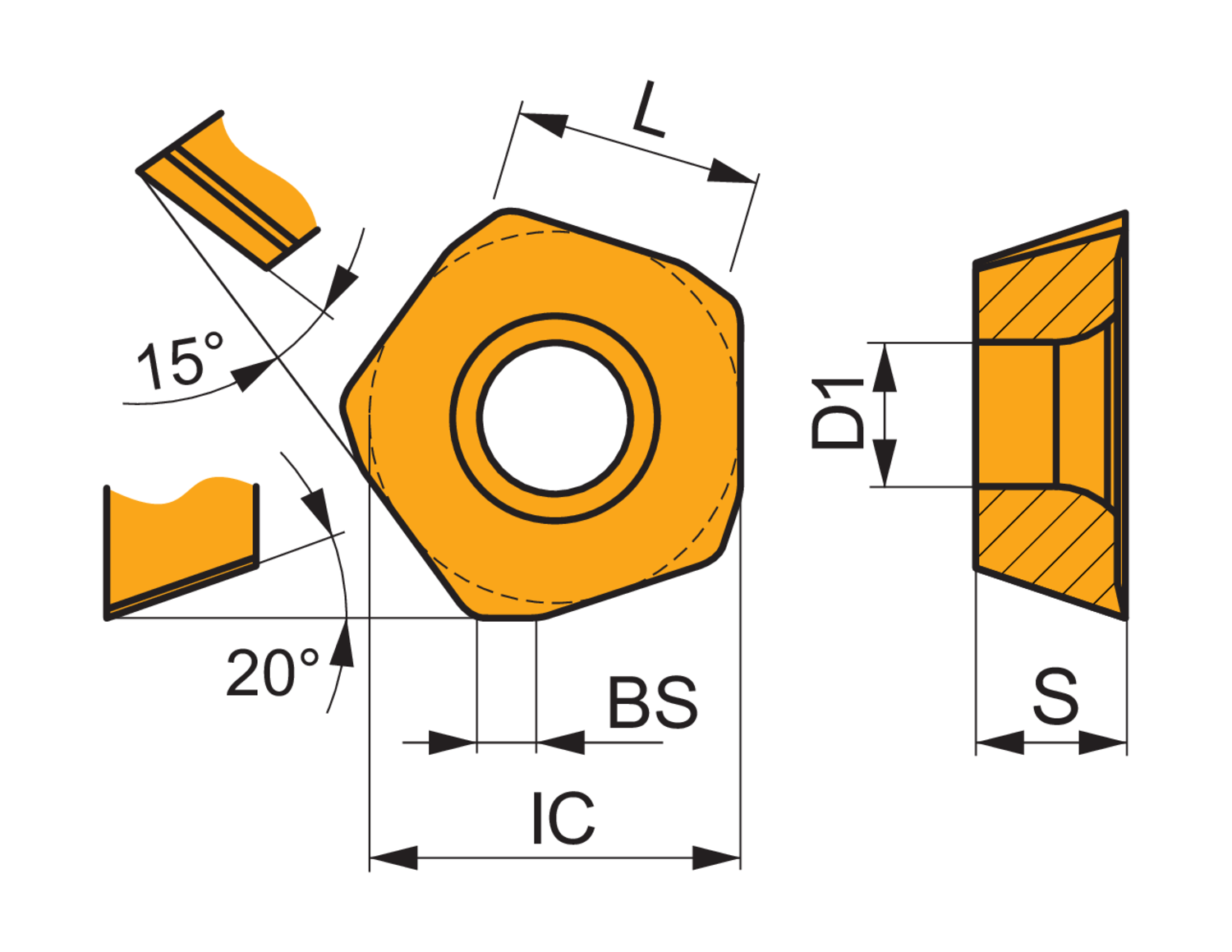

Cutting edge length - inch (L)
0.354
Cutting edge length - millimeter (L)
9
Depth of cut maximum - inch (APMX)
0.079
Depth of cut maximum - millimeter (APMX)
2
Feed maximal - millimeter
2.5
Feed minimal - millimeter
0.5
Feed_MAX_IMP_NUM
0.098
Feed_MIN_IMP_NUM
0.02
Fixing hole diameter - inch (D1)
0.217
Fixing hole diameter - millimeter (D1)
5.5
Inscribed circle diameter - inch (IC)
0.531
Inscribed circle diameter - millimeter (IC)
13.5
Insert shape code (SC)
P - pentagonal
Insert thickness - inch (S)
0.215
Insert thickness - millimeter (S)
5.47
Wiper edge length - inch (BS)
0.079
Wiper edge length - millimeter (BS)
2
Single-sided milling insert PDKX 0905, pentagonal for a maximum depth of cut of 2.0mm, with an indexing accuracy according to ISO-tolerance class-K and FM geometry with rounded cutting edges, M8345 PVD coated WC-Co carbide within ISO-grade ranges P30-P50 and M30-M40 for machining of steel and stainless-steel with high feed cutters SPD09
