Pramet SNGX 110416SR-MM:M8345 negative high feed milling insert — SNGX 110416 (square, 0° clearance, precision ground), MM medium chipbreaker, M8345 PVD coated grade for steel, stainless steel, and high-temperature alloys. 0.417 in (10.6 mm) IC, 0.187 in (4.76 mm) thick, 1.6 mm corner radius. Article 7799796.
MODEL 7799796
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$19.39 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
MM
Coating
M8345
Coating process
PVD
Coating property (CTP)
1

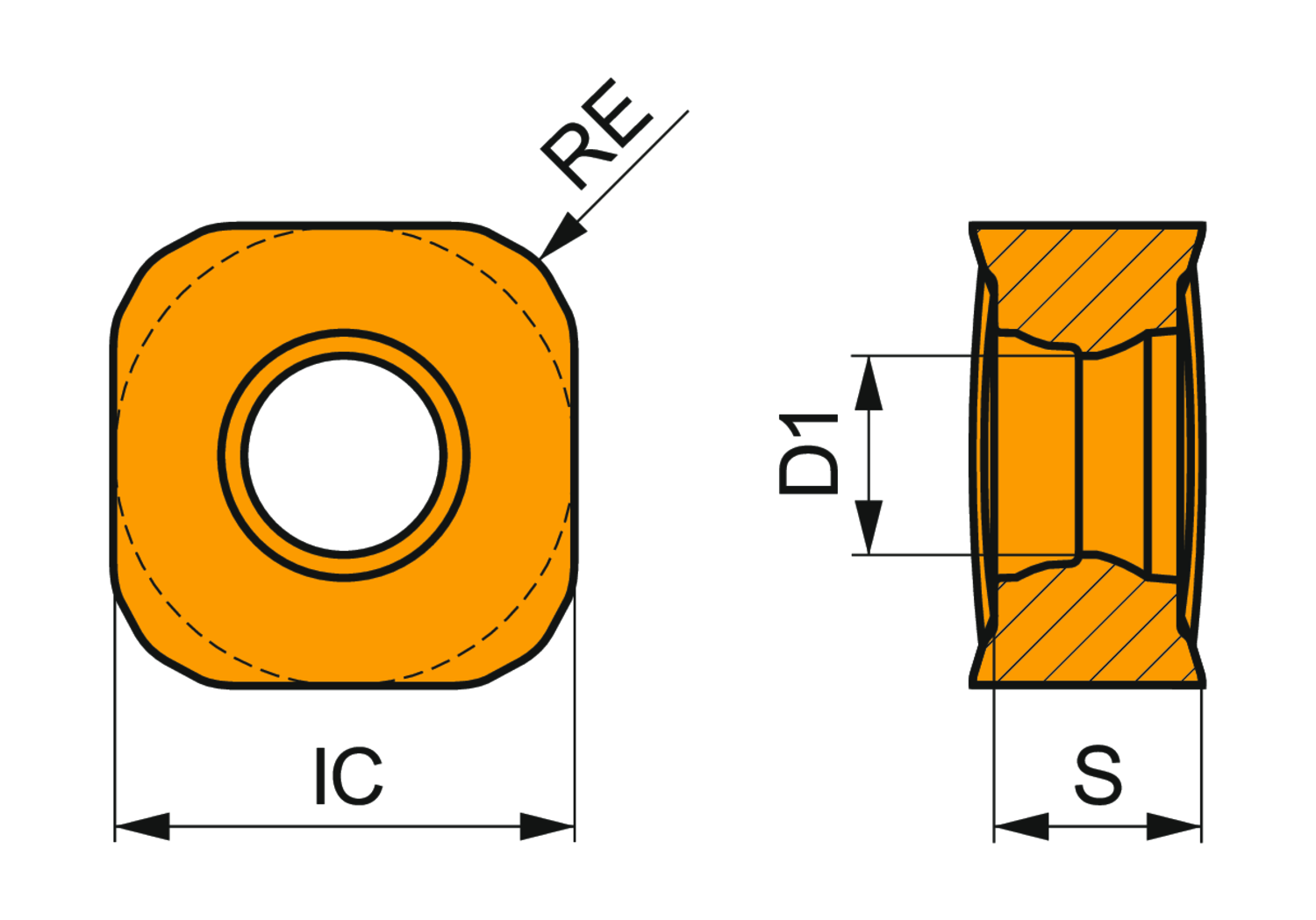

Corner radius - inch (RE)
0.063
Corner radius - millimeter (RE)
1.6
Fixing hole diameter - inch (D1)
0.18
Fixing hole diameter - millimeter (D1)
4.56
Inscribed circle diameter - inch (IC)
0.417
Inscribed circle diameter - millimeter (IC)
10.6
Insert shape code (SC)
S - square
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.76
Double-sided milling insert SNGX 1104, square for a maximum depth of cut of 1.7mm, with 1.6mm corner radius, an indexing accuracy according to ISO-tolerance class-G and MM geometry with rounded cutting edges and facet, M8345 PVD coated WC-Co carbide within ISO-grade ranges M30-M40 and S20-S30 for machining of stainless-steel and superalloy with high feed cutters SSN11
