Pramet ZDCW 070304:M8345 positive high feed milling insert — ZDCW 070304, M8345 PVD coated WC-Co carbide grade for steel high feed cutting, 0.268 in (6.8 mm) IC, 0.125 in (3.18 mm) thick, 0.016 in (0.4 mm) corner radius, 0.039 in (1 mm) max depth of cut. Article 6755968.
MODEL 6755968
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$11.15 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
M8345
Coating process
PVD
Coating property (CTP)
1

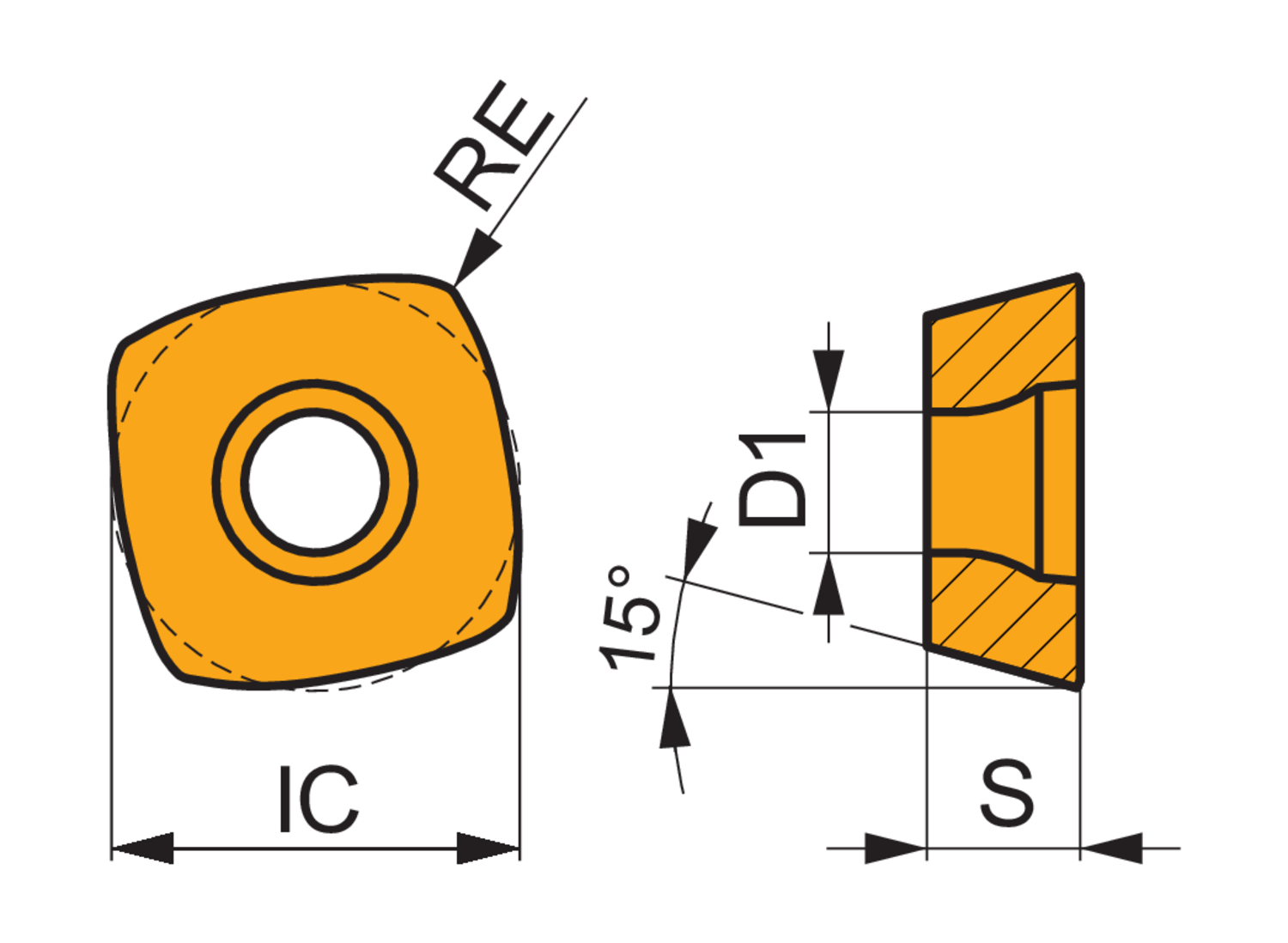

Corner radius - inch (RE)
0.016
Corner radius - millimeter (RE)
0.4
Cutting edge length - inch (L)
0.268
Cutting edge length - millimeter (L)
6.8
Depth of cut maximum - inch (APMX)
0.039
Depth of cut maximum - millimeter (APMX)
1
Feed maximal - millimeter
1.5
Feed minimal - millimeter
0.15
Feed_MAX_IMP_NUM
0.059
Feed_MIN_IMP_NUM
0.006
Fixing hole diameter - inch (D1)
0.102
Fixing hole diameter - millimeter (D1)
2.6
Inscribed circle diameter - inch (IC)
0.268
Inscribed circle diameter - millimeter (IC)
6.8
Insert shape code (SC)
X - Special design
Insert thickness - inch (S)
0.125
Insert thickness - millimeter (S)
3.18
Single-sided milling insert ZDCW 0703 with a plane rake surface, special shape for a maximum depth of cut of 1.0mm, with 0.4mm corner radius, an indexing accuracy according to ISO-tolerance class-C, M8345 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with high feed cutters SZD07
