Pramet ZDEW 120408:M8345 6755970 Milling Insert - High Feed
MODEL 6755970
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$14.94 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
M8345
Coating process
PVD
Coating property (CTP)
1
Corner radius - inch (RE)
0.031
Corner radius - millimeter (RE)
0.8
Cutting edge length - inch (L)
0.5
Cutting edge length - millimeter (L)
12.7
Depth of cut maximum - inch (APMX)
0.063
Depth of cut maximum - millimeter (APMX)
1.6
Feed maximal - millimeter
3
Feed minimal - millimeter
0.5
Feed_MAX_IMP_NUM
0.118
Feed_MIN_IMP_NUM
0.02

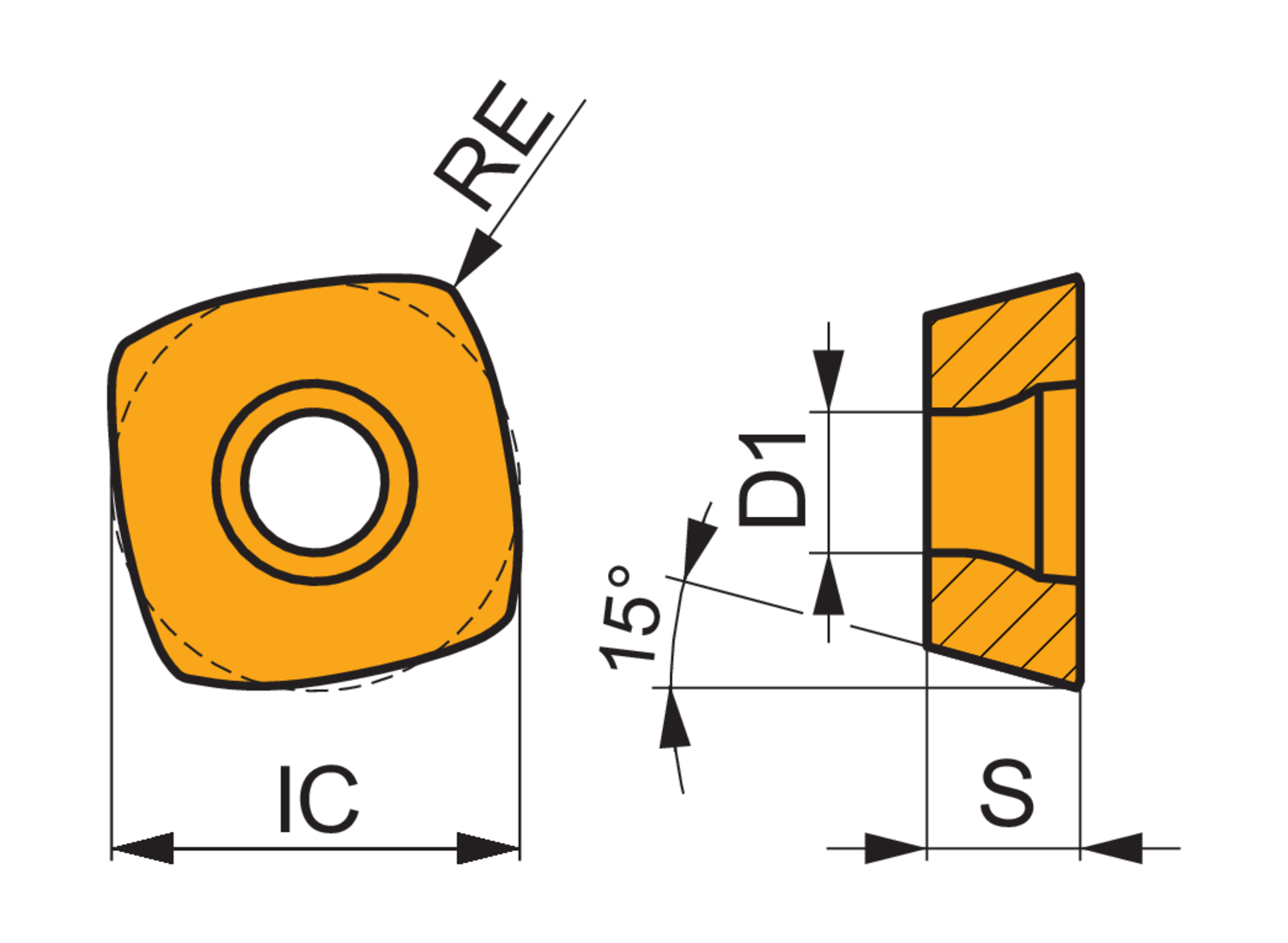

Fixing hole diameter - inch (D1)
0.173
Fixing hole diameter - millimeter (D1)
4.4
Inscribed circle diameter - inch (IC)
0.5
Inscribed circle diameter - millimeter (IC)
12.7
Insert shape code (SC)
X - Special design
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.76
Single-sided milling insert ZDEW 1204 with a plane rake surface, special shape and high-feed design for a maximum depth of cut of 1.6mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-E, M8345 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with high feed cutters SZD12
