Image for Illustration purposes only. Actual product may vary
Pramet SDGX 120508EN-FM:M8345 6756068 Milling Insert - Square Shoulder
MODEL 6756068
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$17.32 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Coating
0.006
Coating process
0.003
Coating property (CTP)
1
Cooling effect
FM
Corner radius - inch (RE)
M8345
Corner radius - millimeter (RE)
PVD
Cutting edge effective length - inch (LE)
0.5
Cutting edge effective length - millimeter (LE)
12.7
Cutting edge length - inch (L)
0.5
Cutting edge length - millimeter (L)
12.7
Depth of cut maximum - inch (APMX)
0.472
Depth of cut maximum - millimeter (APMX)
12
Feed maximal - millimeter
0.15
Feed minimal - millimeter
0.07
Feed_MAX_IMP_NUM
0.039
Feed_MIN_IMP_NUM
1

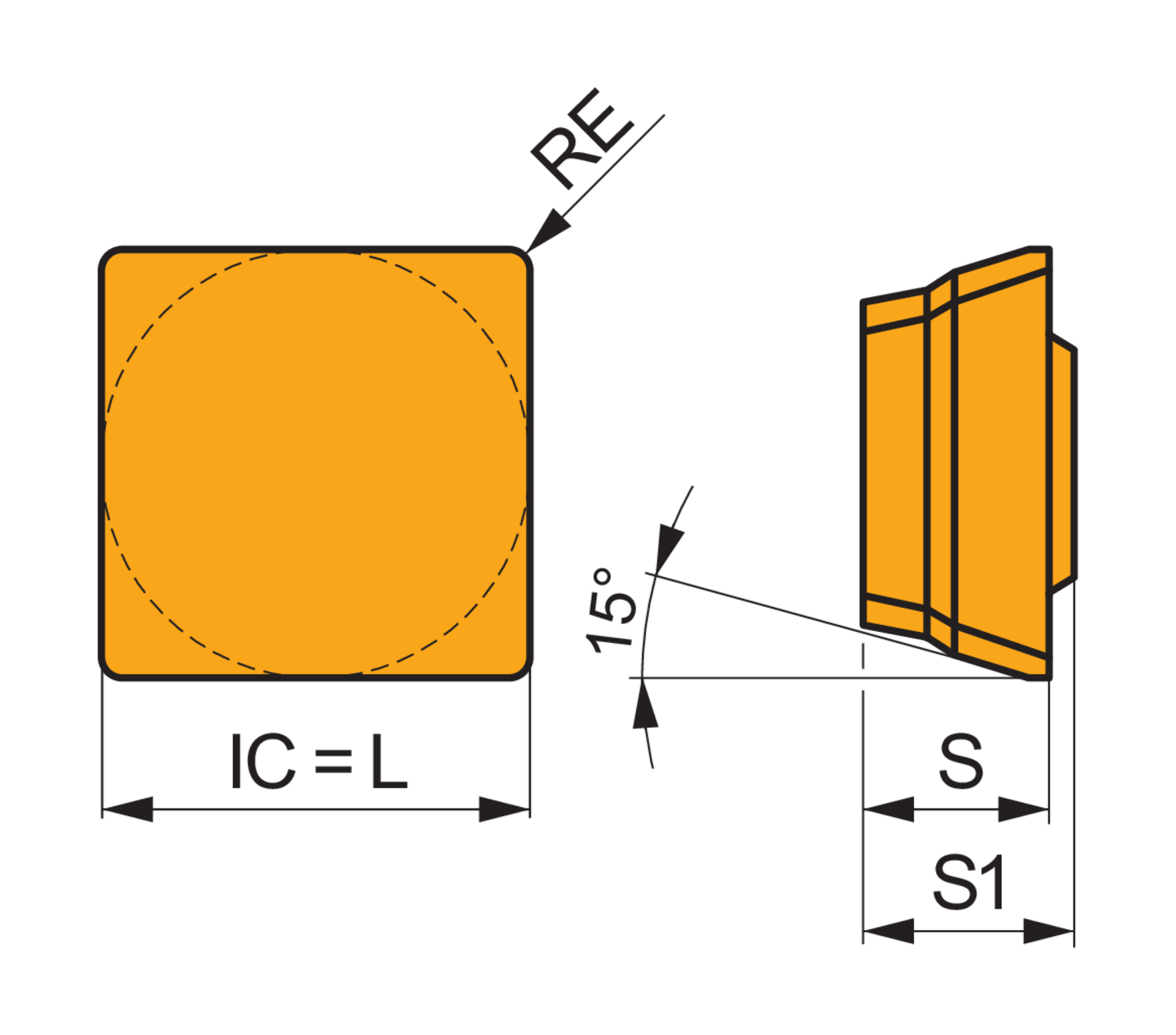

Inscribed circle diameter - inch (IC)
0.5
Inscribed circle diameter - millimeter (IC)
12.7
Insert cutting diameter - millimeter (CDI)
5.56
Insert length - inch (INSL)
6.35
Insert shape code (SC)
S - square
Insert thickness - inch (S)
0.8
Insert thickness - millimeter (S)
5.56
Insert thickness total - inch (S1)
0.25
Insert thickness total - millimeter (S1)
6.35
Insert width - millimeter (W1)
0.25
Major cutting edge angle (KRINS)
0.031
Single-sided milling insert SDGX 1205, square for a maximum depth of cut of 12.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-G and FM geometry with rounded cutting edges, M8345 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with shoulder mills with extended flute J(T)-CSD12X
