Pramet 075E2R400W100-ISRD10-CF 7999185 End Milling Cutter - Copy And Profile
MODEL 7999185
$185.08 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

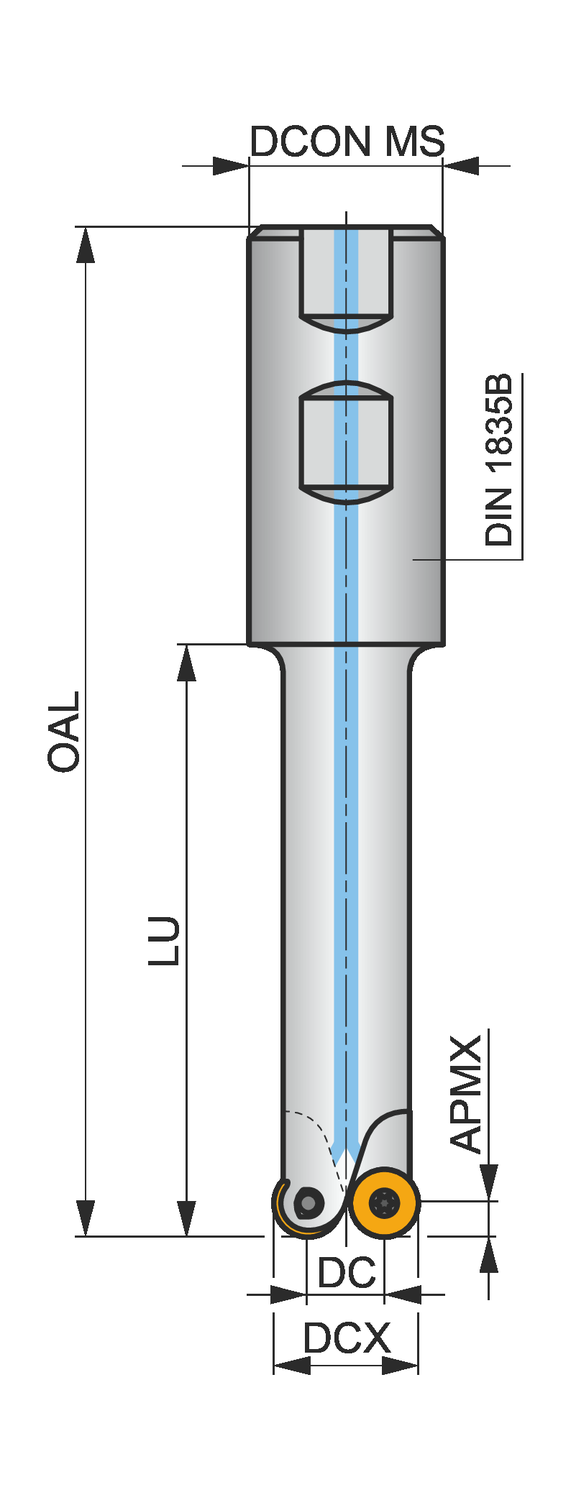

Axial rake angle (GAMP)
0
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1
Connection diameter - millimeter (DCON MS)
25.4
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.357
Cutting diameter maximum - inch (DCX)
0.75
Cutting diameter maximum - millimeter (DCX)
19.1
Cutting pitch differential (CPDF)
0
Depth of cut maximum - inch (APMX)
0.098
Hand (Cutting direction)
Right
Overall length - inch (OAL)
6.024
Overall length - millimeter (OAL)
153
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
1
Rotational speed maximum (RPMX)
30800
Shank
Weldon shank DIN 1835B
Usable Length - inch (LU)
4
Copy face mill with positve/negative geometry which utilises 2 of RD.. 1003MOT or RDHT 1003MO-FA single-sided inserts, cutting diameter to maximum 0.750" with 1.000" Weldon shank according to DIN 1835B, 4.000" usable and 6.024" overall length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 0.098"
