Pramet 100A07R-SCMORD16-CF 7999357 Shell Milling Cutter - Copy And Profile
MODEL 7999357
$639.55 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

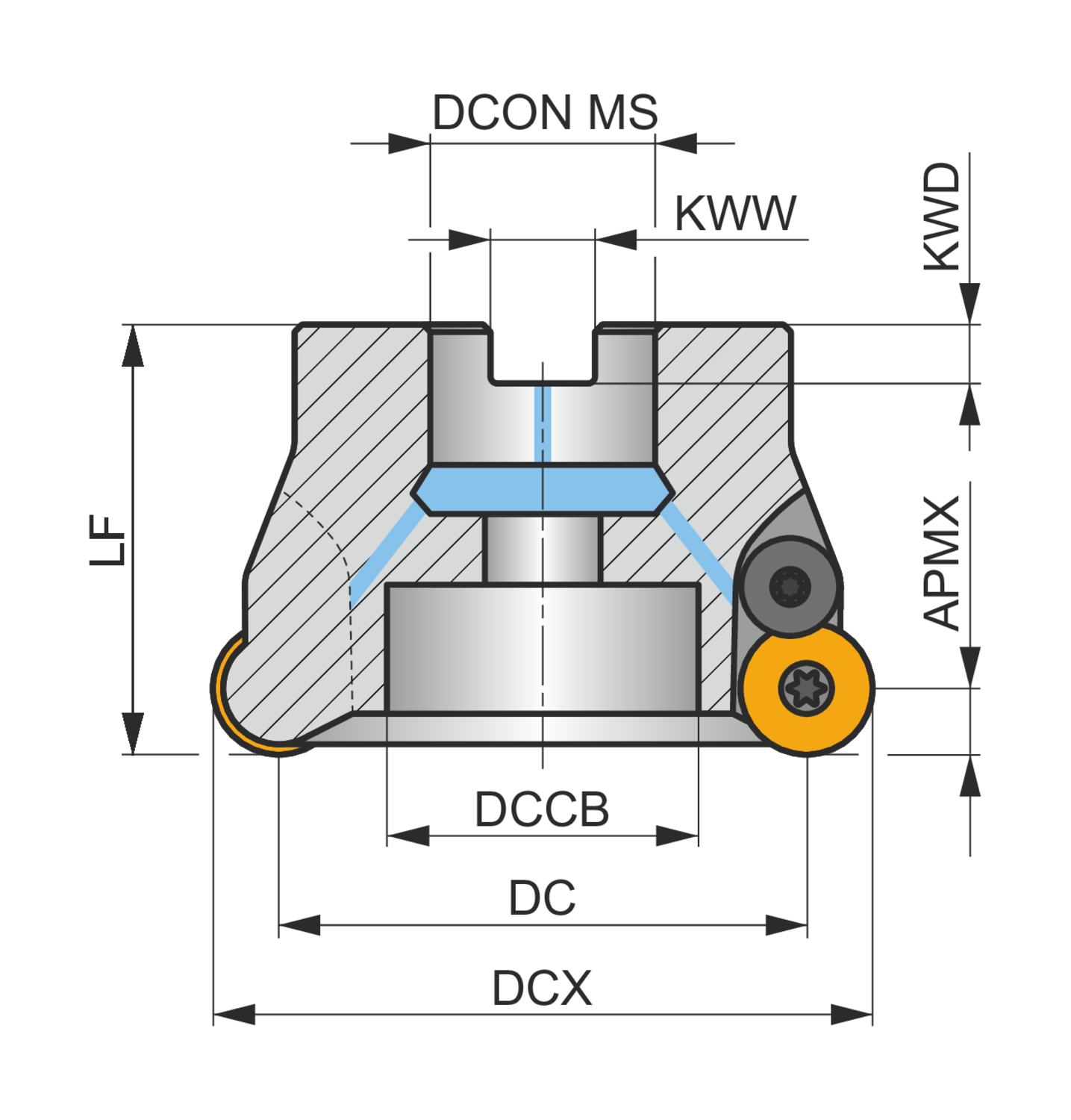

Axial rake angle (GAMP)
7
Clamping Type Code (MTP)
System SC
Connection diameter - inch (DCON MS)
1.26
Connection diameter - millimeter (DCON MS)
32
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
1.772
Counterbore diameter connection bore - millimeter (DCCB)
45
Cutting diameter - inch (DC)
3.307
Cutting diameter - millimeter (DC)
84
Cutting diameter maximum - inch (DCX)
3.937
Cutting diameter maximum - millimeter (DCX)
100
Cutting pitch differential (CPDF)
0
Depth of cut maximum - millimeter (APMX)
4
Functional length - millimeter (LF)
52
Hand (Cutting direction)
Right
Insert index count (NOI)
7
Keyway depth - millimeter (KWD)
14.4
Keyway width - millimeter (KWW)
14.4
Peripheral effective cutting edge count (ZEFP)
7
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
7100
Shank
Shell mill DIN 8030 A
Copy face mill with positve/negative geometry which utilises 7 of RD.. 1604MOT or RDHT 1604MO-FA single-sided inserts, cutting diameter to maximum 100mm with 32mm connection bore according to DIN 8030-A, 52mm functional and, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 4mm
