Pramet 100E2R134C075-ISRC10-C 7455328 End Milling Cutter - Copy And Profile
MODEL 7455328
$269.39 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

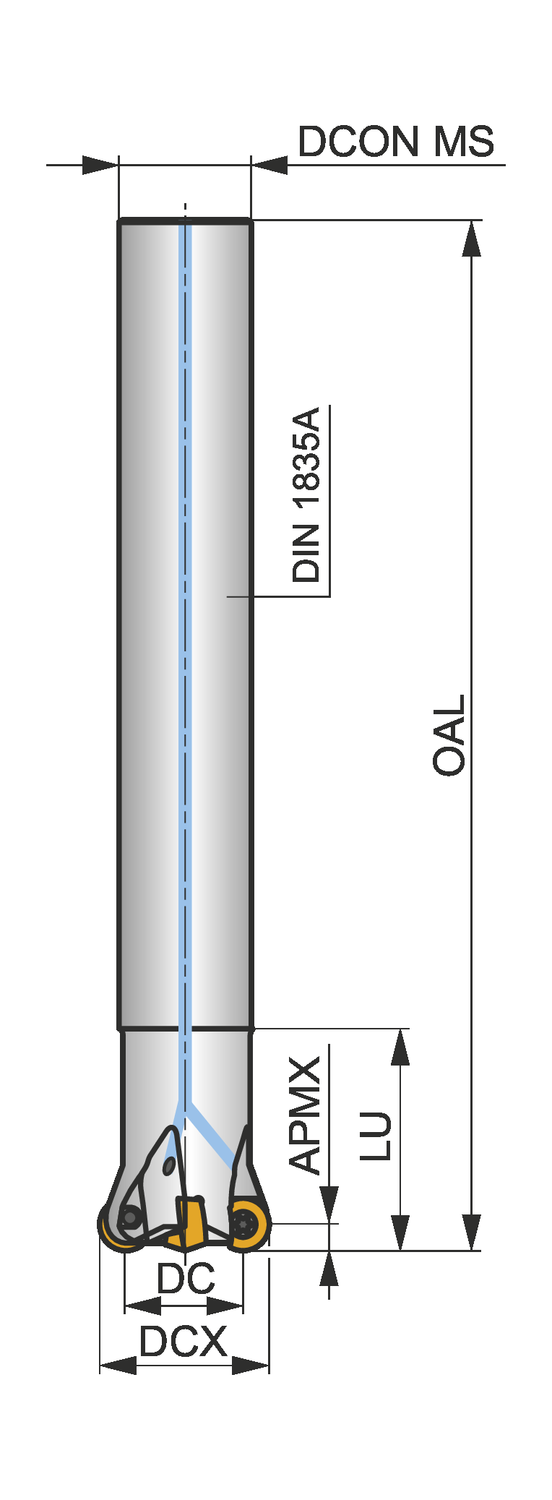

Axial rake angle (GAMP)
-7
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.75
Connection diameter - millimeter (DCON MS)
19.1
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.606
Cutting diameter - millimeter (DC)
15.4
Cutting diameter maximum - inch (DCX)
1
Cutting diameter maximum - millimeter (DCX)
25.4
Hand (Cutting direction)
Right
Overall length - inch (OAL)
6.7
Overall length - millimeter (OAL)
170
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-3
Rotational speed maximum (RPMX)
20900
Shank
Cylindrical shank DIN 1835A
Usable Length - inch (LU)
1.339
Copy face mill with double negative geometry which utilises 2 off RCMT 10T3MO.. single-sided inserts, cutting diameter 1.000'' with .750'' parallel shank according to DIN 1835A, 6.700'' overall length, through coolant for face milling, copy milling, ramping, helical milling and plunge milling with a maximum depth of cut of .197''
