Pramet 10E2R020M06-SRD05-CF 7999277 Modular Head For Copy And Profile Milling
MODEL 7999277
$200.50 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

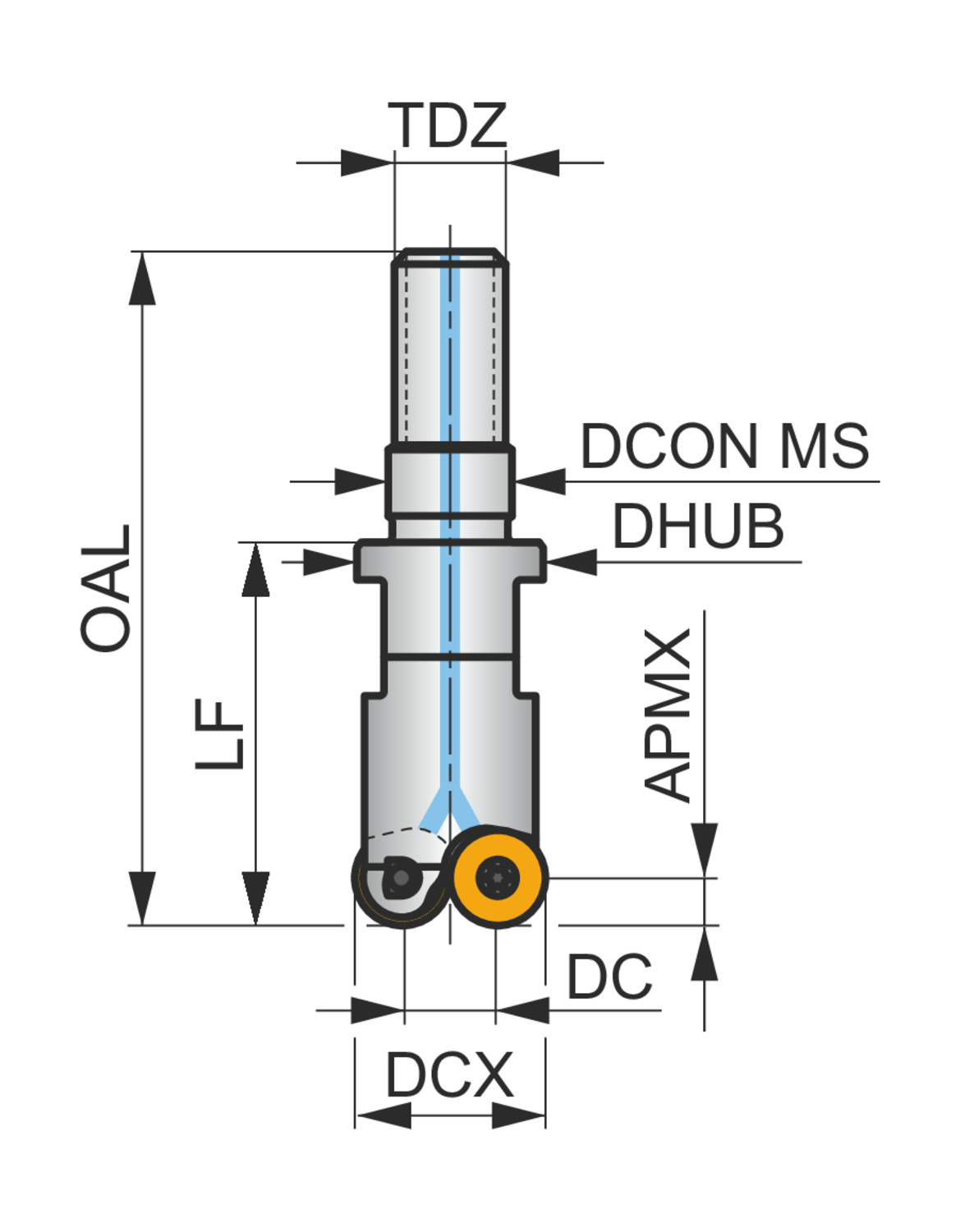

Axial rake angle (GAMP)
3
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.256
Connection diameter - millimeter (DCON MS)
6.5
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.197
Cutting diameter - millimeter (DC)
5
Cutting diameter maximum - inch (DCX)
0.394
Cutting diameter maximum - millimeter (DCX)
10
Depth of cut maximum - millimeter (APMX)
1.5
Functional length - millimeter (LF)
20
Hand (Cutting direction)
Right
Hub diameter - millimeter (DHUB)
9.8
Insert index count (NOI)
2
Overall length - inch (OAL)
1.378
Overall length - millimeter (OAL)
35
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
5
Rotational speed maximum (RPMX)
89300
Shank
Threaded coupling
Thread diameter size (TDZ)
M6
Copy face mill with double positive geometry which utilises 2 of RD.. 0501MO.. single-sided inserts, cutting diameter to maximum 10mm with M6 threaded shank for standard modular tool-holders, 20mm functional and 35mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 1.5mm
